Configuring IPv4 IMPB Configuration Examples
5
Configuration Examples
5.1 Example for ARP Detection
5.1.1 Network Requirements
As shown below, User 1 and User 2 are legal users in the LAN and connected to port 1/0/1
and port 1/0/2. Both of them are in the default VLAN 1. The router has been configured with
security feature to prevent attacks from the WAN. Now the network administrator wants to
configure Switch A to prevent ARP attacks from the LAN.

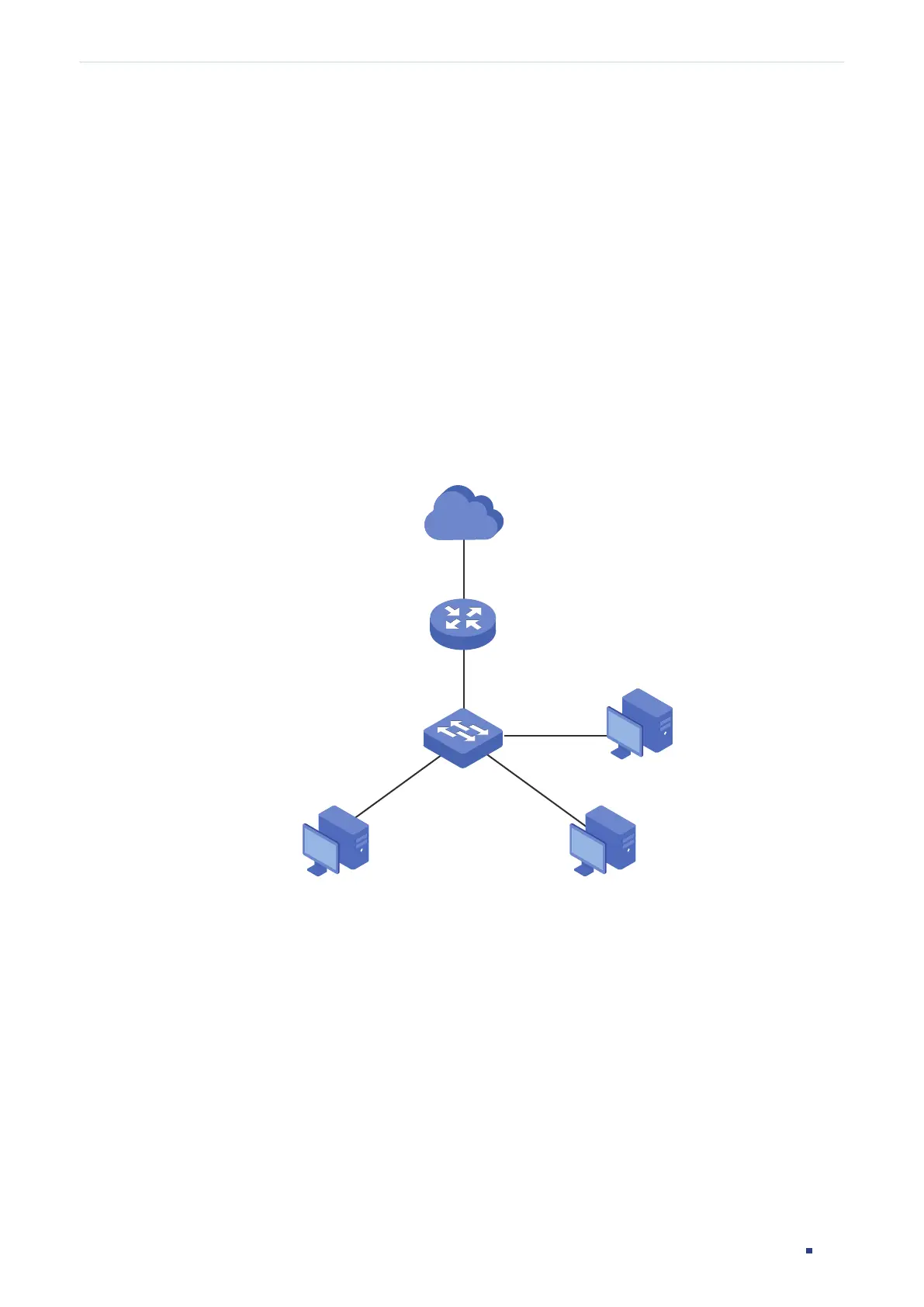

Figure 5-1 Network Topology
LAN
WAN
Fa1/0/3
Fa1/0/1 Fa1/0/2
Router
User 2
88-A9-D4-54-FD-C3
192.168.0.33/24
User 1
74-D3-45-32-B6-8D
192.168.0.31/24
Attacker
Switch A
Internet
5.1.2 Configuration Scheme
To meet the requirement, you can configure ARP Detection to prevent the network from
ARP attacks in the LAN.
The overview of configurations on the switch is as follows:
1) Configure IP-MAC Binding. The binding entries for User 1 and User 2 should be manually
bound.
2) Configure ARP Detection globally.
