Configuring Protocol VLAN Protocol VLAN Configuration
Configuration Guide
177
2.1.2 Creating Protocol Template
Choose the menu L2 FEATURES > VLAN > Protocol VLAN > Protocol Template to load
the following page.

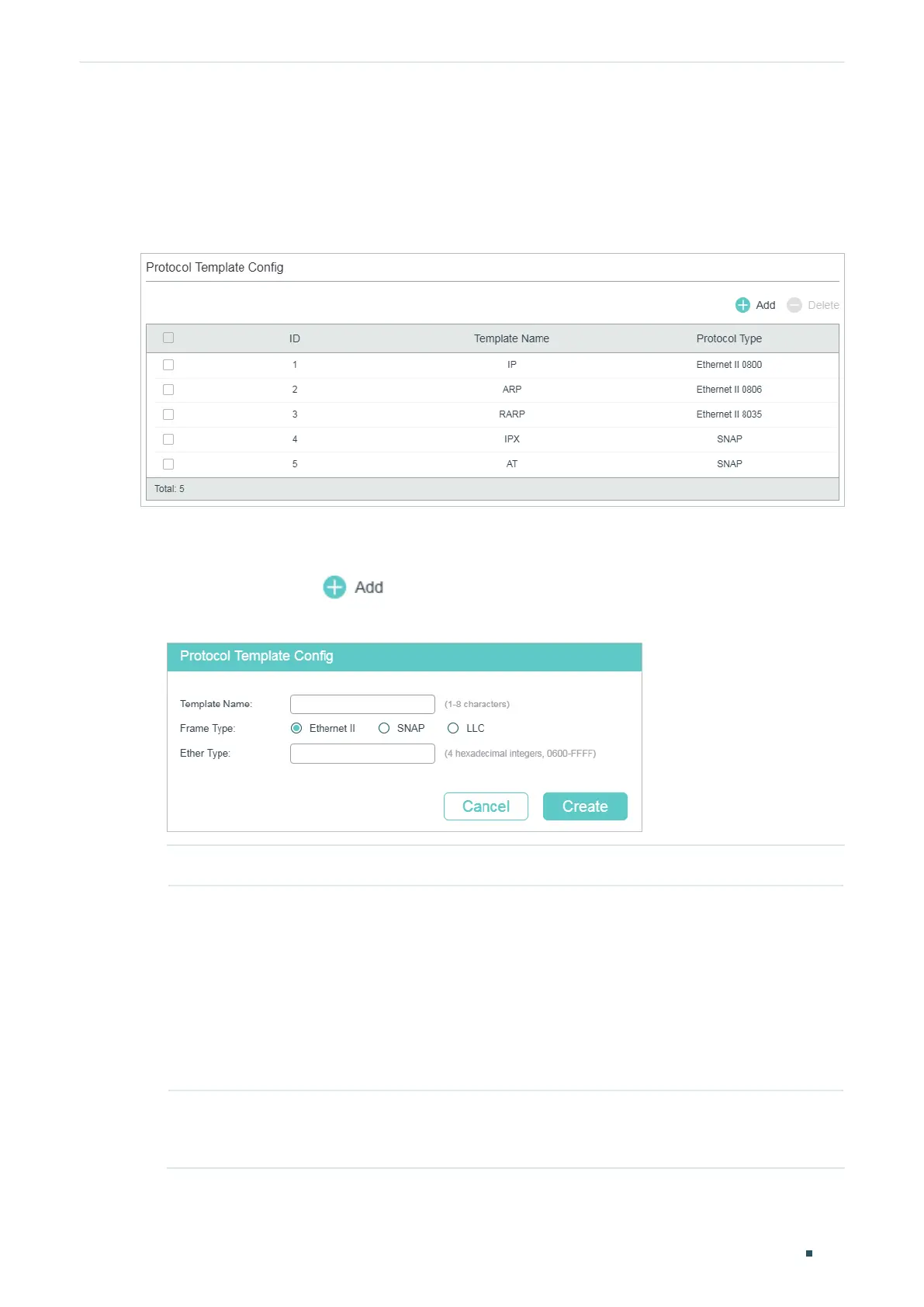

Figure 2-1 Check the Protocol Template
Follow these steps to create a protocol template:
1) Check whether your desired template already exists in the Protocol Template Config
section. If not, click
to create a new template.
Figure 2-2 Creating a Protocol Template
Template Name Give a protocol name to identify the protocol template.
Frame Type Select the frame type of the new protocol template.
Ethernet II: A common Ethernet frame format. Select to specify the Frame Type
by entering the Ether Type.
SNAP: An Ethernet 802.3 frame format based on IEEE 802.3 and IEEE 802.2 SNAP.
Select to specify the Frame Type by entering the Ether Type.
LLC: An Ethernet 802.3 frame format based on IEEE 802.3 and IEEE 802.2 LLC.
Select to specify the Frame Type by entering the DSAP and SSAP.
Ether Type Enter the Ethernet protocol type value for the protocol template. It is available
when Ethernet II and SNAP is selected. It is the Ether Type field in the frame and
is used to identify the data type of the frame.
