Configuring LAG Configuration Example
Configuration Guide
125
3.3 Using the GUI
The configurations of Switch A and Switch B are similar. The following introductions take
Switch A as an example.

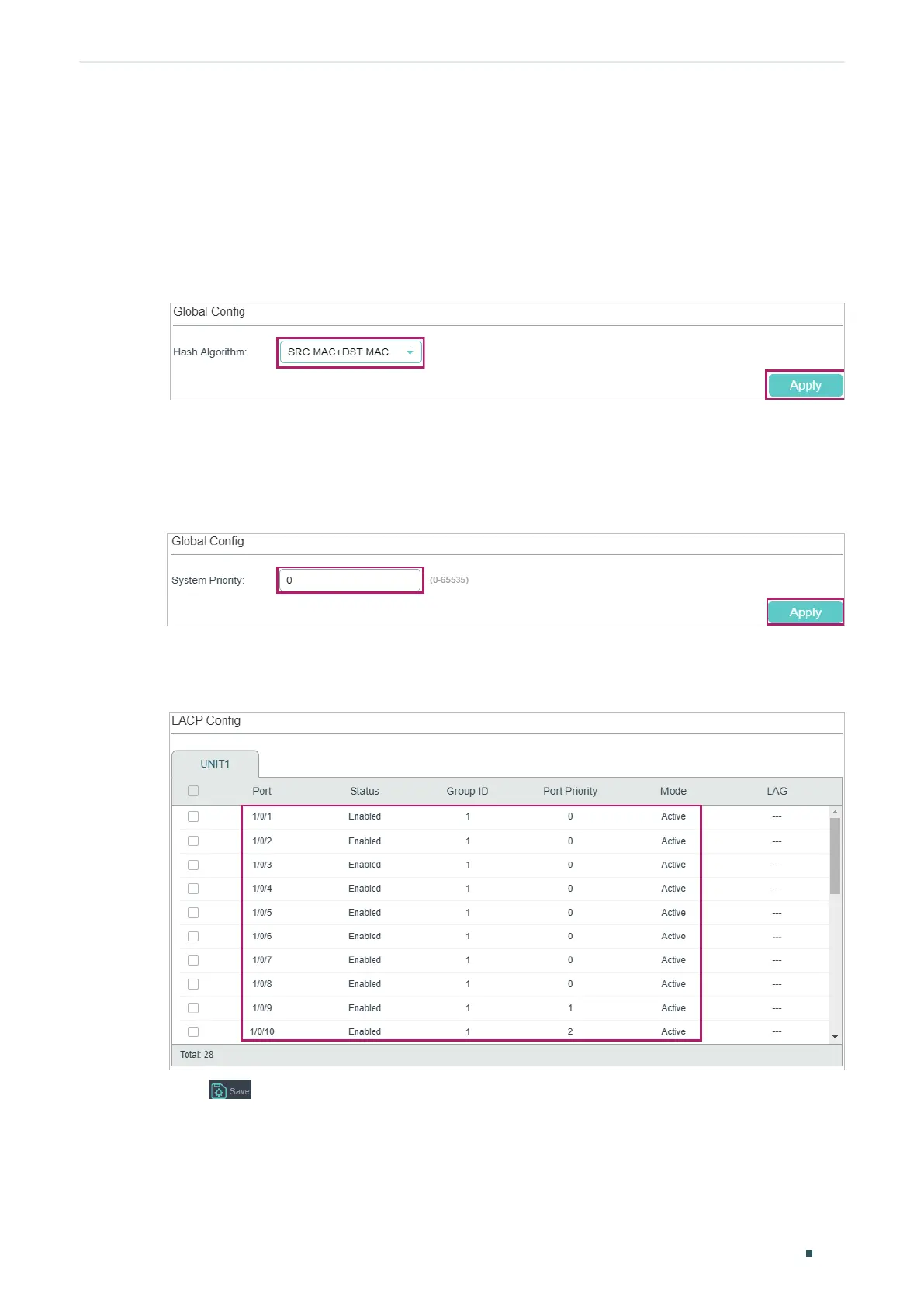

1) Choose the menu L2 FEATURES > Switching > LAG > LAG Table to load the following
page. Select the hash algorithm as ‘SRC MAC+DST MAC’.
Figure 3-2 Global Configuration
2) Choose the menu L2 FEATURES > Switching > LAG > LACP Config to load the
following page. In the Global Config section, specify the system priority of Switch A
as 0 and Click Apply. Remember to ensure that the system priority value of Switch B is
bigger than 0.
Figure 3-3 System Priority Configuration
3) In the LACP Table section, select ports 1/0/1-10, and respectively set the status, group
ID, port priority and mode for each port as follows.
Figure 3-4 LACP Configuration
4) Click to save the settings.
