Configuring 802.1Q VLAN 802.1Q VLAN Configuration
2.1.2 Configuring the VLAN
Choose the menu L2 FEATURES > VLAN > 802.1Q VLAN > VLAN Config and click
to load the following page.

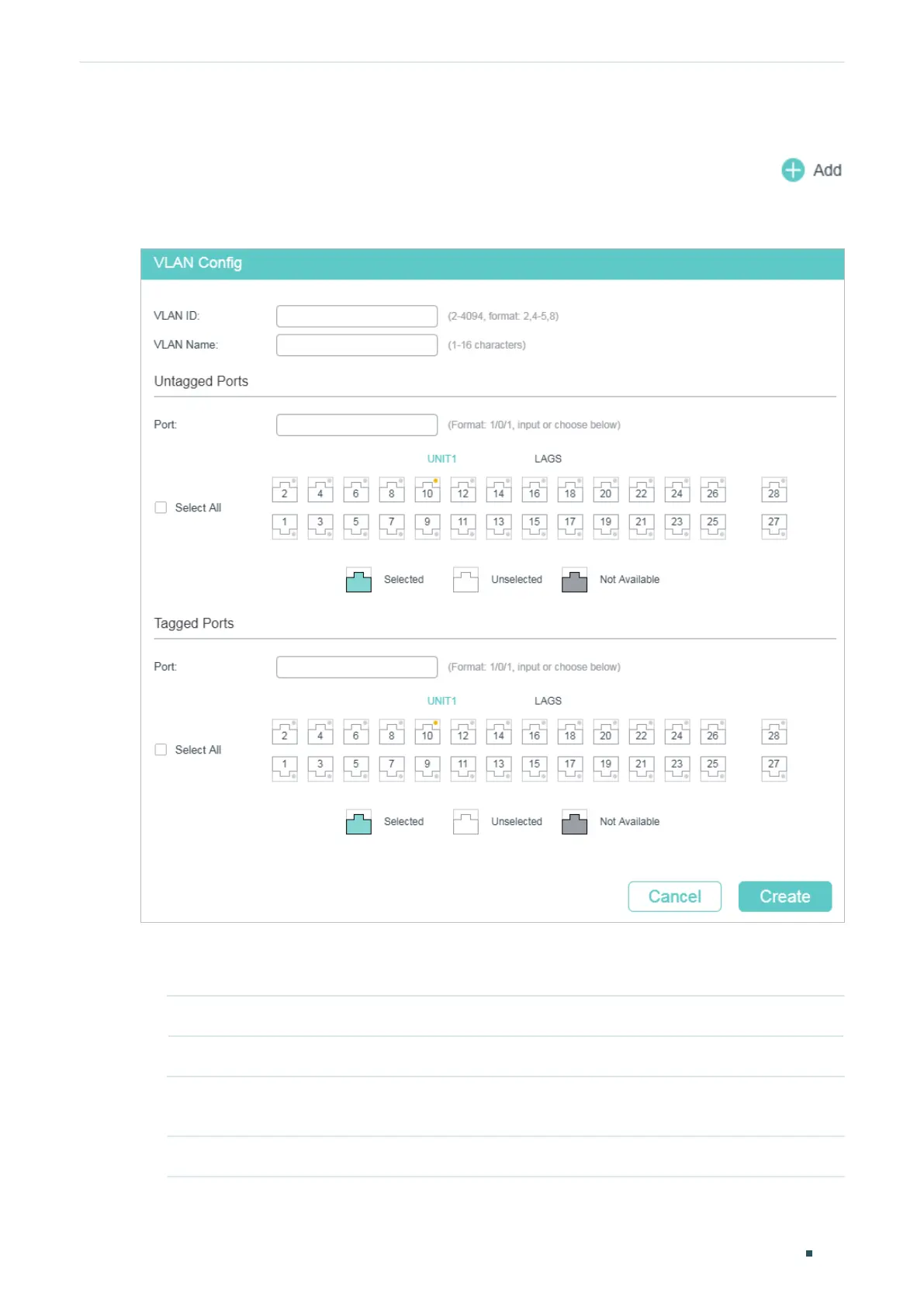

Figure 2-2 Configuring VLAN
Follow these steps to configure VLAN:
1) Enter a VLAN ID and a description for identification to create a VLAN.
VLAN ID Enter a VLAN ID for identification with the values between 2 and 4094.
VLAN Name Give a VLAN description for identification with up to 16 characters.
2) Select the untagged port(s) and the tagged port(s) respectively to add to the created
VLAN based on the network topology.
Untagged port The selected ports will forward untagged packets in the target VLAN.
