Configuring 802.1Q VLAN Configuration Example
Configuration Guide
151

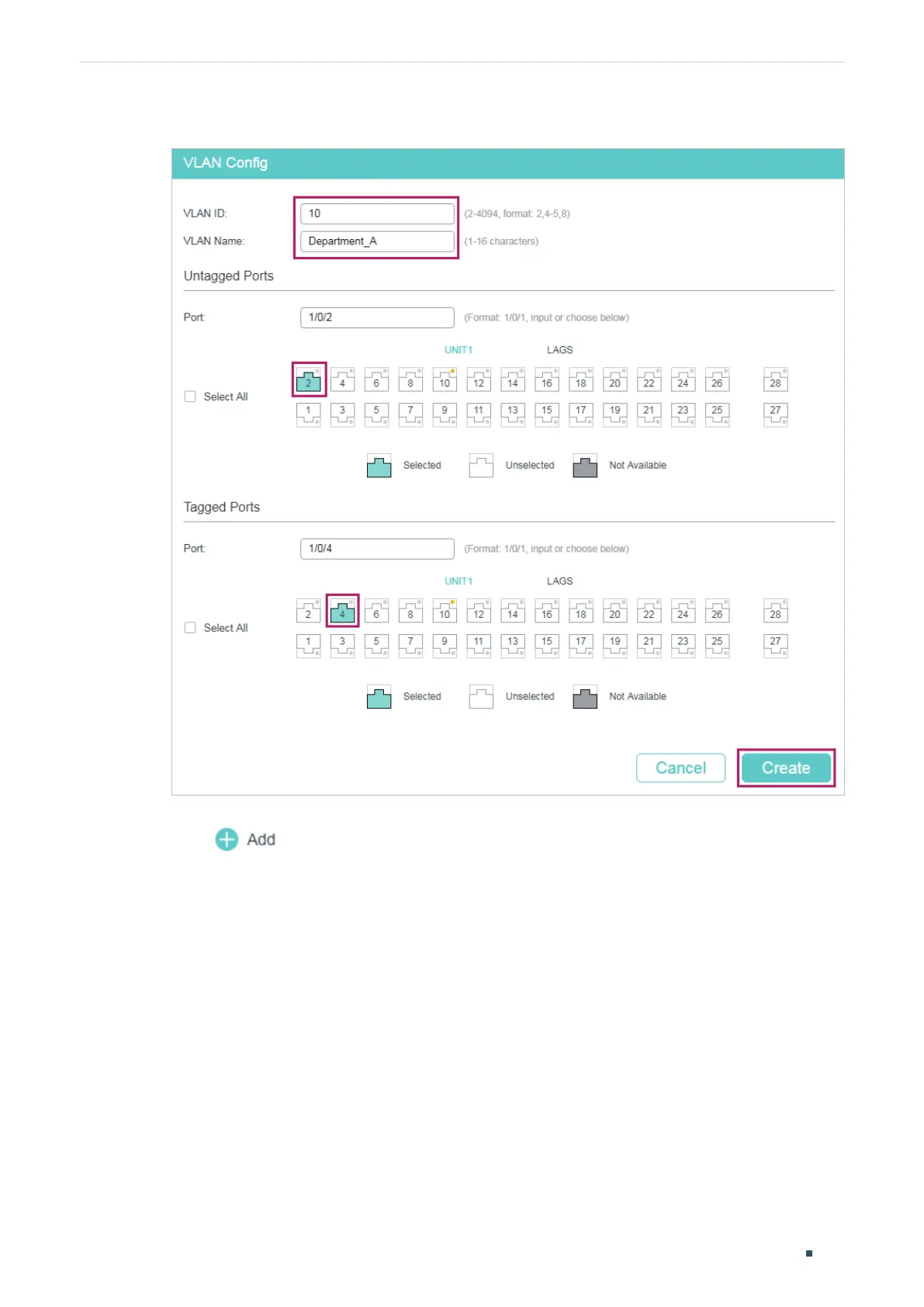

Figure 3-2 Creating VLAN 10 for Department A
2) Choose the menu L2 FEATURES > VLAN > 802.1Q VLAN > VLAN Config and
click
to load the following page. Create VLAN 20 with the description of
Department_B. Add port 1/0/3 as an untagged port and port 1/0/4 as a tagged port to
VLAN 20. Click Create.
