Configuring Spanning Tree Configuration Example for MSTP
Configuration Guide
347

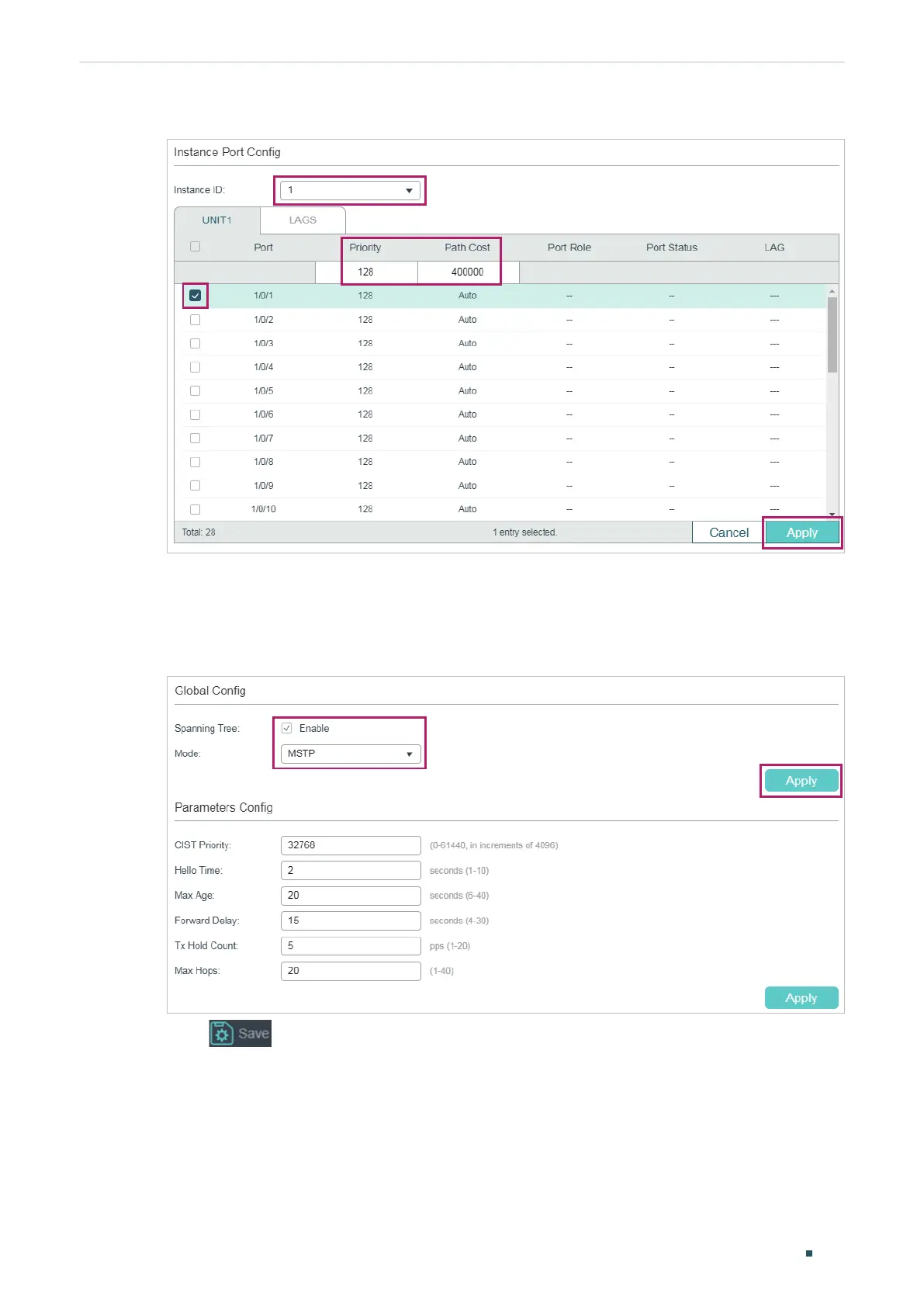

Figure 5-6 Configure the Path Cost of Port 1/0/1 In Instance 1
5) Choose the menu L2 FEATURES > Spanning Tree > STP Config > STP Config to load
the following page. Enable MSTP function globally, here we leave the values of the other
global parameters as default settings. Click Apply.
Figure 5-7 Configure the Global MSTP Parameters of the Switch
6) Click to save the settings.
Configurations for Switch B
1) Choose the menu L2 FEATURES > Spanning Tree > STP Config > Port Config to load
the following page. Enable the spanning tree function on port 1/0/1 and port 1/0/2. Here
we leave the values of the other parameters as default settings. Click Apply.
