Configuration Guide 468

Configuring QoS Configuration Examples

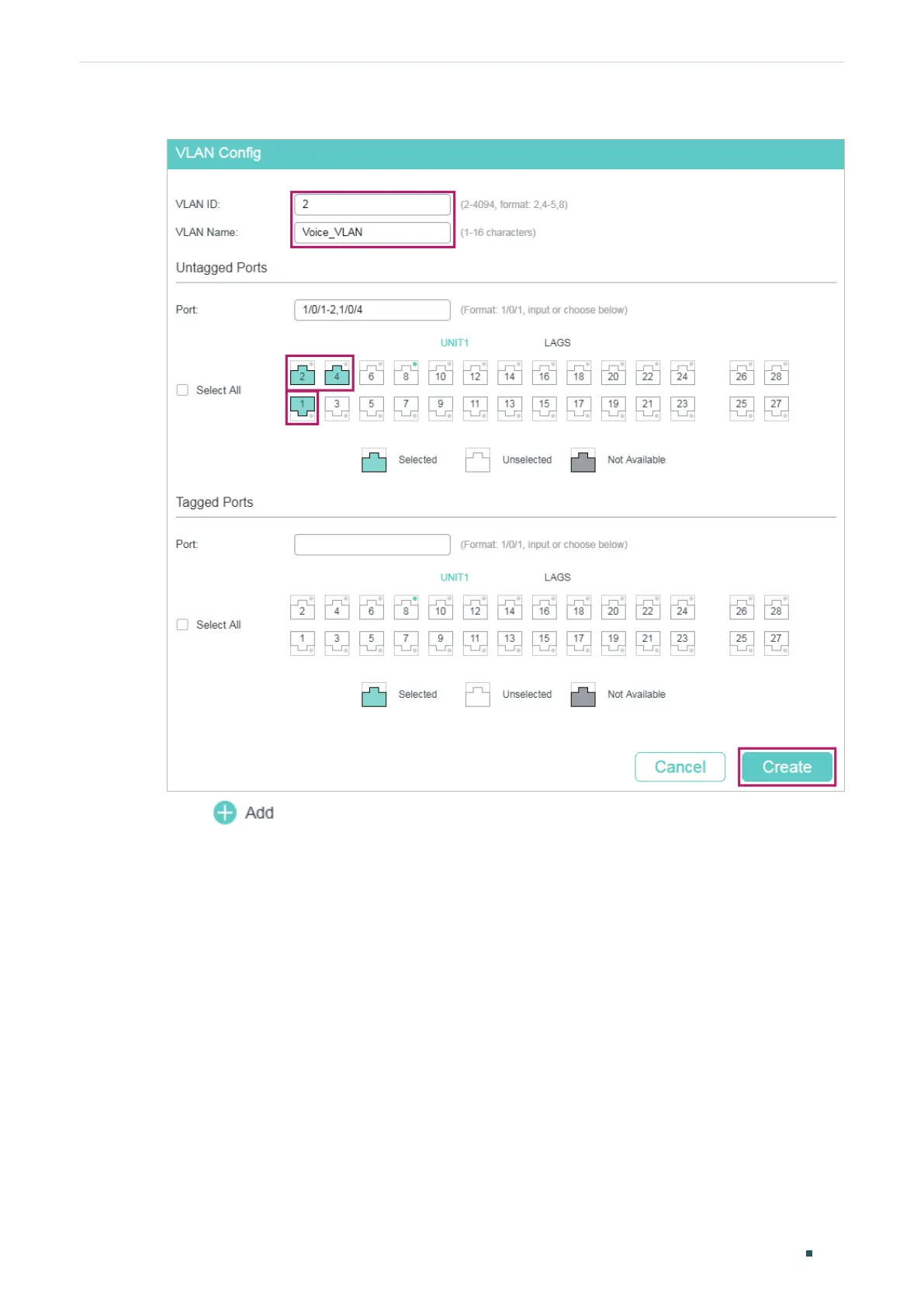

Figure 6-6 Configuring VLAN 2

2) Click to load the following page. Create VLAN 3 and add untagged port 1/0/3

and port 1/0/4 to VLAN 3. Click Create.
