Configuring QoS Configuration Examples
Configuration Guide
479

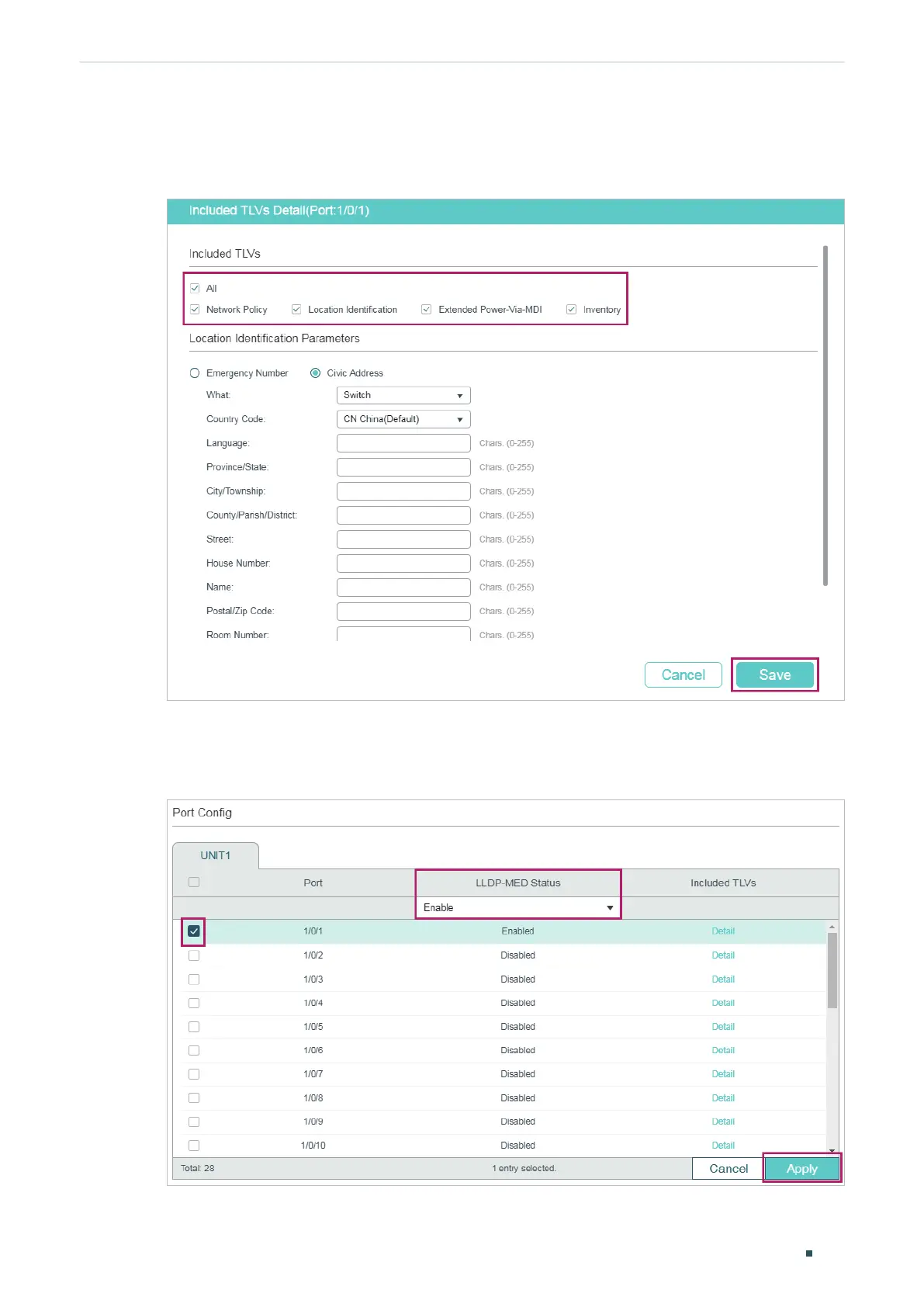

7) Choose the menu L2 FEATURES > LLDP > LLDP-MED Config > Port Config click Detail
to of port1/0/1 to load the following page. Check the boxes of all the TLVs. Click Save.
Figure 6-19 Configuring the TLVs
8) Choose the menu L2 FEATURES > LLDP > LLDP-MED Config > Port Config to load the
following page. Enable LLDP-MED on port 1/0/1. Click Apply.
Figure 6-20 Enabling LLDP-MED on the Port
