4.4.1 CANopen over EtherCAT (CoE)
EtherCAT can provide the same communication mechanisms as those known from
1
CANopen:
 Object dictionary
 PDO, Process Data Objects
 SDO, Service Data Objects
 NMT, Network Management
EtherCAT can thus be implemented on devices that were previously equipped with
CANopen, with minimal expense. Extensive parts of the CANopen firmware can be re-
used. The objects can be optionally extended.

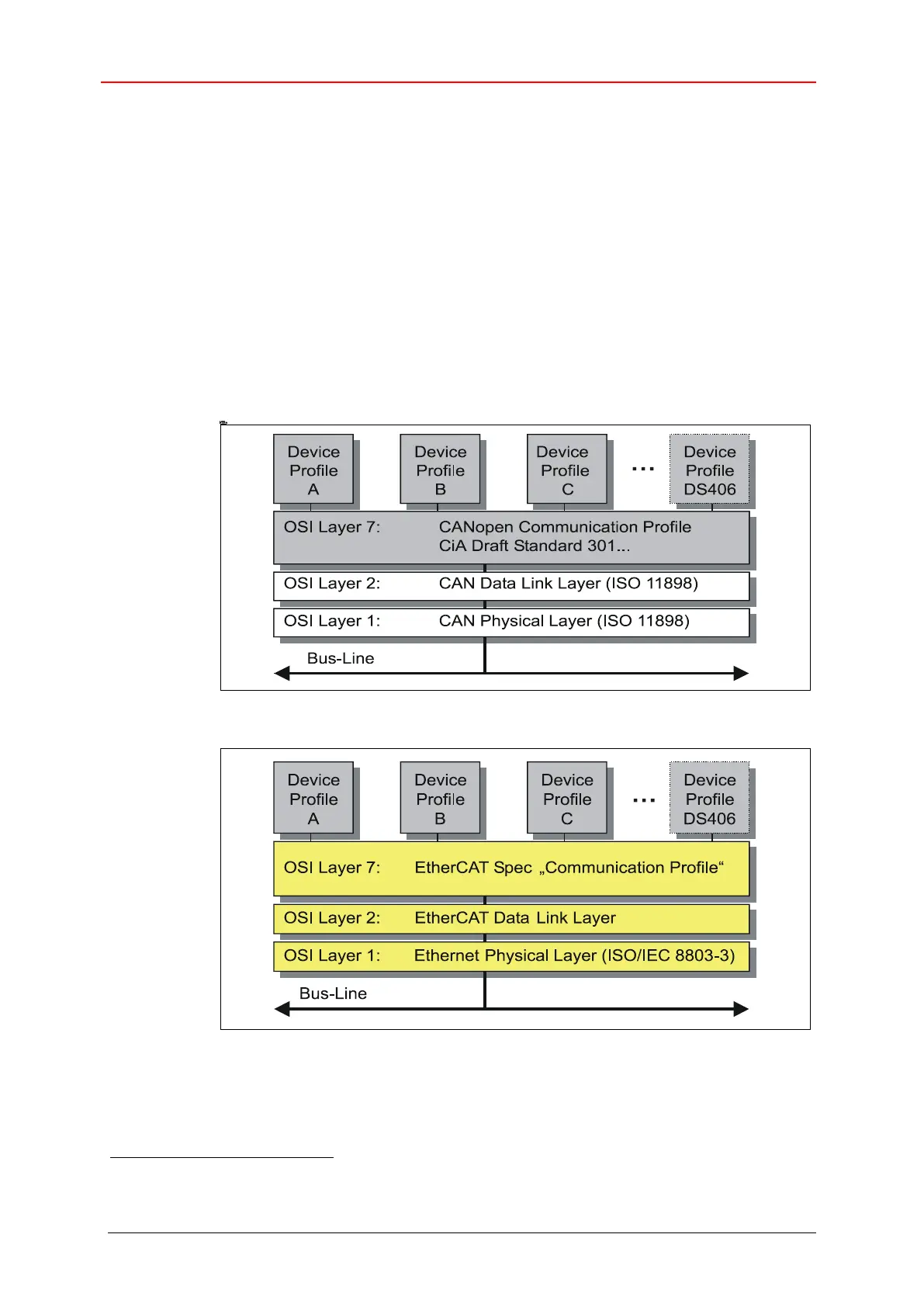

Comparison of CANopen / EtherCAT in the ISO/OSI layer model
Figure 5: CANopen organized in the ISO/OSI layer model
Figure 6: EtherCAT organized in the ISO/OSI layer model
1
EN 50325-4: Industrial Communication Systems, based on ISO 11898 (CAN) for Controller Device Interfaces.
Part 4: CANopen.
