Trimble SCS900 User Manual

11 Machine Control
Machine measure-up for concrete paver
The software enables you to measure up a concrete paver using a guided measure-up routine,
export the data to a USB stick and then load it onto the machine.
To make the measure-up routine visible:
1.

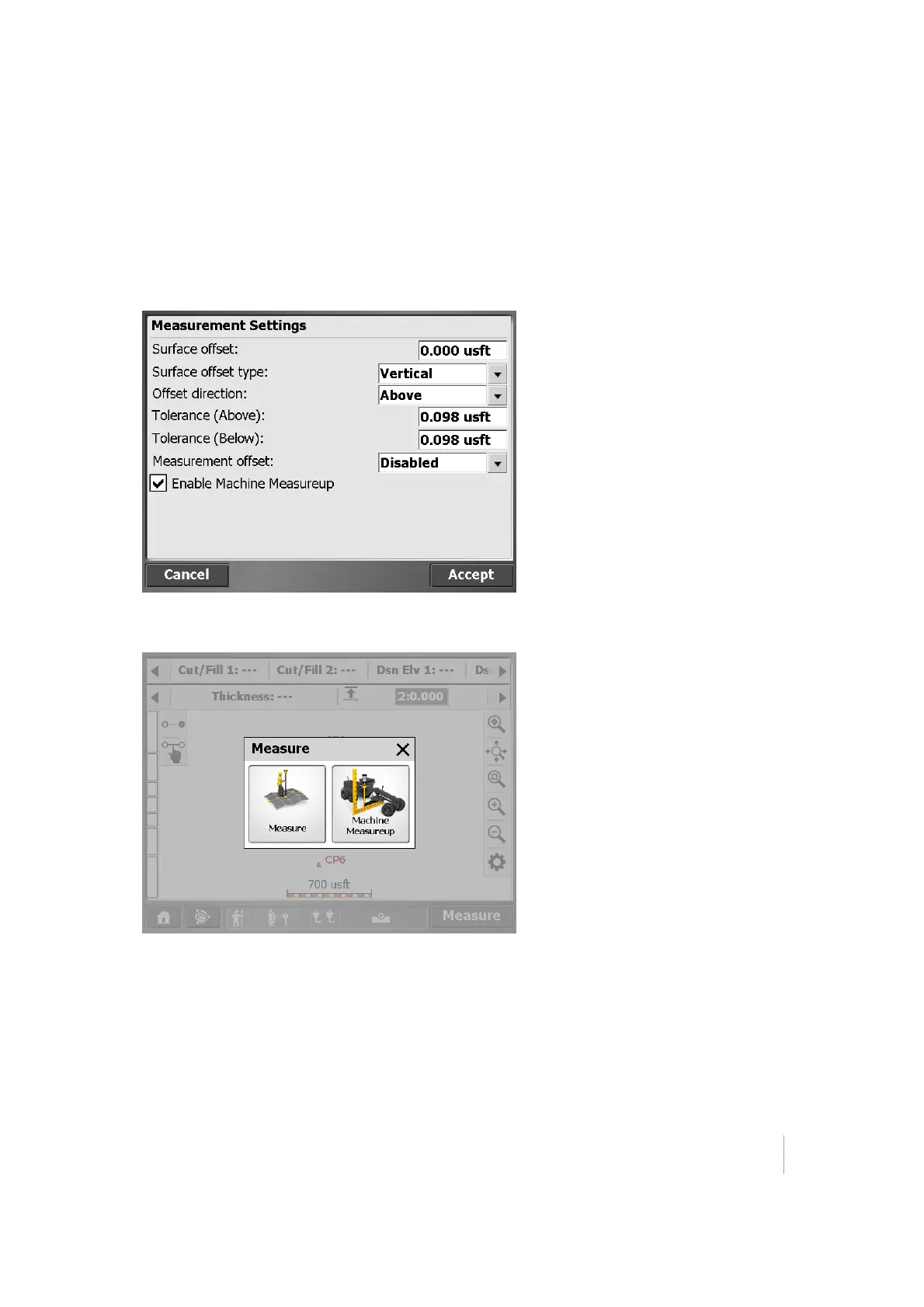

Tap the Trimble icon menu, tap Settings and then tap Measure Settings. The following dialog
appears:
2.
Select the Enable Machine Measureup option to put the measure-up option in the Measure
menu:
For a detailed description on how to measure up the concrete paver, please refer to the Trimble
PCS900 Paving Control Systems Installation Manual.
Trimble SCS900 Site Controller Software User Guide 106
