8 Stakeout Workflow
Reference Line
While staking out different objects like a point, line, surface or road another line or alignment can be
selected and referenced. To select a reference line or alignment, define the primary stakeout object
and then tap Reference Line in the Trimble icon menu. Select the reference Line from the map.

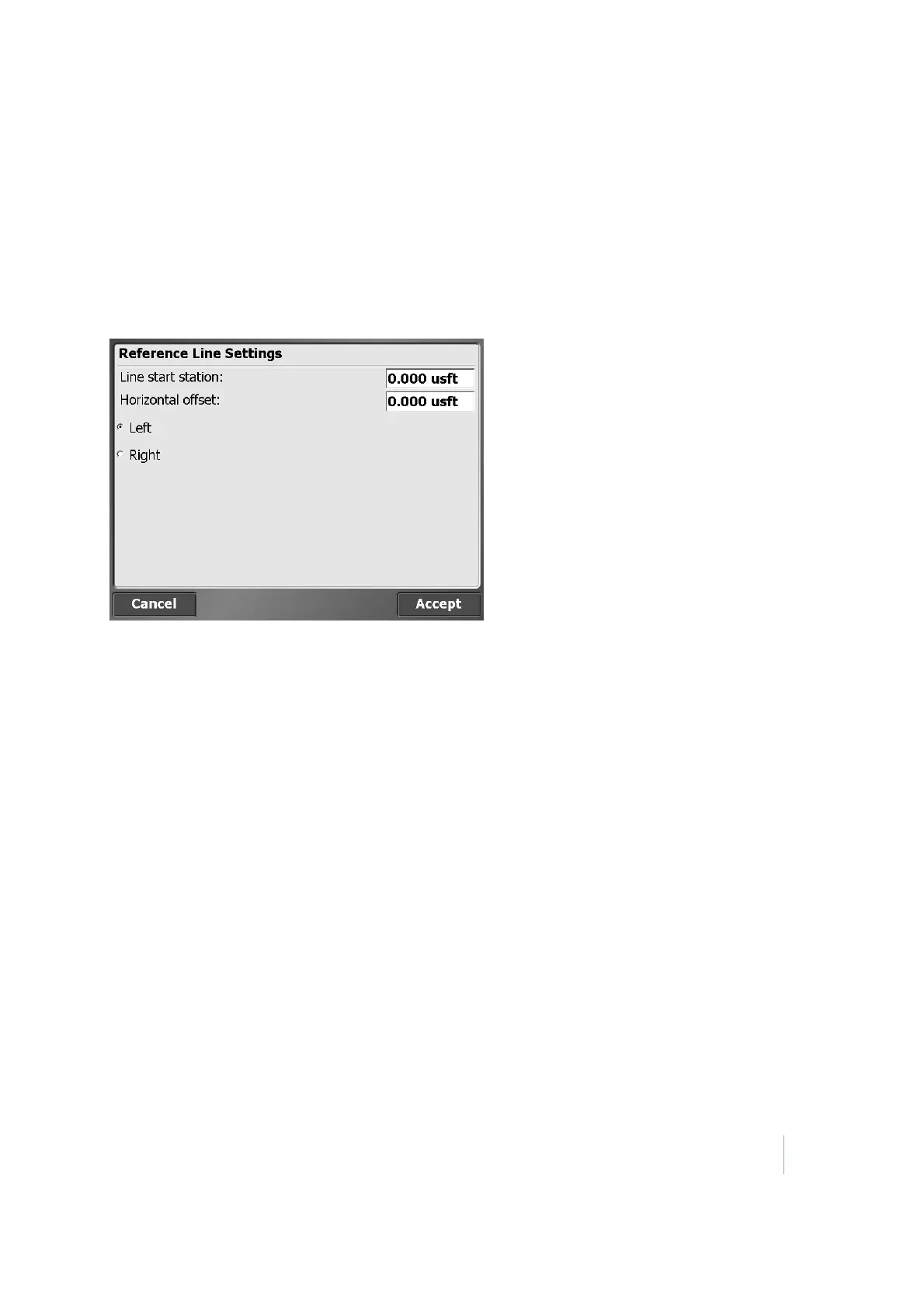

When a line is used as a reference line, an optional horizontal offset and a line start station can be
applied.
The station and offset to this reference line can be displayed in the info bar as reference station (R.
Sta) and reference offset (R. Off) while staking the actual object.
Surfaces
Use the Stake Surface feature to put grade stakes over a design surface indicating the cut/fill to it.
The surface you want to stake out must be part of the currently loaded design. There are multiple
ways to get a surface into a design:
l
From a TTM surface file (this can be created in the Business Center - HCE software).
l
By creating a surface design from an existing SCS900 work order using the Import/Export
feature.
1. From the Measurement screen, tap Home and then tap Stake.
2. Select the surface using the list on the top right of the screen and then in the Surface tab select
a stakeout surface.
3. Use the values in the display bar to indicate the current cut/fill.
4. After tapping Stake, the software creates a Stake marker report. A graphical diagram shows
how to put an elevation mark on the stake. The method that the software uses to calculate the
elevation mark and cut/fill depends on the Stakeout Settings in the Trimble icon menu.
Trimble SCS900 Site Controller Software User Guide 72
