4 Measurement screen

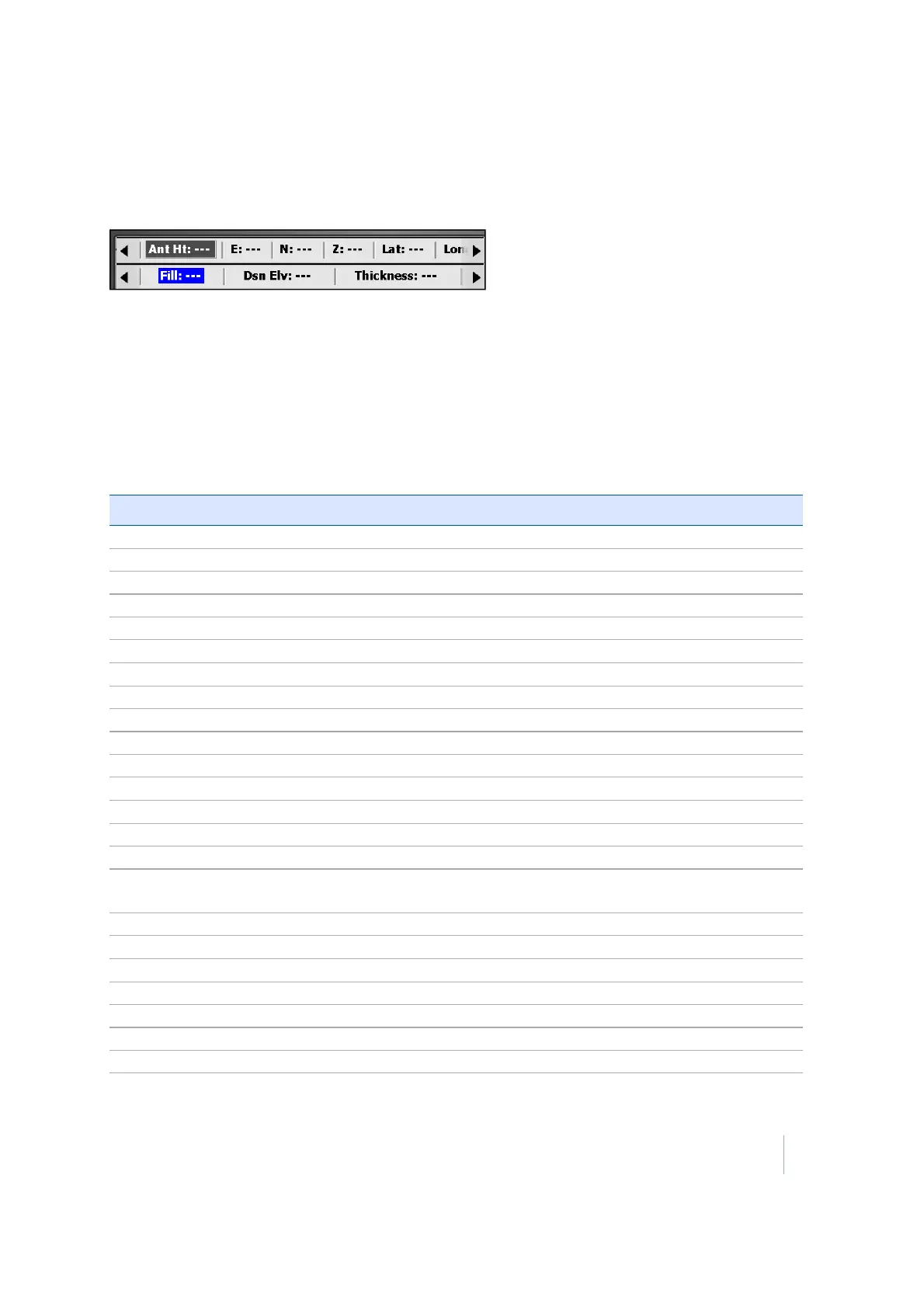

Info bars
At the top of the screen there are two bars that show readings and values related to the current
operation:
Use the arrows on the right and on the left to scroll through the different values which are currently
enabled. You can also tap on the bar and "flick" through the different values. For each function, a
predefined set of values is shown. You can modify the settings in the Trimble icon menu with the
Configure Info Bars option.
Some fields (for example, Antenna & Target Height, Stakeout line offset, and Surface offset) are
"active" fields. By tapping on it, you can change the settings and shortcut in the Settings dialog of
this value.
The following values are available:
This value Shows the…
Ant Ht currently applied antenna height.
Tar. Ht currently applied target height.
E current Easting in the selected/applied coordinate system.
N current Northing in the selected/applied coordinate system.
Elv current Elevation in the selected/applied coordinate system.
Horizontal angle current horizontal angle the instrument is shooting.
Vertical angle current vertical angle the instrument is shooting.
Slope distance current slope distance the instrument is shooting.
Lat current latitude in WGS-84.
Long current longitude in WGS-84.
Ht current height in WGS-84.
Sta current station to a selected road or alignment.
Off current offset from a selected road or alignment.
Go distance and direction guidance to a selected point or object.
Cut/Fill cut/fill value to a selected point, line, road, or alignment.
Dsn Elv design elevation of a selected point, line, road, or alignment. An arrow next to
the value indicates if a surface offset has been applied.
Thickness current thickness of a layer vertical on the last layer.
R. Sta current station to the selected reference alignment.
R. Off current offset to the selected reference alignment.
dE difference in East to a selected point or object.
dN difference in North to a selected point or object.
dElv difference in Elevation to a selected point or object.
Ahead/Back difference in station to a selected point along the selected alignment.
Trimble SCS900 Site Controller Software User Guide 34
