10 Measuring with a Total Station
3.

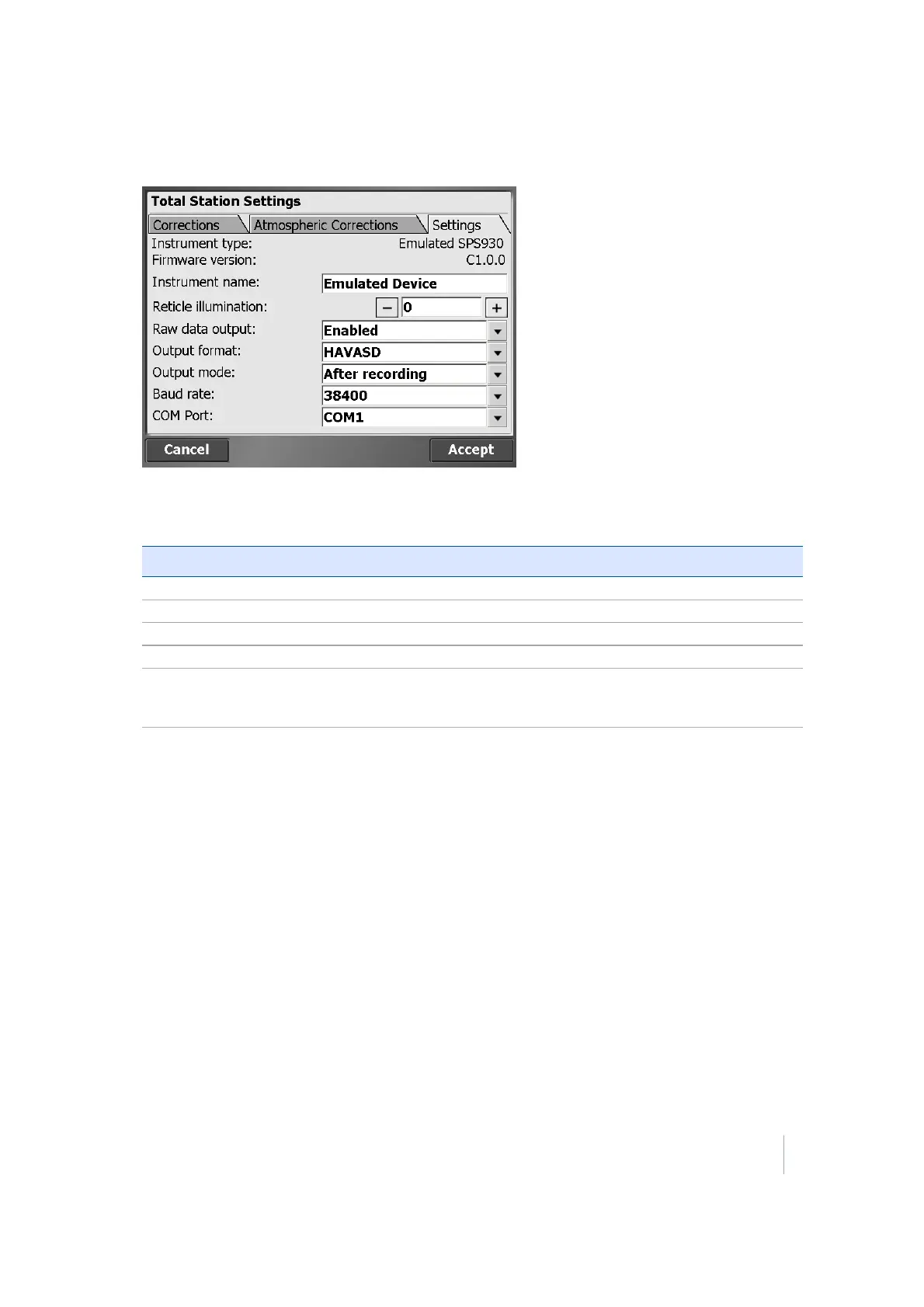

Tap the Settings tab:
4. Enable the Raw data output option.
5.
In the Output format list, select either HAVASD raw data or XYZ coordinates.
RAW data format Coordinate data format
0 0
7 = HA 37 = Northing
8 = VA 38 = Easting
0 = SD 39 = Elevation
The first line of data is always a 0, which is a status tag indicating a complete measurement record.
Each line of data is terminated with a carriage return and line feed.
6. In the Output mode list, select either the After recording (every time you tap Record) option or
the Continuous (every time the total station has a new measurement) option.
7. In the COM Port list, select the controller port through which to send the data.
8.
In the Baud rate list, select the rate in bits per second that you want to send the data to the
COM port.
Note – Parity is set to 0 (No Parity), data bits is set to 8, and stop bits is set to 1. You cannot
change these settings.
9. Tap OK. Once the connection is established, and measurement commences, the data will be
sent to the selected COM port in the format you selected.
Trimble SCS900 Site Controller Software User Guide 98
