4-36 Daughter Boards
Ethernet Daughter Board
Trio Motion Technology

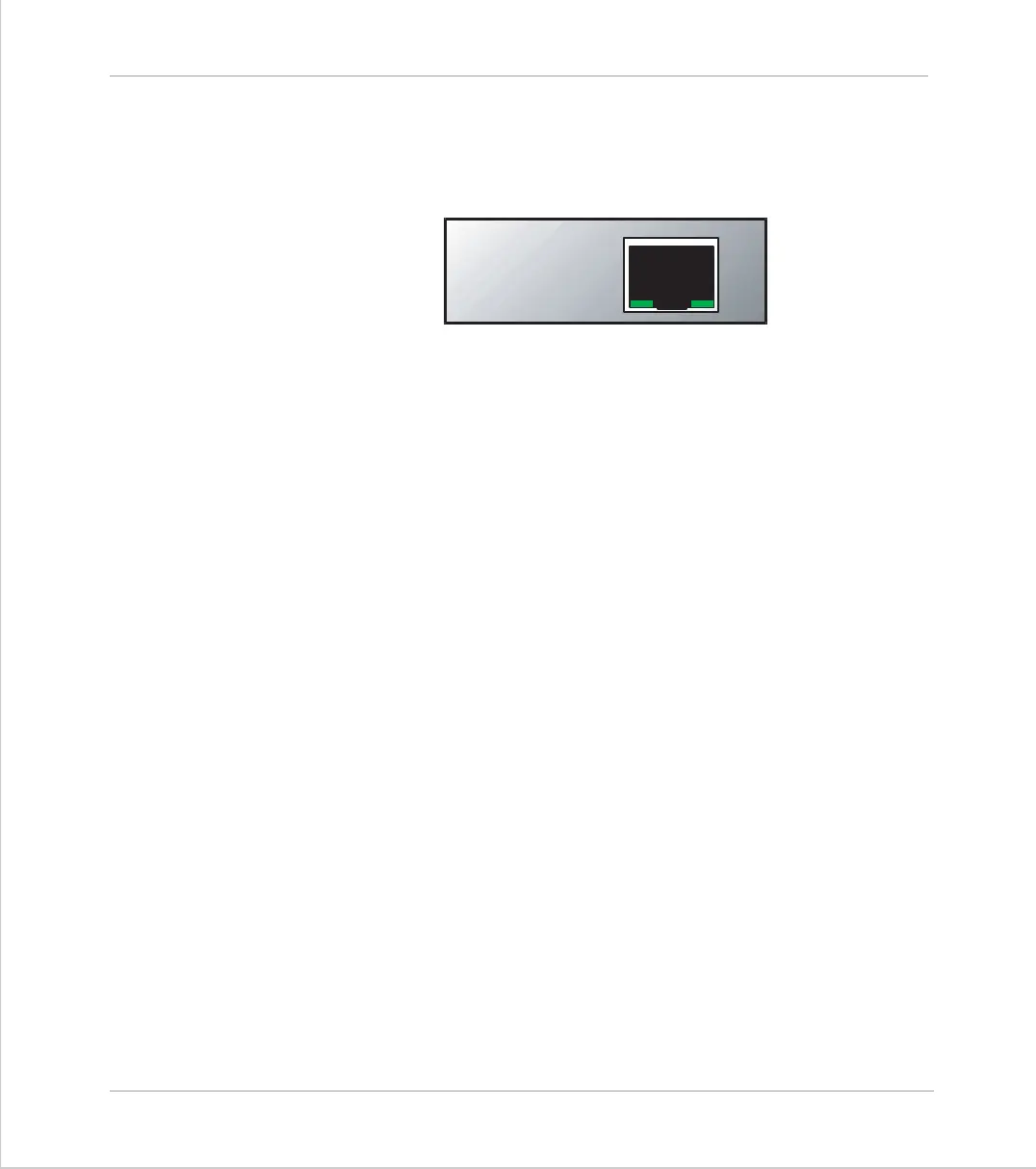

Ethernet Daughter Board
Trio Product Code P296
Description:
ATYPE
parameter for Ethernet Daughter Board =25
The Ethernet daughter board provides a high speed link between the Motion
Coordinator and a host PC via a factory or office local area network (LAN).
An industry standard Telnet terminal can be used to access the Motion Coordi-
nator’s command line over Ethernet.
The daughter board can run the Modbus TCP protocol as a slave, Thus allowing
a Modbus master to read and write integer or floating point values to the glo-
bal VRs and to access the I/O.
Software Support
Support for Ethernet is included in Trio's Motion Perfect 2 application and an
ActiveX (OCX) software library is available which allows developers to include
direct access to the Motion Coordinator within their own programs. Active X
controls are supported by the majority of PC development platforms, includ-
ing Visual Basic, Delphi, Visual C++, C++ Builder etc.
Ethernet Interface
Physical Layer: 10 Base-T
Connector: RJ-45
Protocols: Industry standard RFC compliant TCP/IP stack and protocol support
for HTTP server, TCP, UDP, ARP, ICMP and IP.
