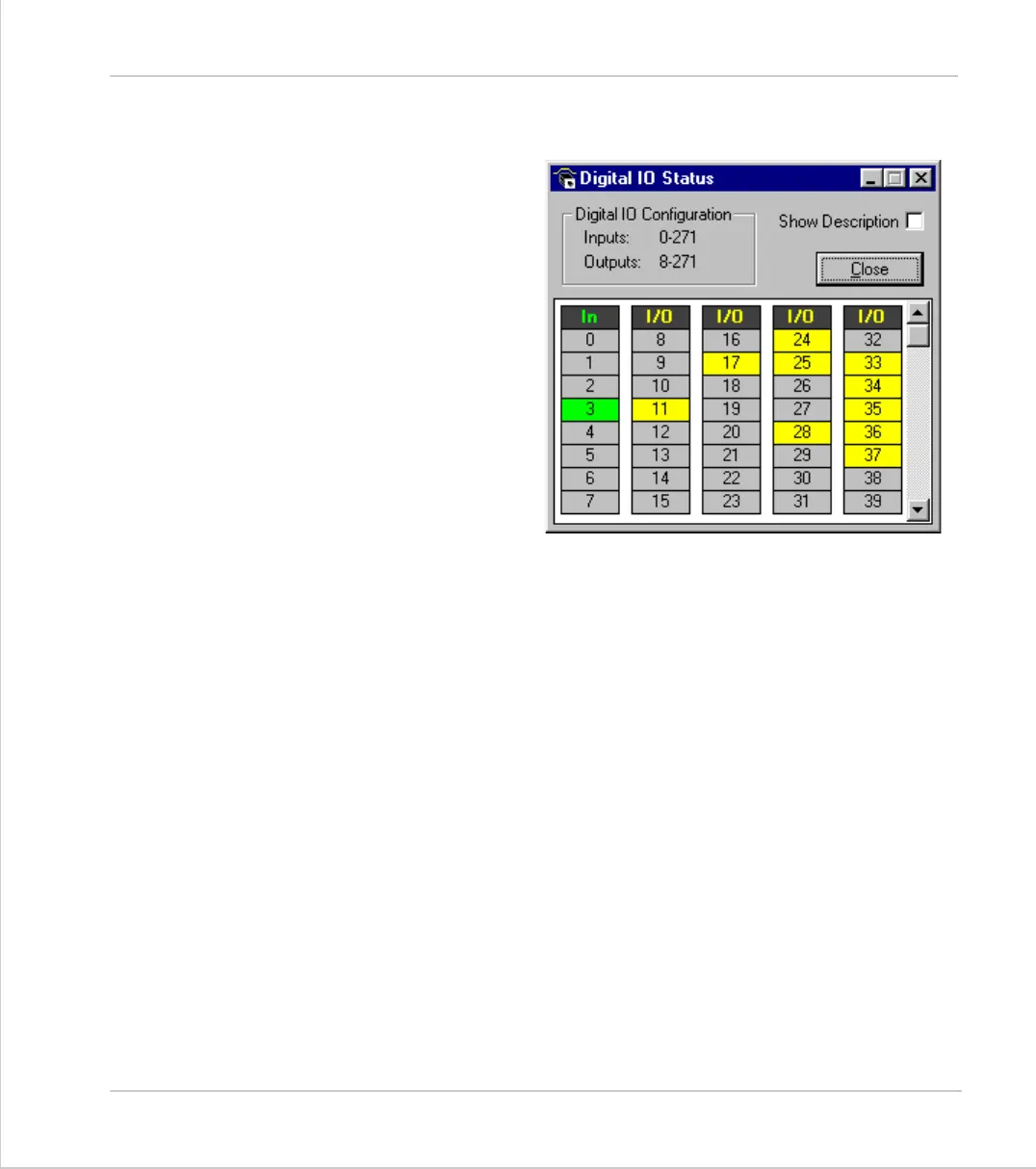

Digital IO Status
This window allows the user
to view the status of all the
IO channels and toggle the
status of the output chan-
nels. It also optionally
allows the user to enter a
description for each I/O line.
Digital Inputs
This shows the total number
of input channels on the
Motion Coordinator.
Digital Outputs
This shows the total number
of output channels on the
Motion Coordinator.
IO Mimic
Input Bank 0-7
This first bank of 8 LEDs shows the status of the dedicated input channels. If an
LED is green then the corresponding input is ON. If an LED is white then the cor-
responding input is OFF.
Input/Output Banks
These banks of LEDs show the status the bi-directional IO channels. If an LED is
yellow then the corresponding input is ON. If an LED is white then the corre-
sponding input is OFF. Under normal conditions the input status mimics the out-
put status, except:
5) If this input is connected to an external 24V then it may be on without the corre-
sponding output being on.
6) If the output chip detects an overcurrent situation, then the output chip will shut
down and so the outputs will not be driven, even though they may be turned on.
