Packaging

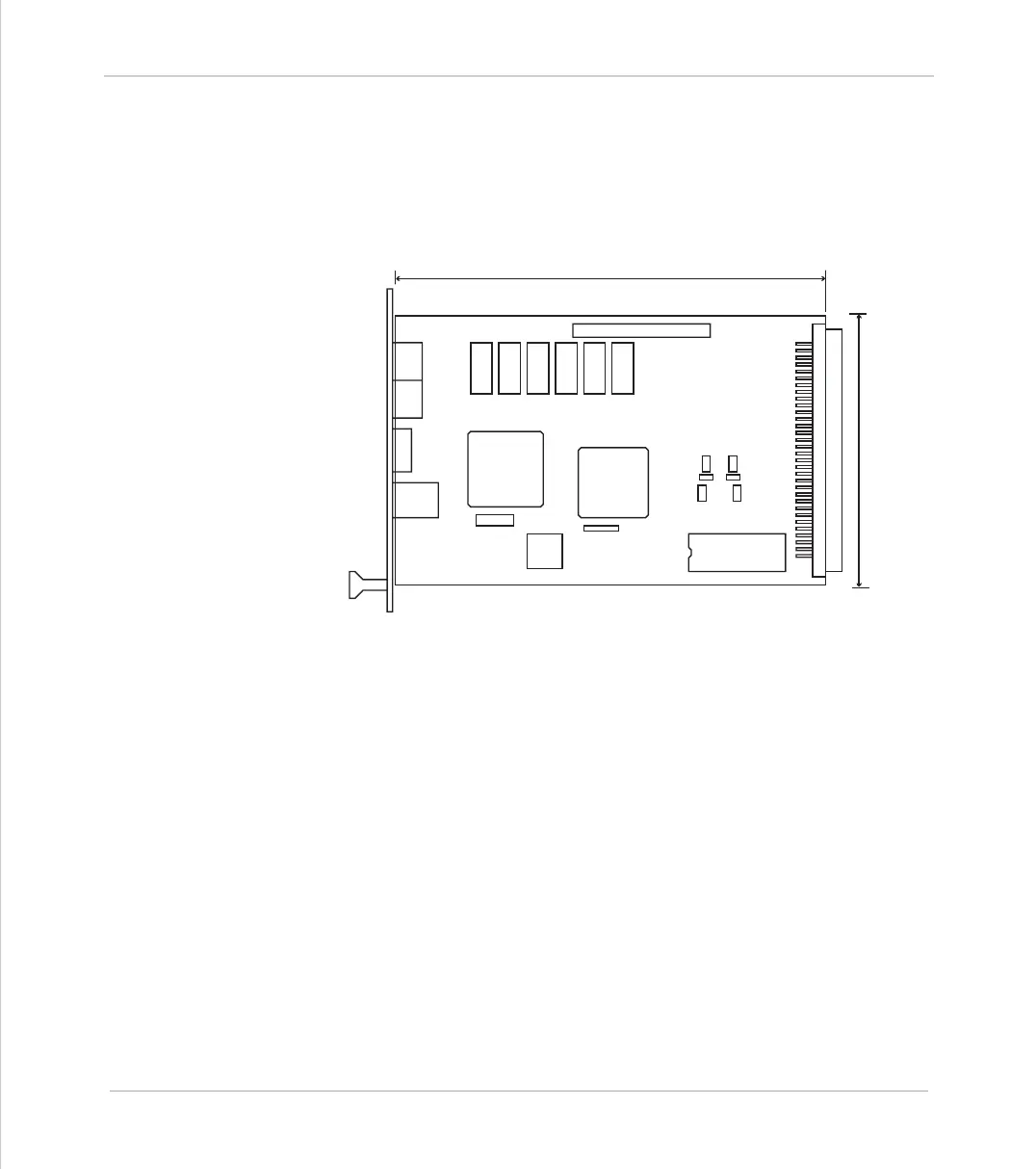

The Motion Coordinator Euro205 is a 3U Euro rack mounting product. The PCB
dimensions are 160mm long x 100mm height. The connectors and front panel
overhang these dimensions.
Rack Mounting
The Euro205 should be mounted in a shielded metal rack. The unit should be
mounted vertically and should not be subjected to mechanical loading. Care
should be taken to ensure that there is a free flow of air around the unit.
Connection To Other TRIO Products
The Euro205 may be connected to other Motion Coordinators on the CAN bus or
fibre-optic network only.
Environmental Considerations
Avoid violent shocks to, or vibration of, the Euro205 whilst in use or storage.
EMC Considerations
The Euro205 requires external power supplies, a card housing and suitable back-
plane connections to be supplied and fitted by the machine builder before it can
be used. For this reason the Euro205 is not considered by Trio to be a product for
which we can offer qualification to known EMC standards. It is therefore only
suitable to be taken into service on machines where the whole system fulfils the
necessary EMC requirements.
1
1
C B A
160mm
100mm
