Trio Motion Coordinator MC206 User Manual

3-8 Installation
Motion Coordinator MC206
Trio Motion Technology
Motion Coordinator MC206
Packaging
The Motion Coordinator MC206 is a DIN rail mounting product. The module is
held by spring clips on its bottom edge on to the DIN rail. The unit should be
mounted vertically and should not be subjected to mechanical loading. Care
should be taken to ensure that there is a free flow of air vertically around the

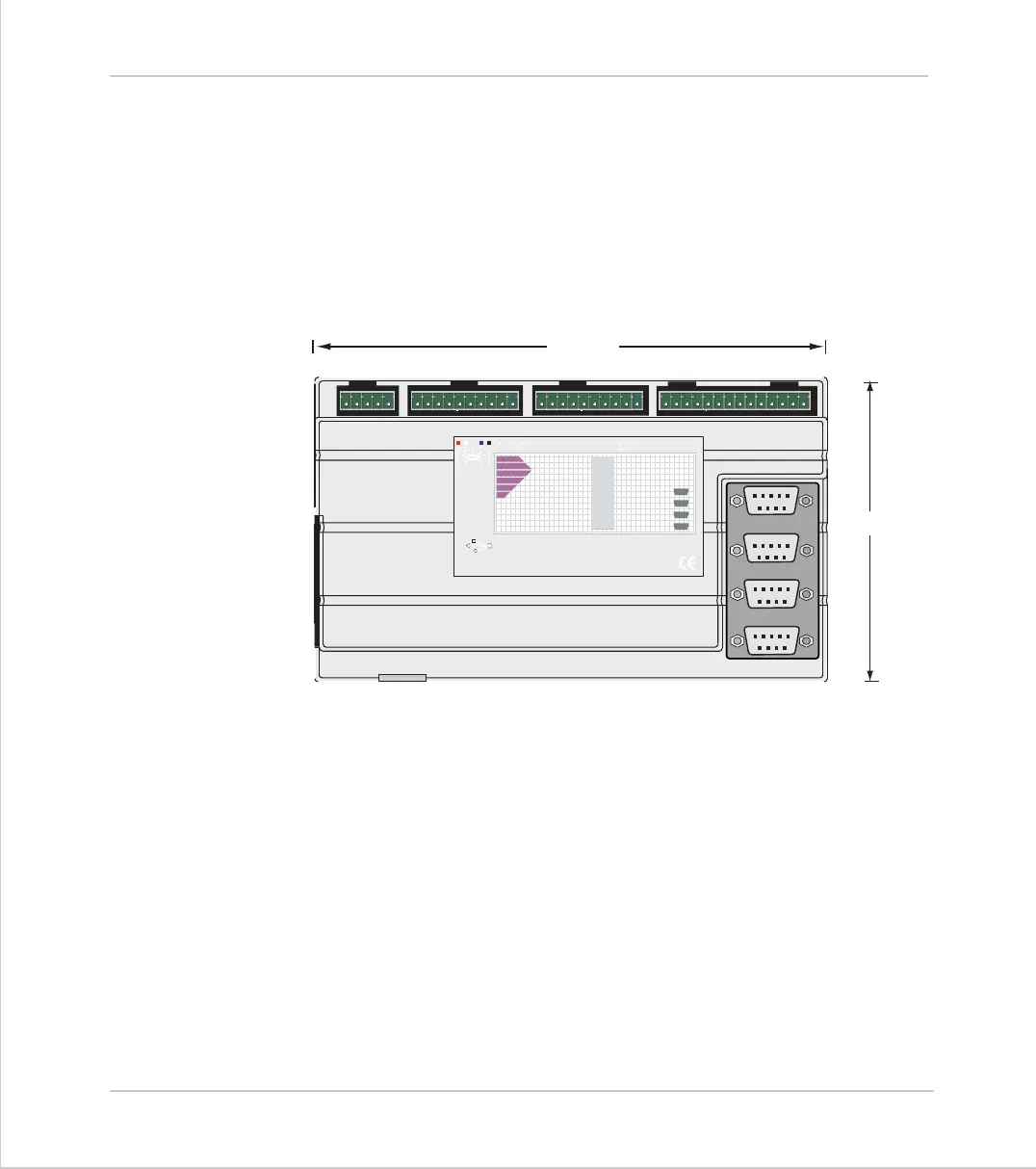

unit. The dimensions are as shown below.
Connection To Other TRIO Products
The MC206 may be connected to other Motion Coordinators on the CAN bus or
fibre-optic network only.
Environmental Considerations
Ensure that the area around the ventilation holes and top of the module are
kept clear. Avoid violent shocks to, or vibration of, the system modules whilst
in use or storage.
5 4 3 2 1
9 8 7 6
5 4 3 2 1
9 8 7 6
5 4 3 2 1
9 8 7 6
5 4 3 2 1
9 8 7 6
Axis 0
Axis 1
Axis 2
Axis 3
STATUS
OK
0
1
2
3
4
5
6
7
MC206
Motion
Coordinator
P135
Trio
0v A 0 1 2 3 4 5 6 7 0v 24v 8 9 10 11 12 13 14 15 E- A /A B /B Z /Z V- V0 V1 V2 V3
SERIAL A
SERIAL B
180mm
107mm
Including the disconnect terminal, the unit is 48mm deep.
When the serial connector is fitted, around 60mm more depth is required.

Trio Motion Coordinator MC206 Specifications

General

Brand	Trio
Model	Motion Coordinator MC206
Category	Controller
Language	English
