Motion Coordinator Technical Reference Manual
Introduction 1-3
Trio Motion Technology’s range of Motion Coordinator products are designed to
enable the control of industrial machines with a minimum of external compo-
nents. The products may be combined to build a control system capable of driv-
ing a multi-axis machine and its auxiliary equipment. The Motion Coordinator
system allows you to control up to 16 servo or stepper motors, Digital I/O and
additional equipment such as keypads and displays from a single master. Up to
fifteen masters can be networked together using the Trio fibre optic network
allowing up to 180 axes of control. The controller is programmed using the Trio
BASIC programming language. This may be used to build stand-alone programs or
commands can be sent from an external computer.

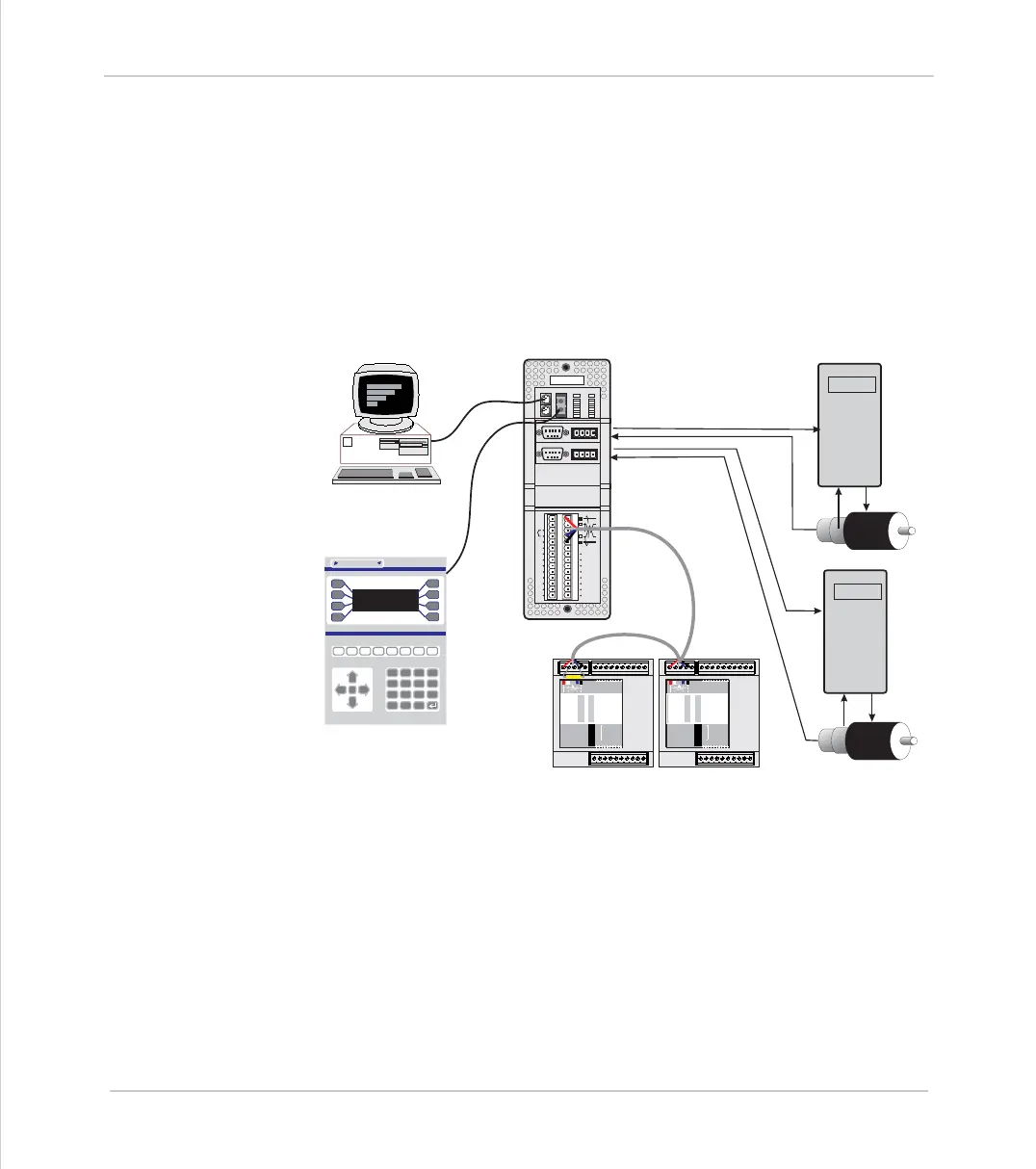

Typical System Configuration
The
Motion
Coordinator system is modular, allowing the user to tailor the controller
to their specific needs, but also allowing the flexibility to incorporate new modules if
needs should change.
