Trio Motion Coordinator MC206 User Manual

5-12 Expansion Modules
CAN Analog Inputs Module (P325)
Trio Motion Technology

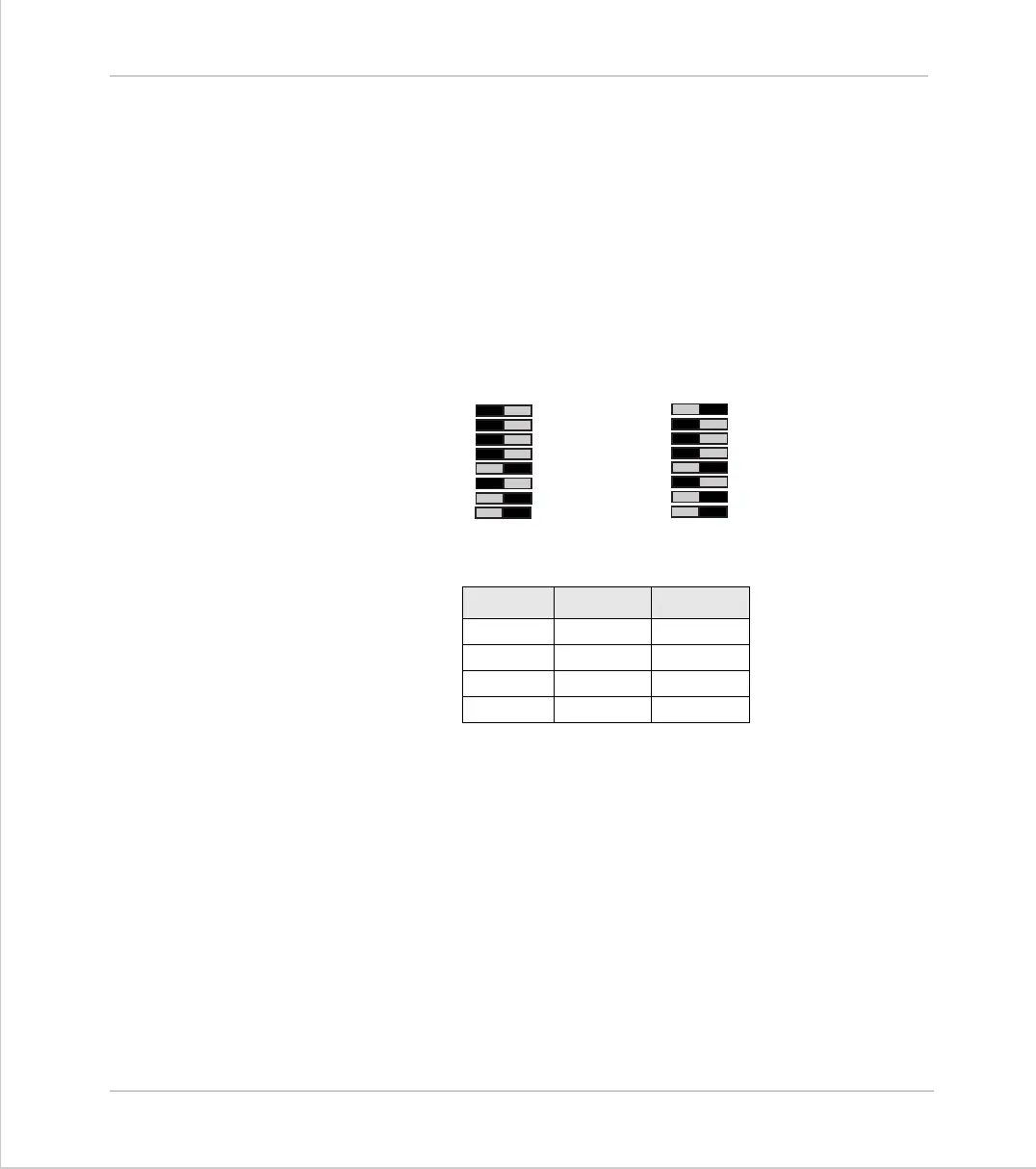

DIP Switch Settings
The switch marked “PR” selects the protocol, but is currently unused as only
the TRIO protocol is available.
The switch marked DR sets 125kHz or 500kHz. Only 500Khz is valid with the
TRIO protocol.
The addresses for P325 modules MUST be set 16,17,18... in sequence. There-
fore the first P325 Module should have the switch setting:
Note:
P325 modules and P315 (16-I/O) modules may be mixed on the network. The
P315 addresses will be 0 to 15 in sequence and the P325 modules will be 16 to
19 in sequence.
LED Indicators
Address: Start: End:
16
07
17
815
18
16 23
19
24 31
Address = 16
Analog Inputs 0..7
1
2
4
8
16
32
(TRIO)
(500Khz)
PR
DR
Address = 17
Analog Inputs 8..15
1
2
4
8
16
32
(TRIO)
(500Khz)
PR
DR
MS “Module Status” ON when module powered on OK
NS “Network Status” ON when module powered on OK and initialised.
