Motion Coordinator Technical Reference Manual
Support Software 10-51

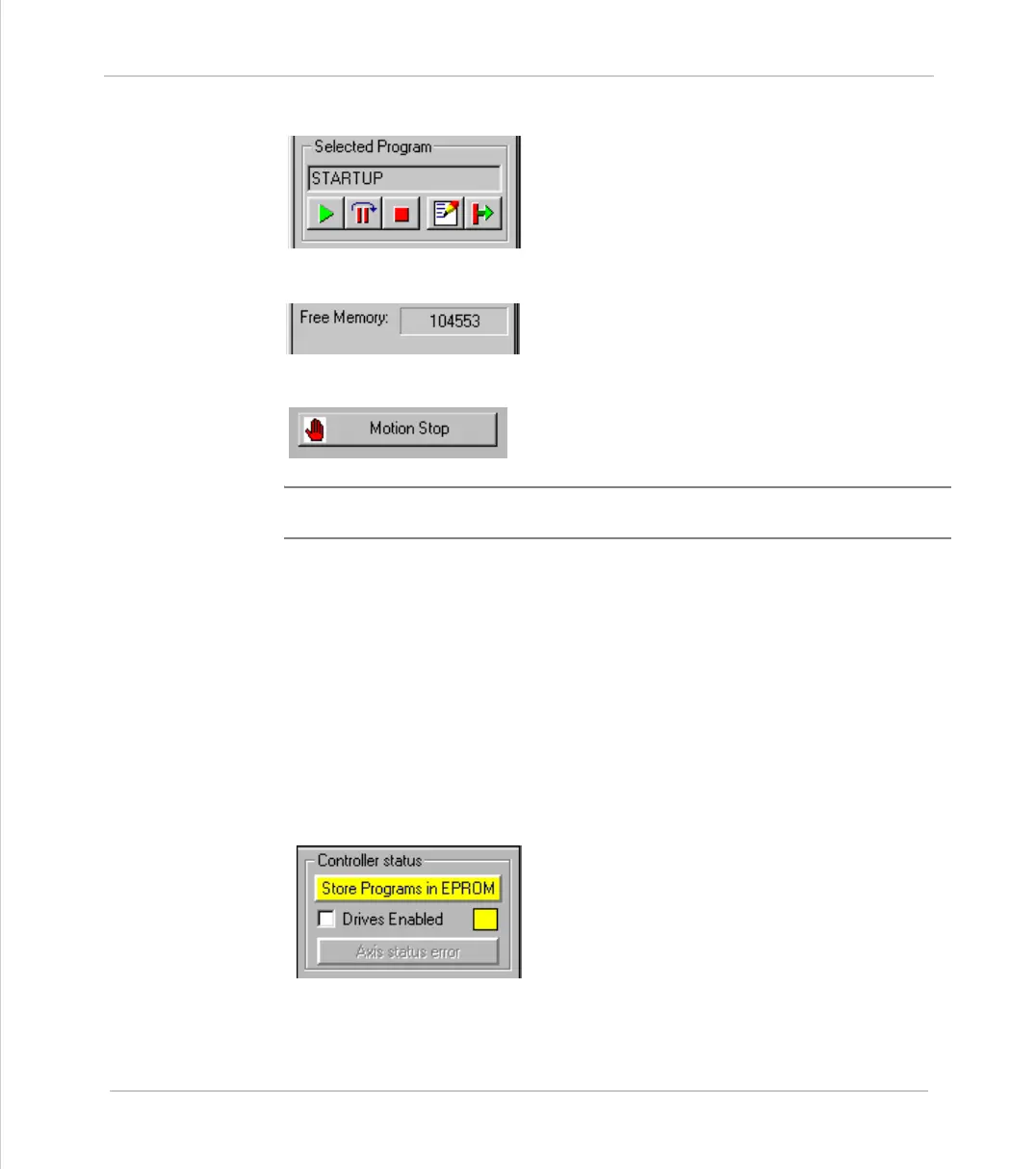

Control Panel
Selected Program
The text box displays the currently selected pro-
gram and the buttons below, the operations which
can be performed on that program.
From left to right they are:
Run, Step, Stop, Edit and Power Up Mode
Free Memory
Shows the total free memory available on the
controller
Motion Stop
Cancel moves on all axes and disable the watchdog
relay.
Note
MOTION STOP is a software function. It is not a substitute for a hardware
E_Stop circuit and should not be used as an emergency stop.
Control Panel Variations for Motion Coordinators without
battery backup
On those controllers without a battery backup such as the MC202, the fixed /
editable radio buttons are replace by a single button labeled "Store Programs into
Eprom".
As the controller does not feature a battery, it is essential that you store your
programs into the eprom to avoid loss of data.
If the programs in memory have been edited, the button will be highlighted to
remind you to fix into eprom before exiting from the program
