4-10 Daughter Boards
Fitting Daughter Boards to the MC206
Trio Motion Technology

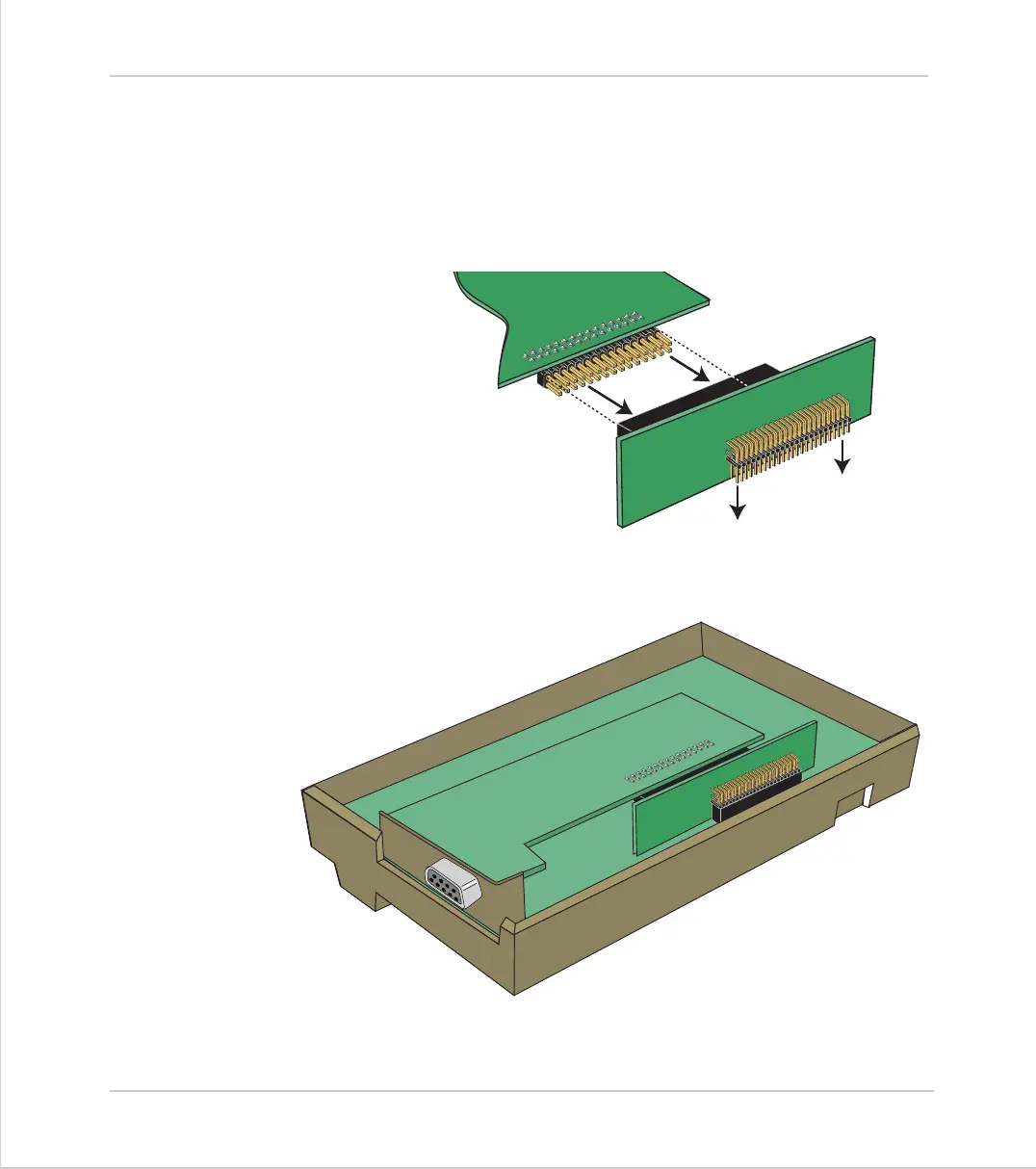

Rear of MC206 showing P399 daughter board adaptor
Note:
Some daughter boards, such as the CANBus and Profibus communications
boards, feature a longer connector and so the adaptor features a full-length
socket to accommodate these. On an axis Daughter Board with the standard
(shorter) connector the board should be inserted into the holes nearest the
edge of the adaptor, as shown:
Alignment of MC206 daughter board adaptor
Rear of MC206 with Daughter Board In place
