2. Judgement Details
2.1. Capture force curve
CFM firstly records good force curves of good samples as a standard. Recording
force curves is called Teach or Teaching and the recorded force curve is called a
reference force curve. Then CFM compares the reference force curve with a
measured force curve of each crimp to judge if the crimp is ok or not.
Because the shape of the reference force curve is changed depending on a machine,
applicator, terminal and wire, Teaching is required every time before a new item is
produced.

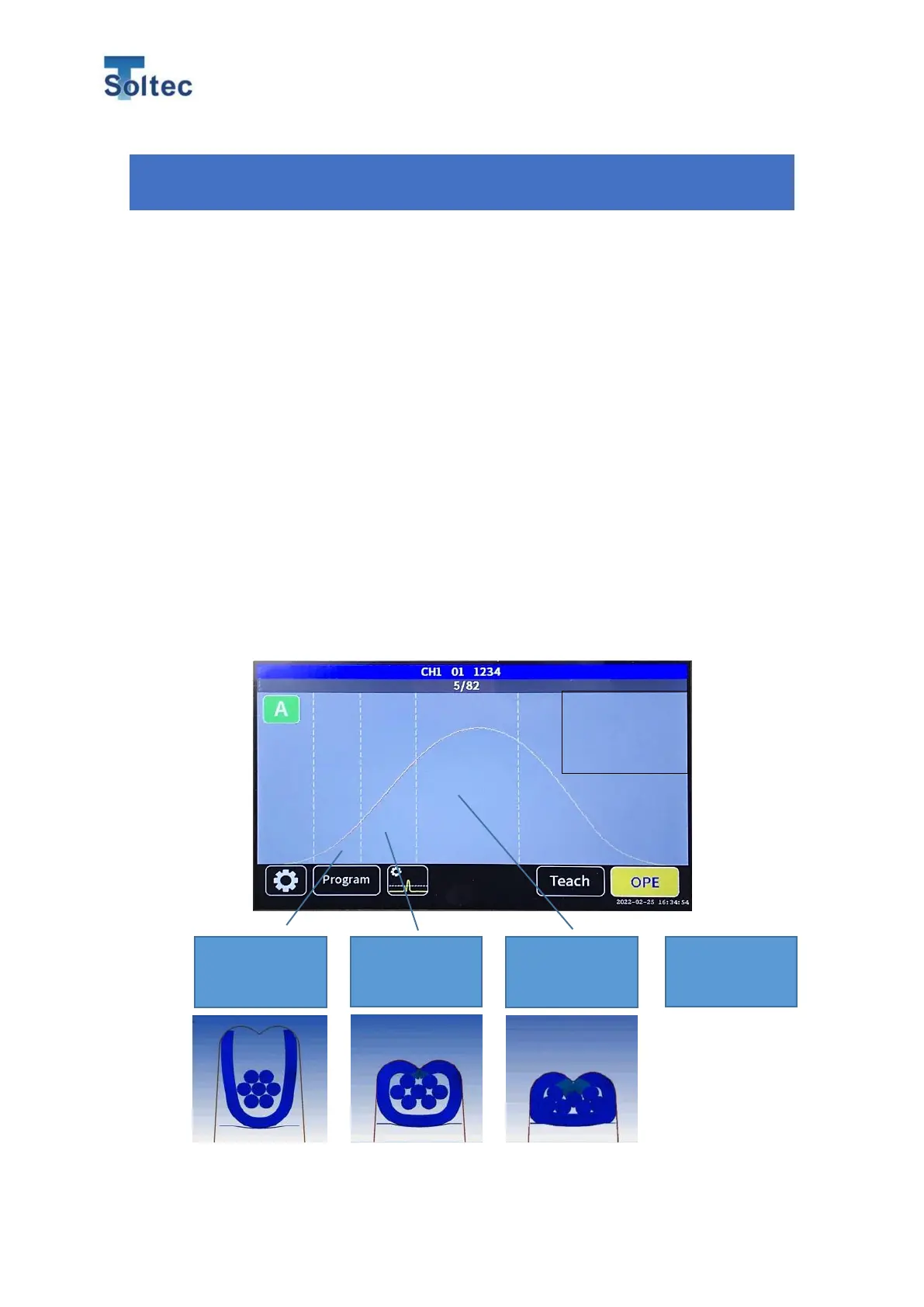

2.2. Judgement area
CFM divides the reference force curve and measured force curve into three areas
below and compares the reference curve with measured curve.
Each area is called T1, T2 and T3.
The area division is automatically decided based on its shape of the force curve and
the parameter set in Program editing.
T1 Area
Start of crimping
T2 Area
Spool up strands
T3 Area
Compress strands
TD
Total of absolute
values of T1+T2+T3
Force N
Time msec
The outside of the
judgement has not
influenced on the
CFM judgement.
