CFM-BL10Pro General instruction manual
68 / 87
C. Check CFM judgement stability

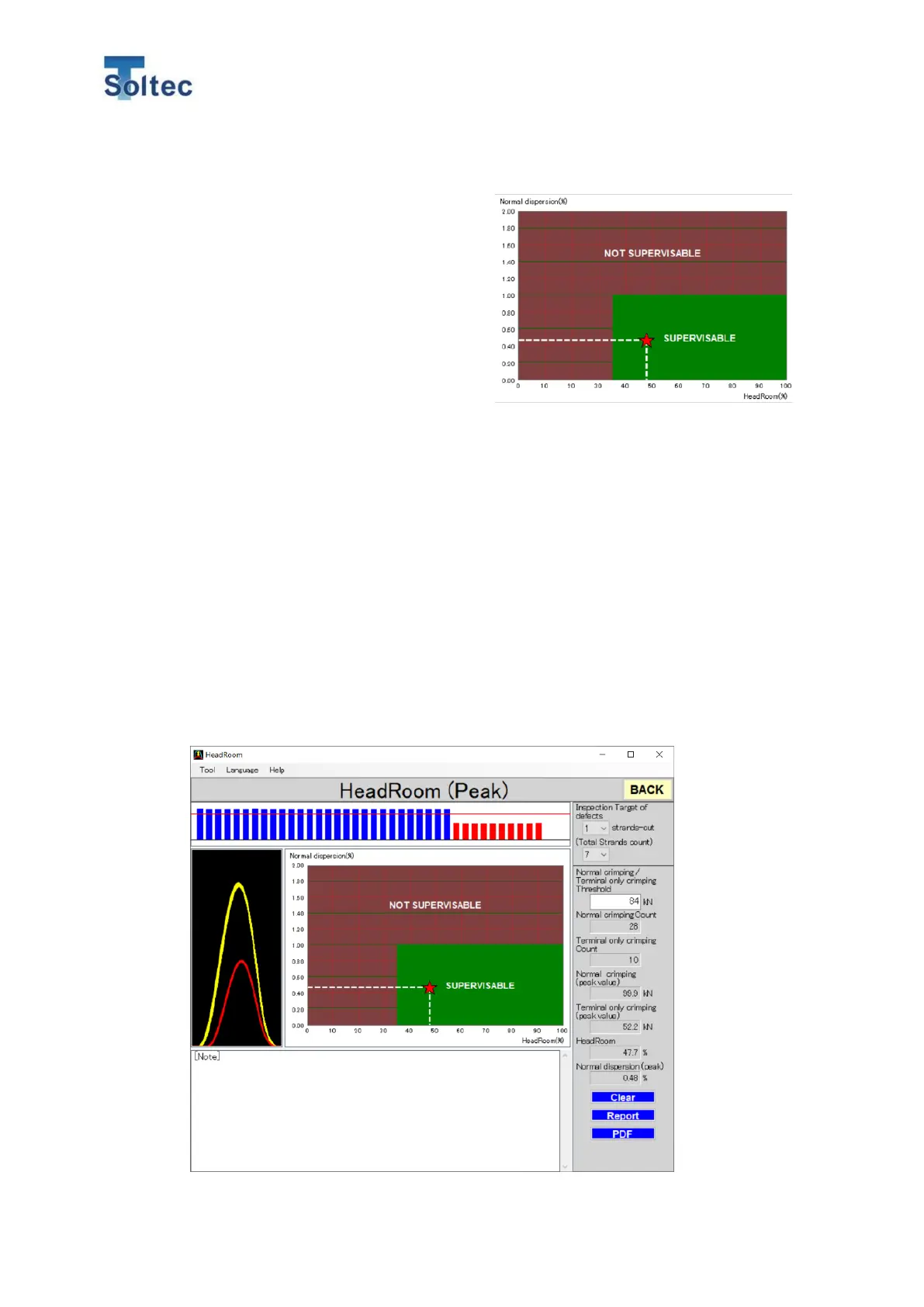

A star mark appears in the matrix
of the Normal dispersion (%). Y
axis stands for Normal dispersion
(%), while X axis stands for Head
room (%). If the star is within the
green “Supervisable” area, it
implies that CFM can make the
stable judgements (below
picture). However, if the star is in the red “Not Supervisable” area, CFM may
probably make unstable judgement. In this case, check the condition of the
equipment (e.g., applicator). Then, do the crimping again (30 good crimps
and 10 crimps without wire) and confirm whether the star moves to
“Superviable” area. If it doesn’t appear in the green area even after the
maintenance, the combination of the terminal and the wire are probably
incorrect. In such cases, the detectable scope is only limited to major defects
(no wire, no strip, or double terminal). Also, you should loosen the tolerance
to reduce the number of false alarms. Such defects, e.g., low feed or high
feed, have to be visually checked by staff.
