CFM-BL10Pro General instruction manual
9 / 87
1. Overview
1.1. Introduction
Crimp Force Monitor CFM-BL10Pro is integrated into manual crimping machine, semi-
automatic crimping machine or 1CH automatic machine, to check the crimp quality
through monitoring crimping force. All operations are performed via the LCD touch
panel on the main unit. Standard settings and operations are simplified with only
crimping force curve display and buttons on the main screen, so that customers can
use it easily. All detail settings are available on the main unit.

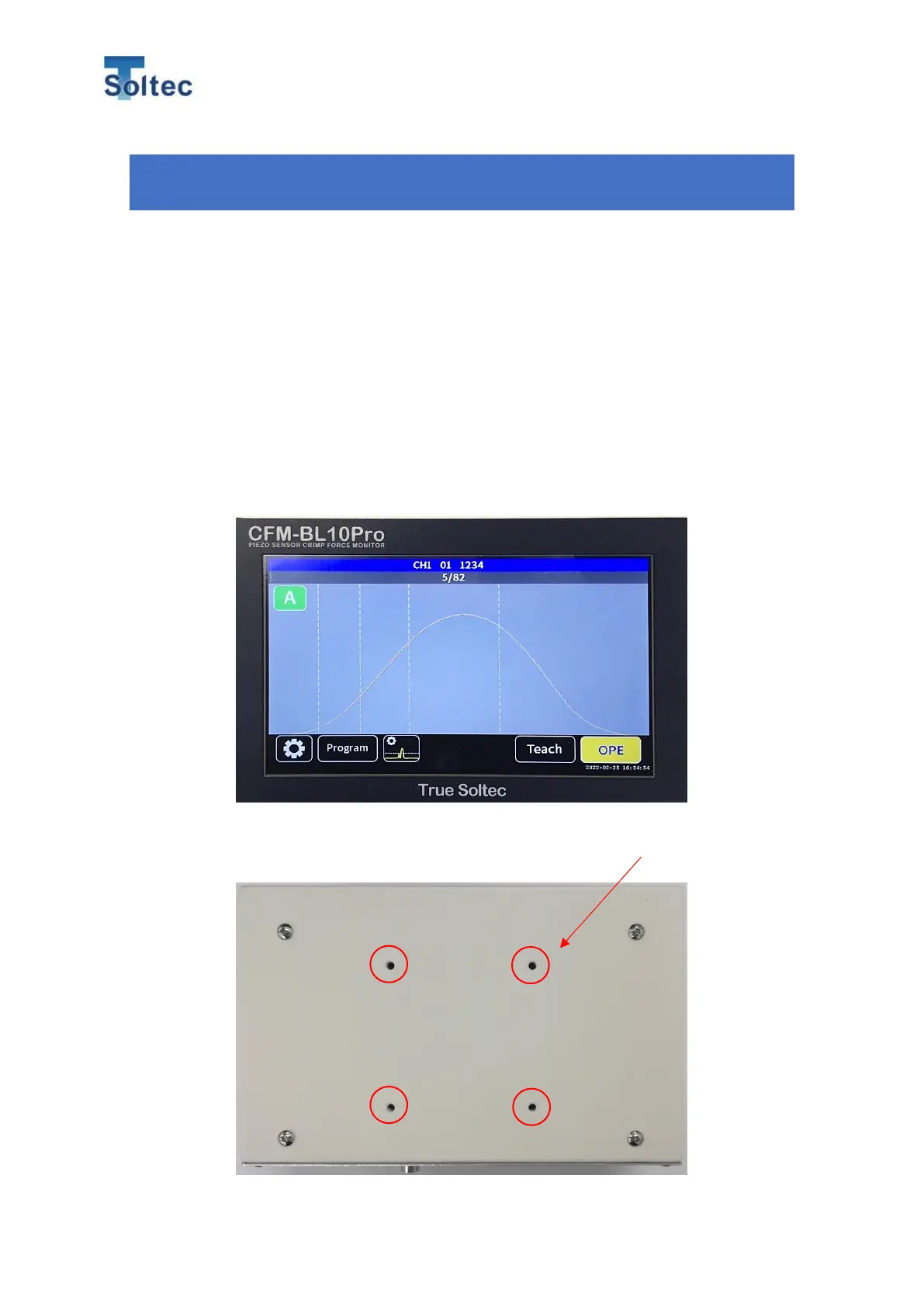

1.2. Main Unit and Accessories
Front
Rear
Bracket Mounting
Screw Holes (M4*4mm)
*Bracket is an optional item.
*Depth of screw holes are
8mm. Do not use screws
with more than 8mm length.
