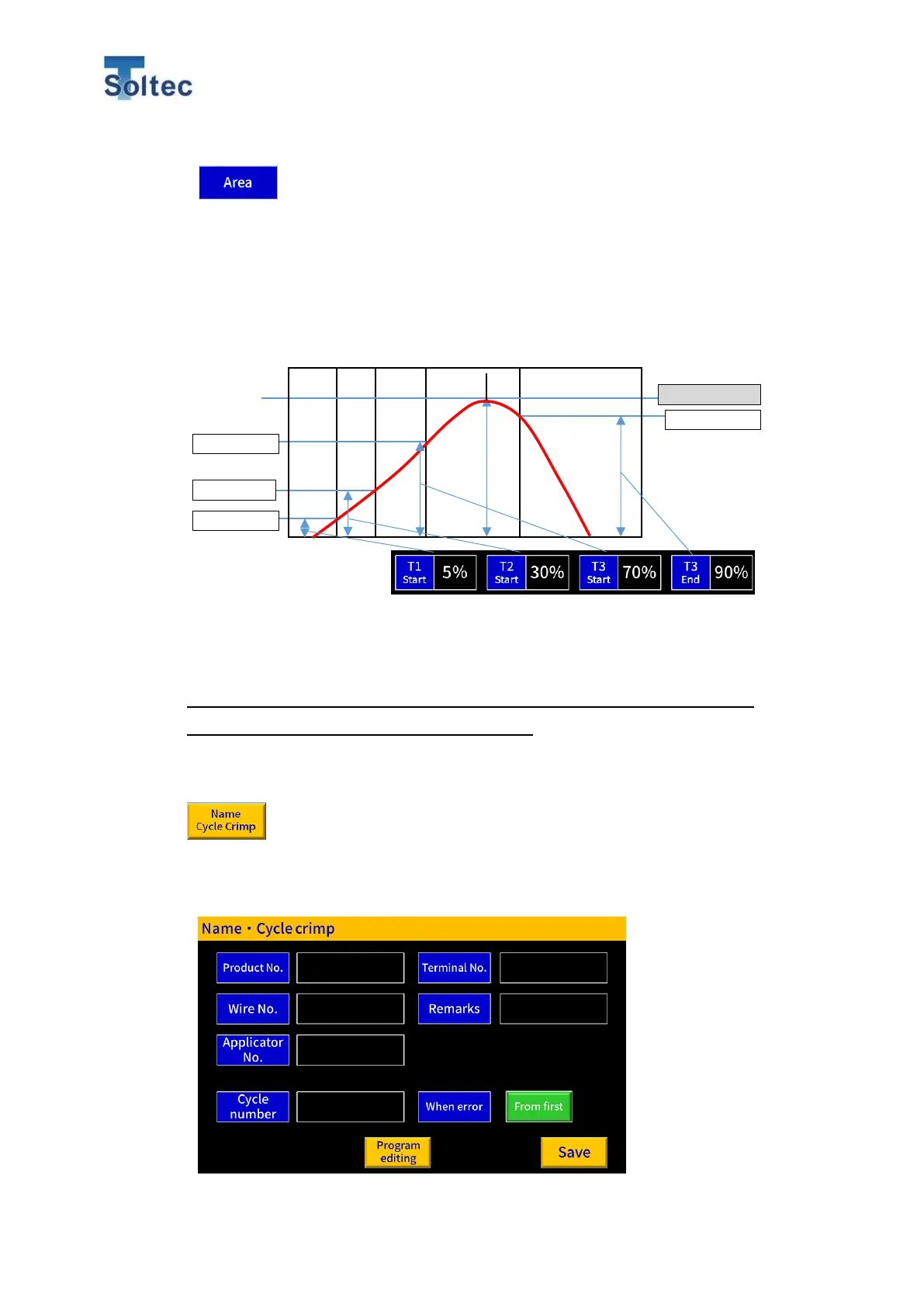

This is a parameter for deciding the dividing line of T1(S1), T2(S2) and T3(S3).
Start and End lines of each area are decided, considering the Peak height as
100%, based on the point where force curve pass thorough the height of selected
start and end %.
The area divisions of T tolerance and S tolerance are common
*Dividing lines cannot over T1 start line< T2 start line <T3 start line and Peak
(100%) > T3 end line.
Attention： Minimum distance of each area are at least 10%. If the area is too
small, CFM cannot correctly carry out judgment.
5.2.2. Name・Cycle crimp
Only when Program is enabled, this button appears. When Program is disabled,
this button does not appear, and the function is not available.
Peak=100%
T3 End%
T3 Start%
T2 Start%
T3
Left
Right
T1 Start%
T2
T1
The initial values are our recommended values.
