CFM-BL10Pro General instruction manual
19 / 87
2.3. Comparison judgement
CFM calculates standard areas of T1 ~ T3. Then, regarding the standard areas as
100%, it compares the standards with the T1 ~ T3 area of every crimping and
calculates differences %. Once the differences % over the tolerance of each area,
CFM judges it as an error. CFM has a S Tolerance in which an error occurs once the
total of larger and smaller deviation of each area overs the tolerance.

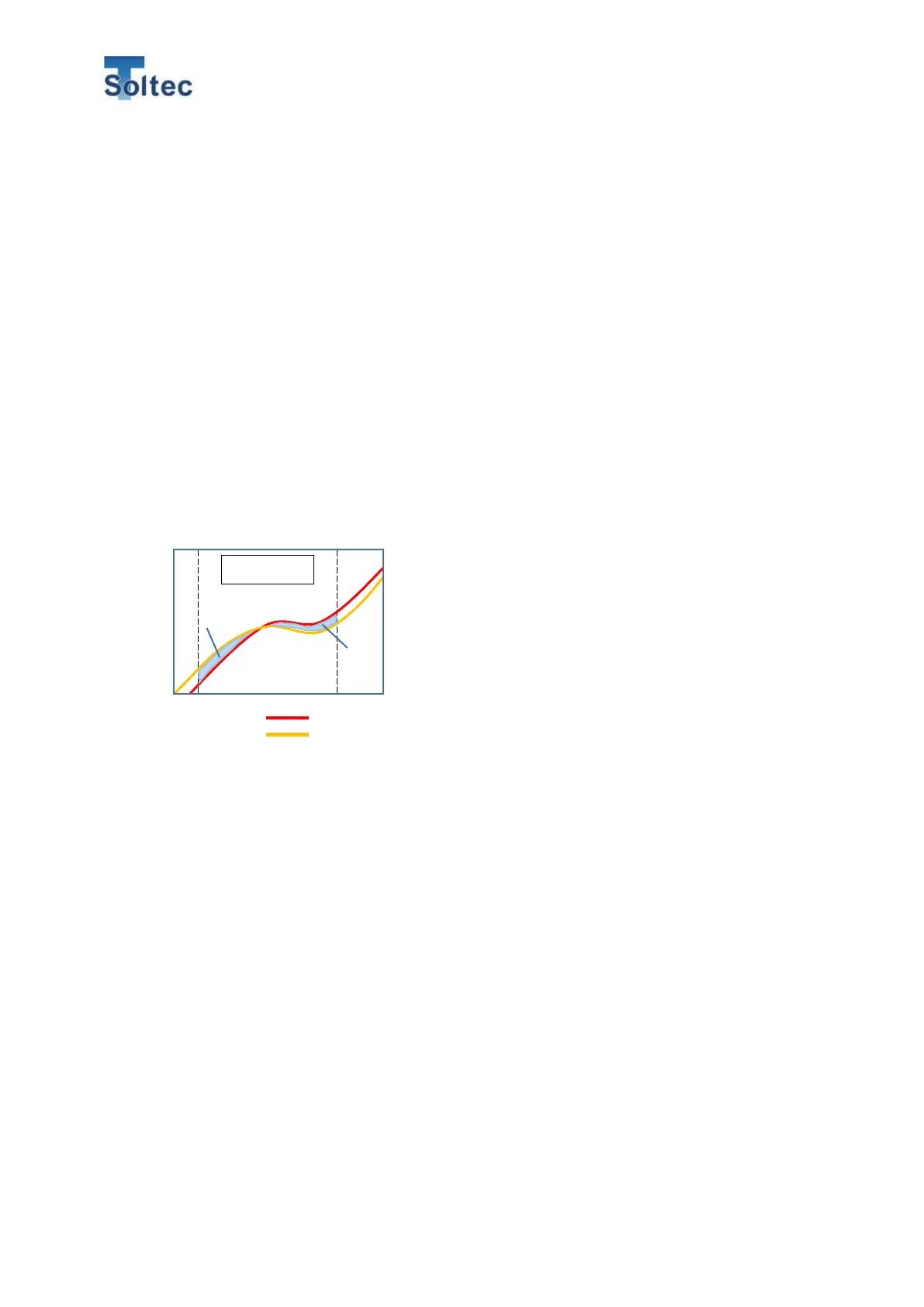

Example of S tolerance
If there are larger area and smaller area than area of reference force curve, the
deviation is cancelled out. In that case, CFM adds up the deviation of larger part and
smaller part and judges it.
- S tolerance only have + tolerance.
- S tolerance can be switched off. The initial setting is OFF.
