CFM-BL10Pro General instruction manual
59 / 87
2) Click “Reconnect” on the bottom left side and update connection status so
that no CFM is connected.
3) Select the COM port number which is displayed in the search area on the
right side of the screen in the Port row and click “Reconnect”.
4) The software recognizes the connected CFM model name.
6.3. Main unit setting screen

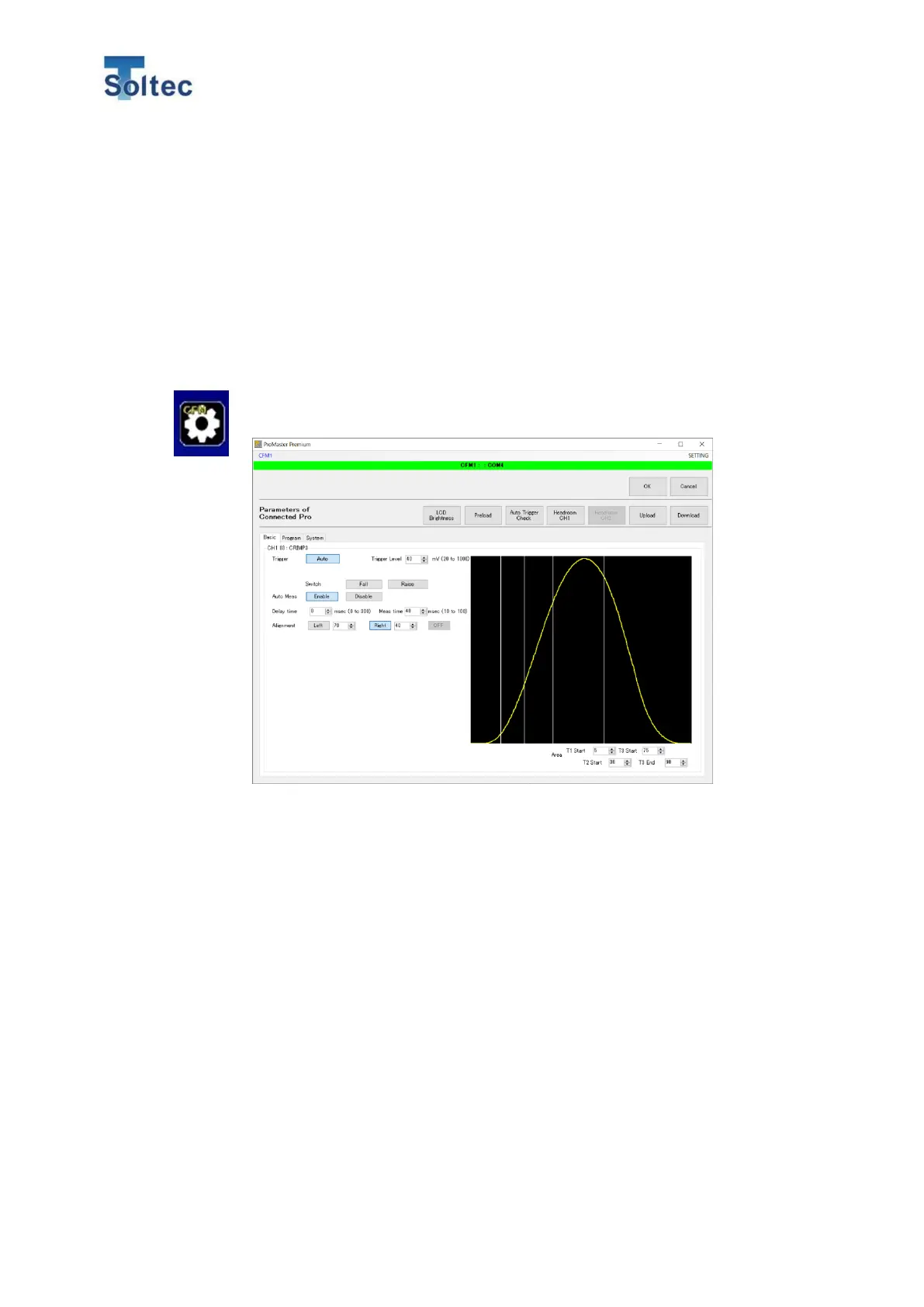

6.3.1. Basic settings (Tab screen)
Click the icon right side on the main screen and open the setting screen.
All the parameter settings can be set from this screen.
In the first screen, the parameter of the selected program can be set when the
Program function is ON. When the Program is enabled, the condition of capturing
force curve for every crimp can be set. The values which are displayed while
connecting the software are the ones which are currently saved in the main uni.
As for the Program function, refer to the 5.2 Program edit for the details.
6.3.2. Program setting (Tab screen)
Click this tab and the program list for the program function will be displayed. Then
you can select, edit, create, delete a program and so on.
From the “Tolerance” button on the top right side, the tolerance of each program
can be confirmed and edited
