CFM-BL10Pro General instruction manual
58 / 87

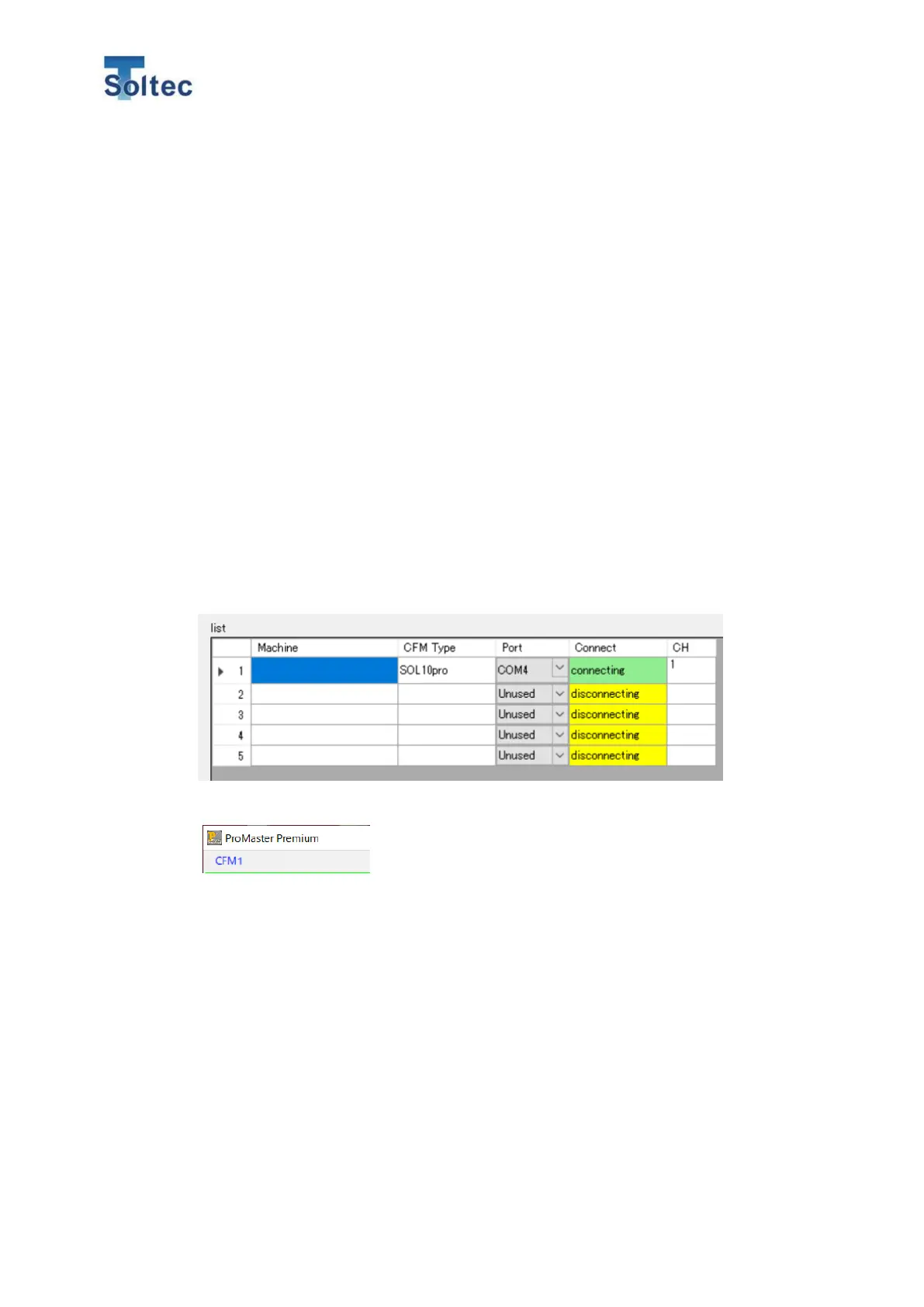

Procedure for connecting several CFM (Maximum 5 units can be connected at the
same time.):
1) Connect all the CFMs with PC via USB cables. If the PC does not have the
enough USB ports for the connection, prepare a USB hub.
2) Turn on all CFMs.
3) Click “SETTING” button on the top right side and open the COM port setting
screen.
4) Click “Search” button on the top right side of the COM port screen.
5) The COM port numbers of all the searched CFM are displayed in the white
box under the Search button
6) Select the COM port numbers assigned to all the CFM on the teach column
from the list on the left side of the screen. When you connect several CFMs at
the same time, it is easy to recognize which COM port numbers are used for
each CFM if you register a Machine number to each CFM in advance.
7) Click “Reconnect” button on the bottom right side.
8) “Disconnecting” at the row “Connect” will be changed to Connect.
9) Click “Accept” button on the bottom right side and close.
Switching button for connecting several units.
Maximum 5 CFM will be displayed on the top left side. Select a CFM which you
would like to operate and switch the screen.
Refresh the COM ports
The software automatically recognizes the model of the main unit and show the
types of CFM. Depending on the model of the CFM, the software changes the
content. If COM post and main unit is not much, refresh the port.
Procedure:
1) Change the COM port number for the connected CFM to “Unused”.
