CFM-BL10Pro General instruction manual
57 / 87

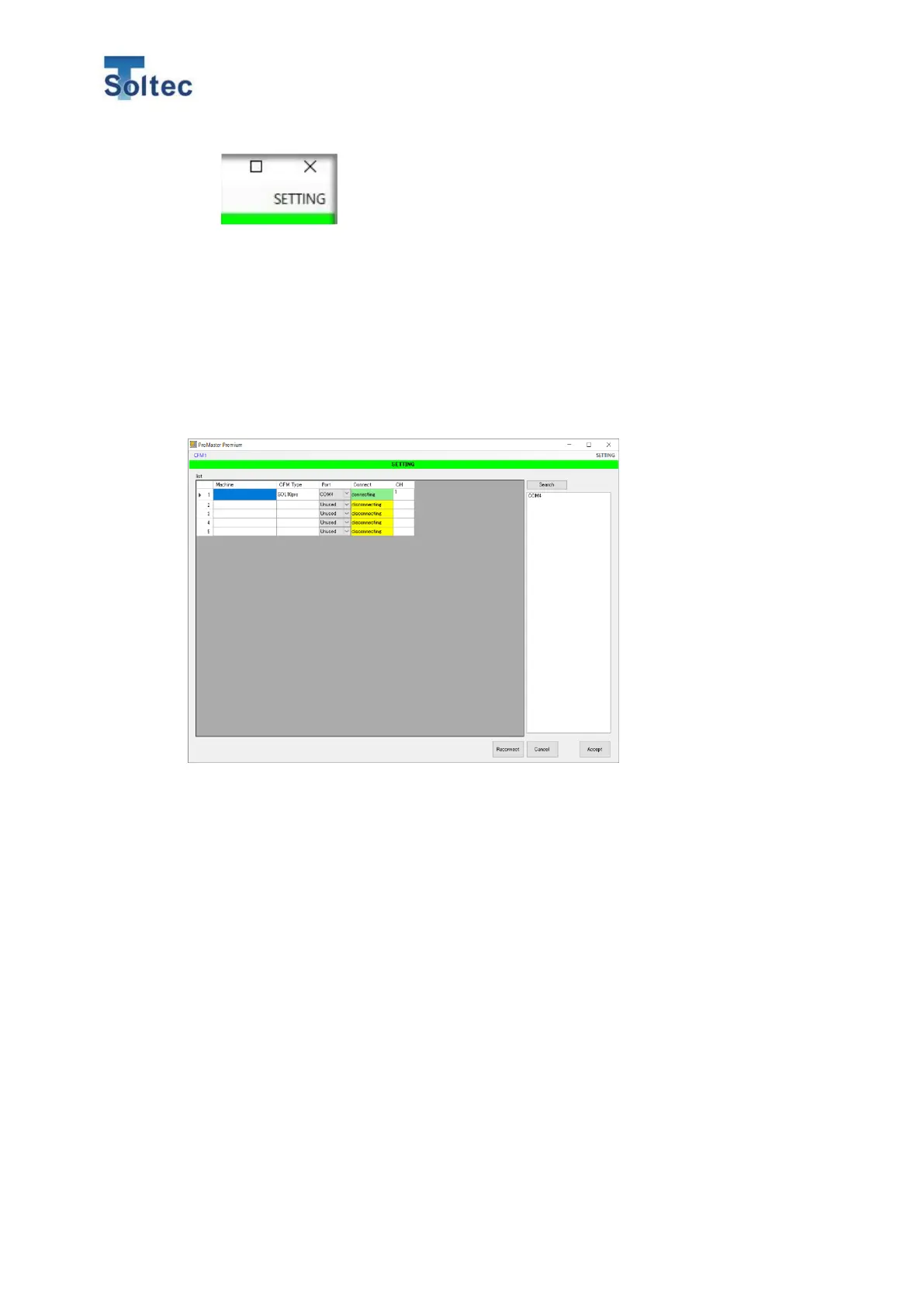

6.2.6. COM port setting
Click “Setting” button at the top right of the Main screen and the COM port setting
screen for the connected CFM will be opened.
The software searches the CFM which is connected to the PC via USB cable, and
COM port can be set and registered the CFM port settings.
Procedure for connecting one CFM:
1) Connect CFM with PC via USB cable.
2) Click “SETTING” button on the top right side. COM port setting screen opens.
3) Click “Search” button on the top right side of the COM port screen.
4) The COM port number of the searched CFM is displayed in the white box
under the Search button.
5) Select the COM port number at the column “1” and row “Port” in the list on the
left side of the screen so that the number will be the same as the searched COM
port number. The number can be selected from the list which is shown by
clicking the check button next to the COM number.
6) Click “Reconnect” button on the bottom right side.
7) “Disconnecting” at the column 1 and row “Connect” will be changed to
“Connected”.
8) Click “Accept” button on the bottom right side and close.
SETTING (Displayed at the right top of the Main screen.)
COM port setting for connecting the main unit will be
opened.
