SonixTouch Q+ Service Manual 00.053.204, Revision A Chapter 3: System Installation
3-9

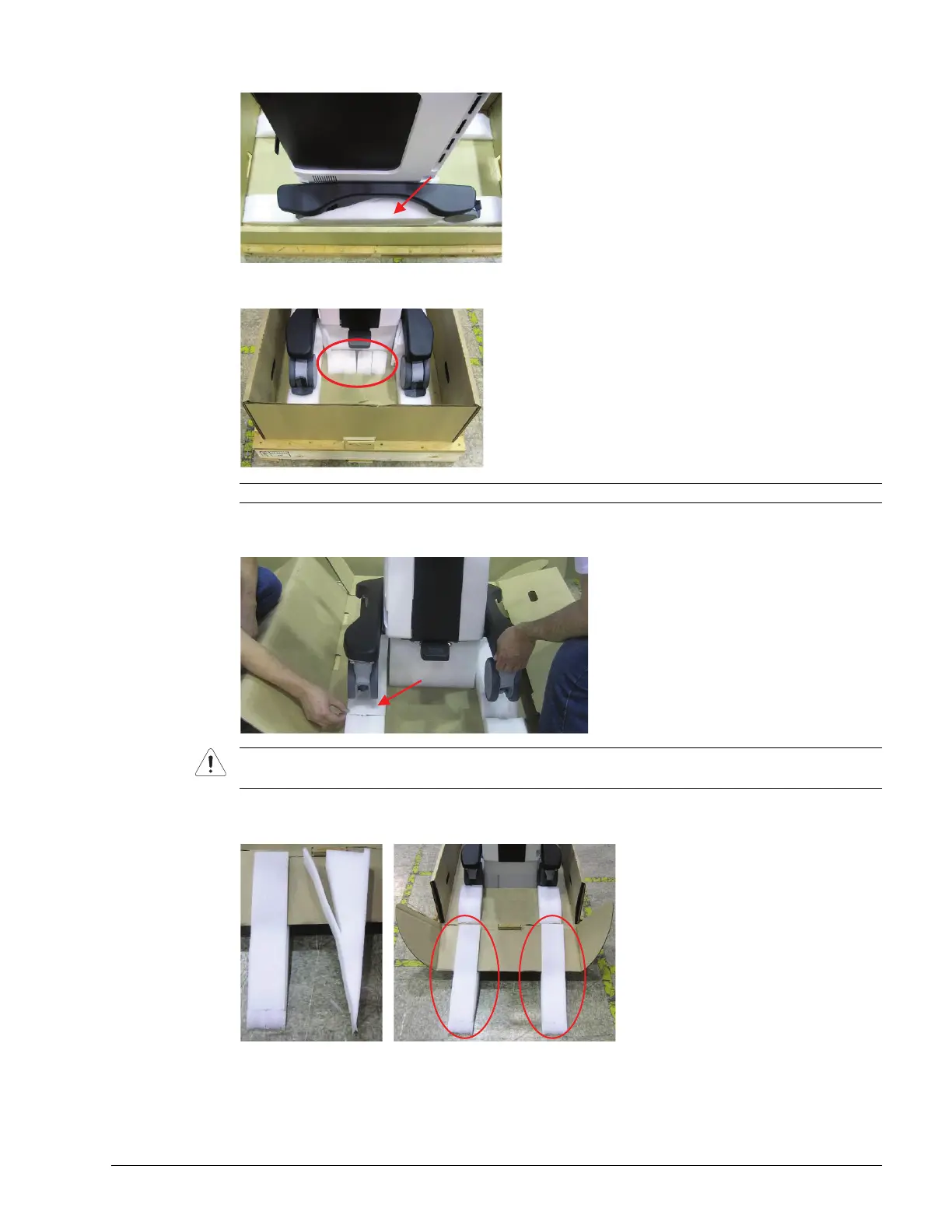

13. Remove the foam ramps from either side of the system.
14. Remove the foam divots.
15. Open out the base and use the rear handles to tip the system back, lifting the front wheels clear the foam
depressions.
16. Using the pre-cut slit in the white foam ramps, insert them onto the unfolded cardboard and align them with the
wheels.
Note: The system can be unloaded either from the front or back of the packing crate.
Caution: Lift by tipping the system from behind using the rear handles and/or lift from the wheelbase.
DO NOT lift using any other part of the system!
