HP10E / HP12E / HP15E / HP20E - Dairy design 7. Cleaning
7-3© VEMAG 2013
• Twist the spindle in far enough for the extraction device to catch and
pull the double screw housing a little way out of the feed cylinder.

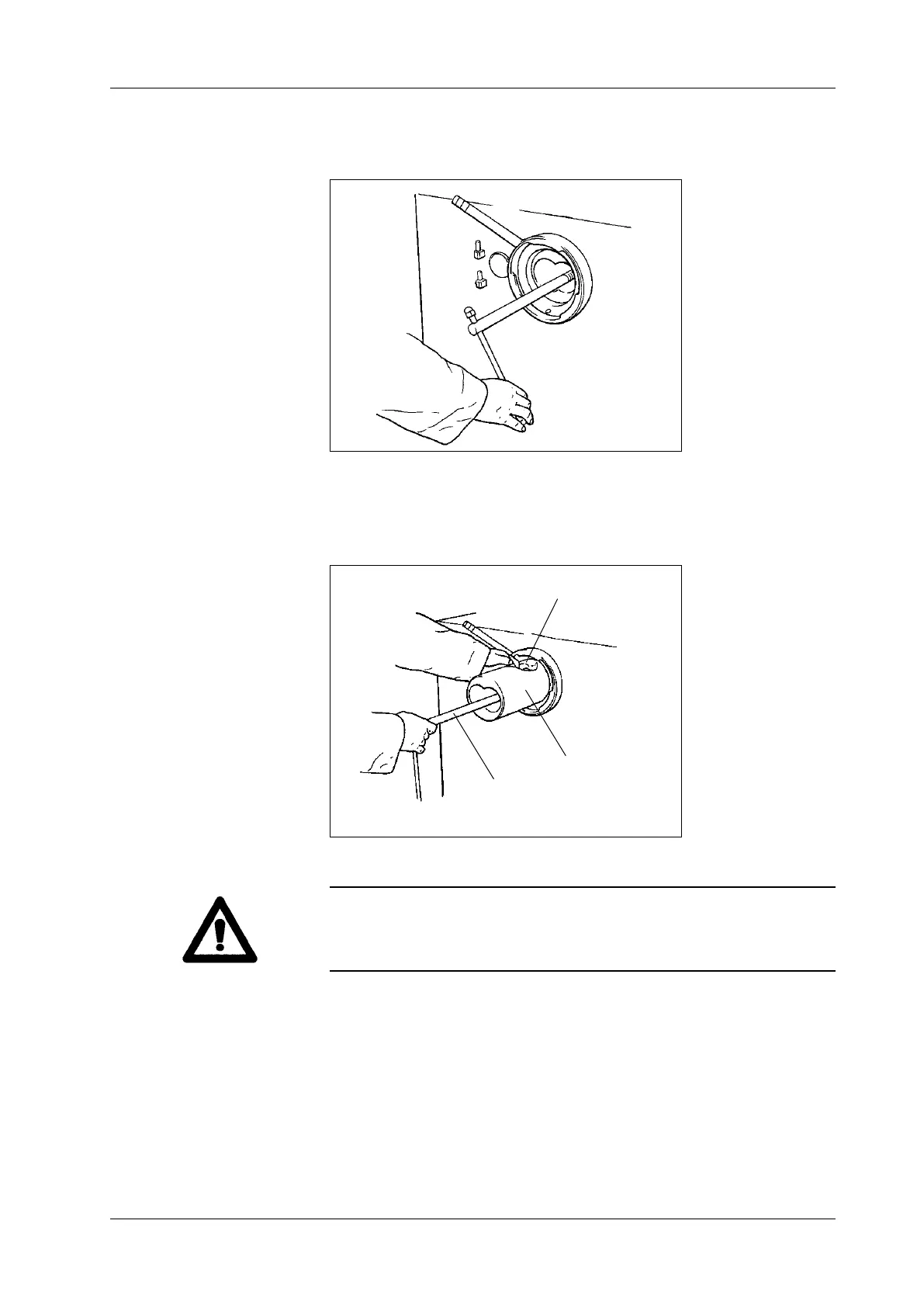

Fig. 7-4
Extraction device catching
• Push down the catch in the inlet bore (1) and pull the extraction device
(2) out of the double screw housing (3).
1 Catch
2 Extraction device
3 Double screw housing
Fig. 7-5
Removing the extraction
device
1
2
3
Warning!
Proceed carefully when removing the extraction device and be sure to
hold the double screw housing/relevant part of the housing steady with
the other hand to avoid dropping it.
