HP10E / HP12E / HP15E / HP20E - Dairy design7. Cleaning

7-8 © VEMAG 2013

7.2.5 Scraper

• Pull scraper (1) off retaining bolt (2) of the feed screw.

1 Scraper

2 Retaining bolt

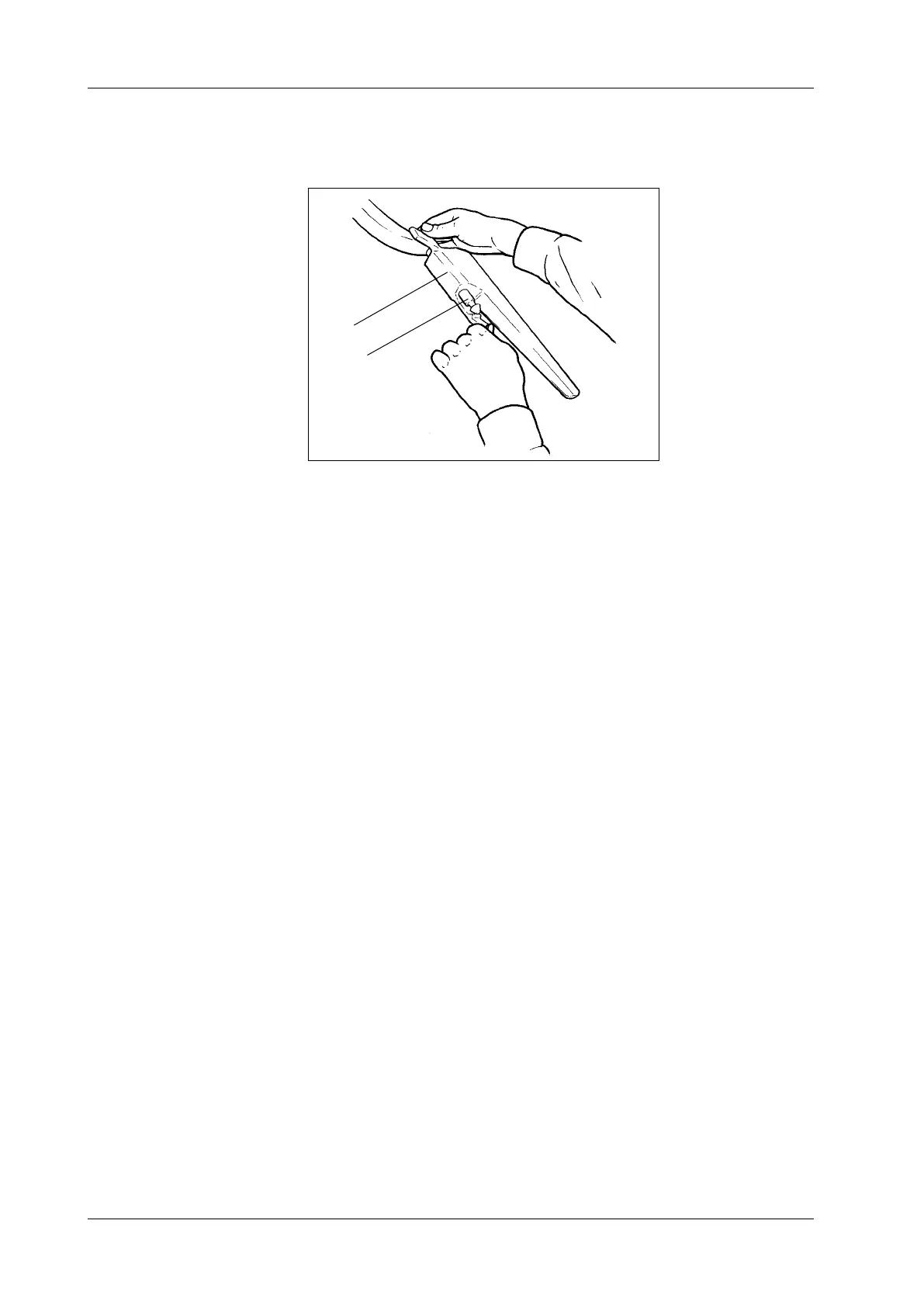

Fig. 7-11

Dismantling the scraper
