HP10E / HP12E / HP15E / HP20E - Dairy design 7. Cleaning
7-9© VEMAG 2013
7.2.6 Vacuum system
• Remove the vacuum pot.
• Take hold of the oat valve on the valve body (1) and pull it off the
intake pipe of the vacuum line in a horizontal direction.
1 Valve body

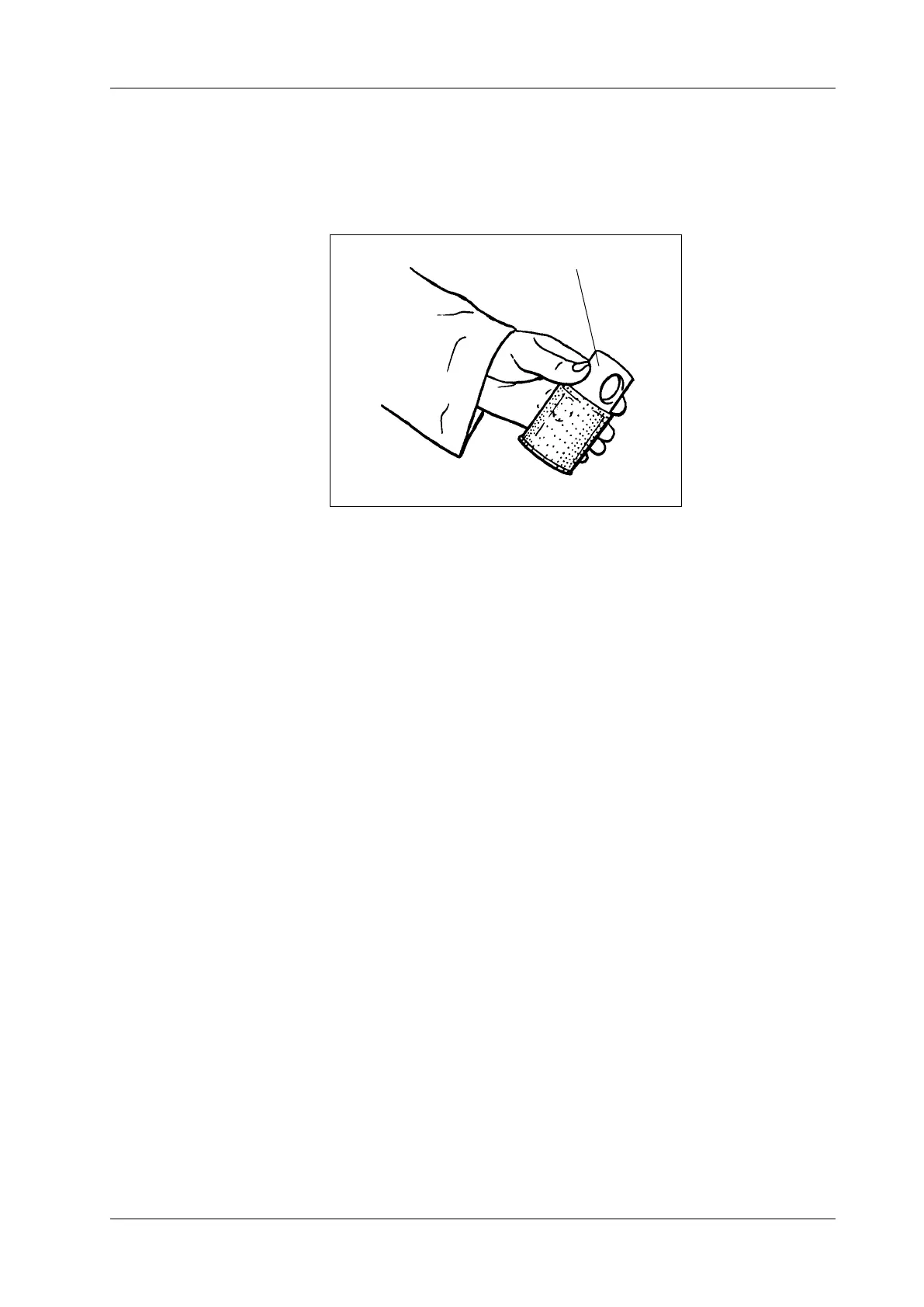

Fig. 7-12
Float valve
1
• The vacuum pot and the valve componentes can be washed either
manually, in a cleaning tank or a dishwasher.
• After cleaning, the vacuum pot and the valve components should be
inspected for any residual product. Following this, it may be sanitized
manually or mechanically with an EPA accepted sanitizing agent.
