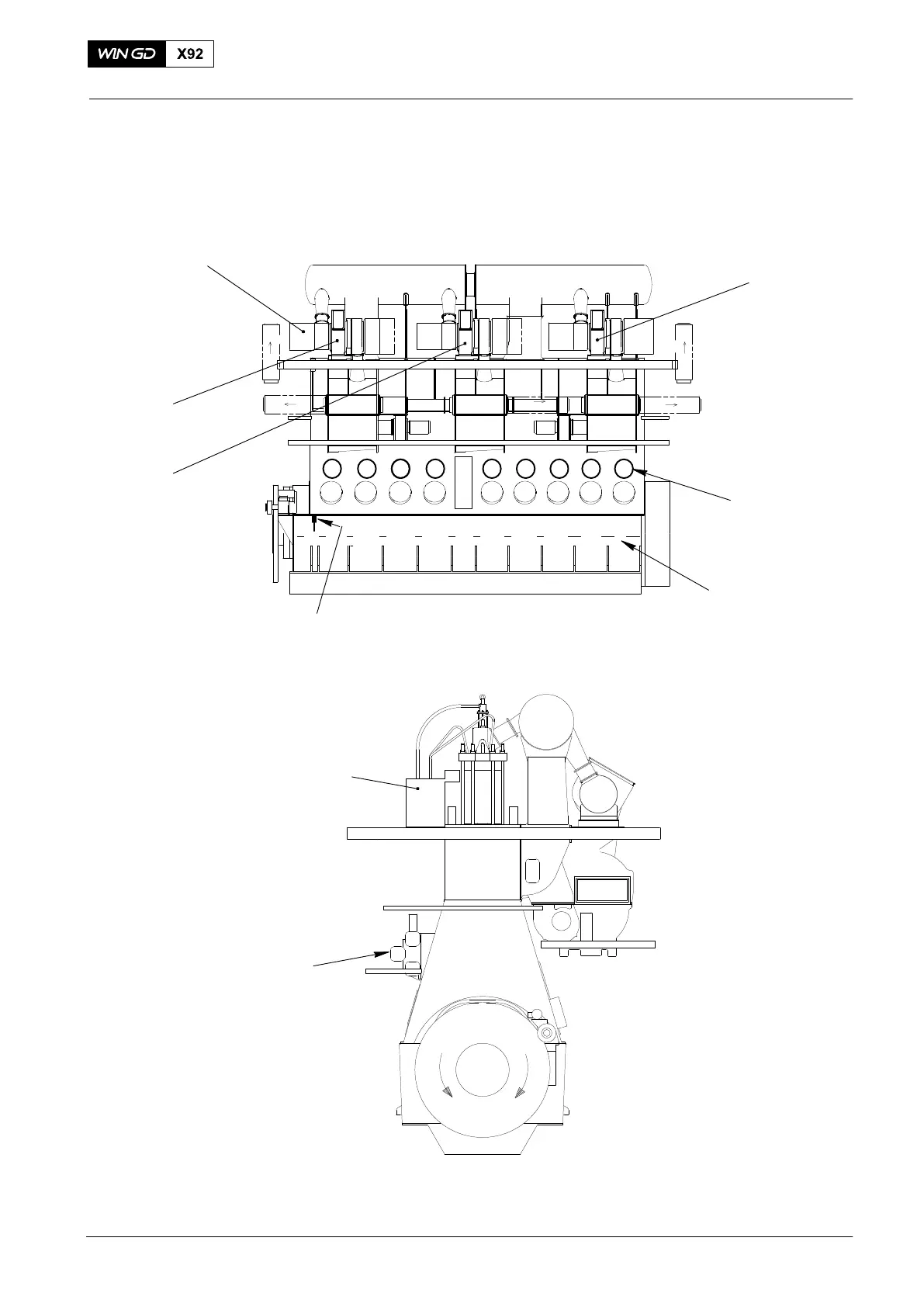

Engine Numbering and Designations
1. General
Turbocharger
Auxiliary
Blower 1
Auxiliary
Blower 3
DRIVING END
Thrust Bearing Pads
Cylinder
Number
FREE END
Main Bearing
Number
Rail Unit
FUEL SIDE EXHAUST SIDE
Supply Unit
WCH02724
123 4 5 6 7 8 9
1 2 3 4 5 6 7 8 9 10 11
Auxiliary
Blower 2
WCH02724
DATA SHOWN IS FOR A
9−CYLINDER ENGINE
