Maintenance
6545−1/A1
Winterthur Gas & Diesel Ltd.
5/ 6
11) Attach chain block 94017-029 (H3) with shackle 94019H to the lug in the gallery as
shown in Fig. 4 and Fig. 5.
12) Attach chain block 94017-029 (H4) with shackle 94019H to the next lug on the
gallery.
13) Attach another chain block 94017-029 (H6) with shackle 94019H to the outer lug on
the gallery.
14) Attach the hook of chain block H3 to the slings on the electric motor (1) and take the
weight over.
15) Use chain blocks (H3), (H4) and (H6) to move the electric motor with lifting tool 94651
to the right as shown in Fig. 5.
16) Take over with engine room crane.
CAUTION
Damage Hazard: Do not put the electric motor on the floor without
an applicable support or damage to the impeller can occur.
17) Carefully move the electric motor to an applicable area.
Note: For data about the procedure to clean the impeller and to replace the ball
bearing, see the documentation of the auxiliary blower manufacturer.

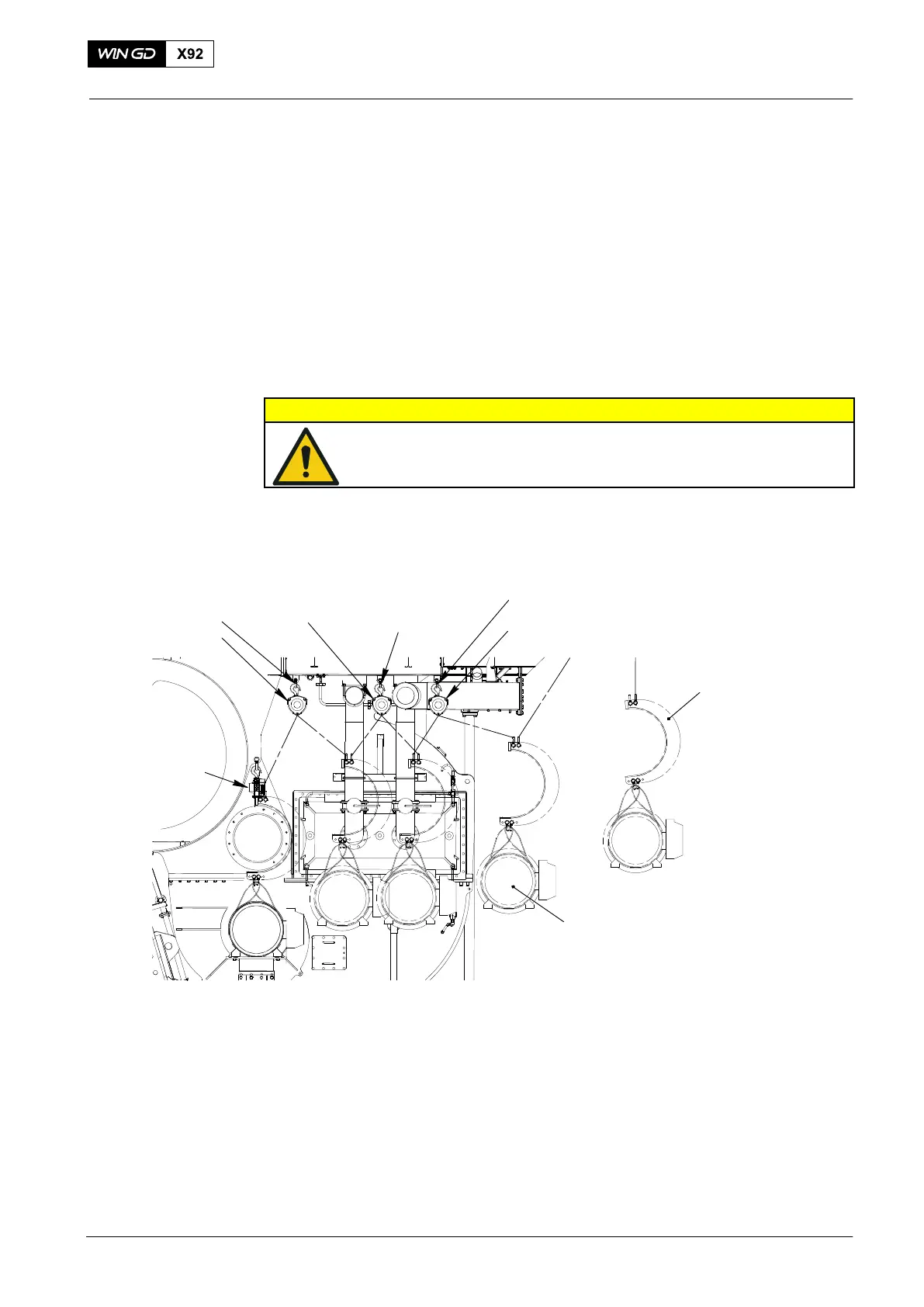

Fig. 5
94019H
94017−029
H3
H1
H4
94019H
94017−029
94019H
94017−029
H6
1
WCH03041
94651
Auxiliary Blower: Maintenance
2015−08
