Maintenance
9403−5/A1
Winterthur Gas & Diesel Ltd.
17/ 41

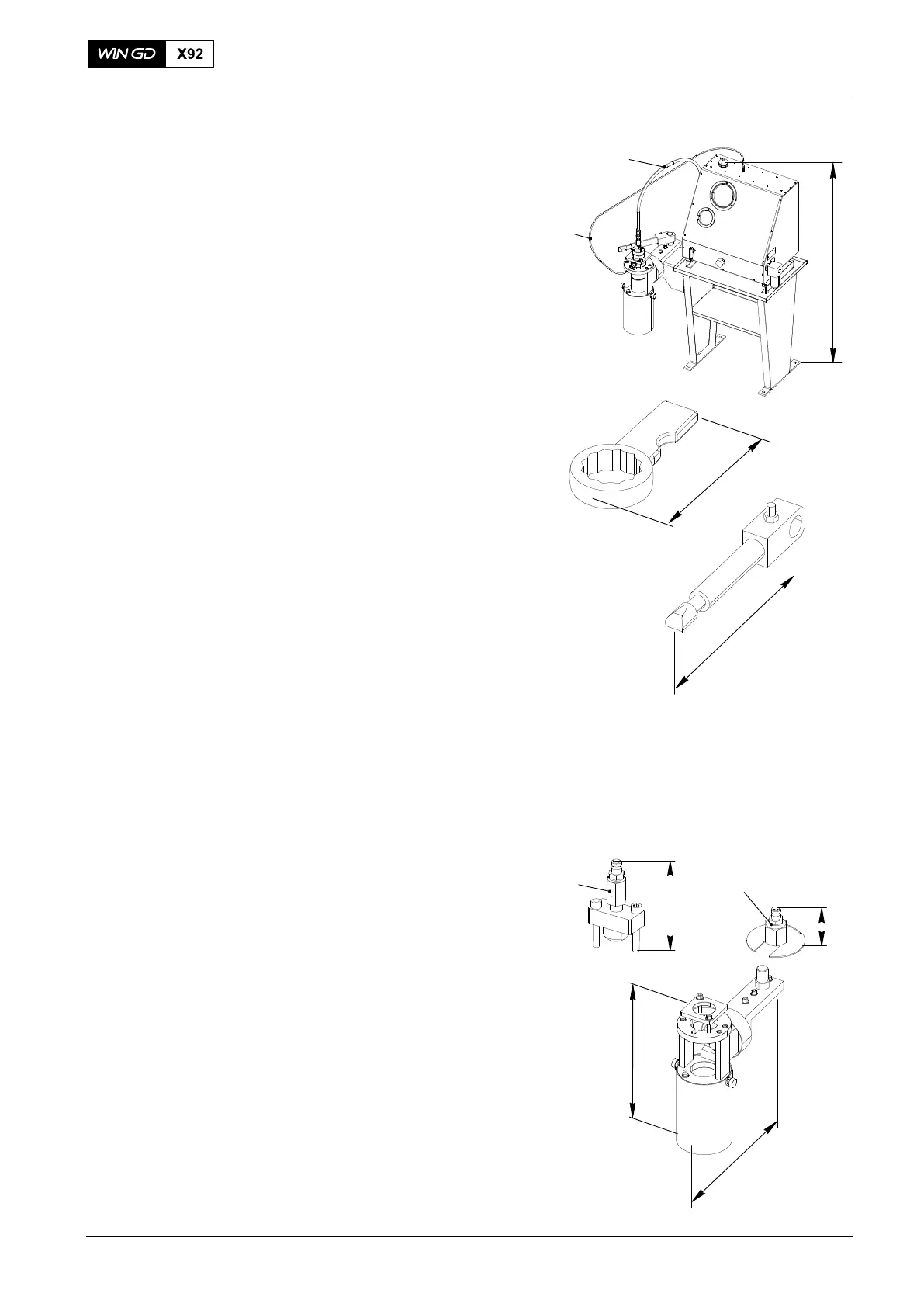

94272 1 OBEL test bench
for setting and testing of:
− injection valve
− safety valve
X = 1458 mm
Mass approx. 186 kg
including:
94269A−70 1 Slugging wrench
for loosening and
tightening of coupling
nut to injection valve
with FAST
X = 232 mm
94269B 1 Hydraulic cylinder
for loosening and
tightening of coupling
nut to injection valve
with FAST
X = 395.5 mm
94272B 1 Connecting piece
for adjusting the injecti
on Valve
X = 131 mm
94272C 1 Valve holder
for checking and
adjusting relief valve to
cylinder Cover and fuel
rail
X = 68 mm
94272D 1 Leakage oil hose
For injetor test bench
X = ca. 2000 mm
94272E 1 HP hose
For injetor test bench
X = ca. 1000 mm
94273 1 Valve holder
to OBEL test bench
for fastening injection
valve
with FAST
X = 582 mm
Y = 535 mm
WCH02327
X
X
94272C
94272B
X
X
Y
WCH02327
WCH01208
X
WCH012
0
X
94272E
94272D
Standard Tools
