WinGD X92 - Page 551

Maintenance
9403−5/A1
Winterthur Gas & Diesel Ltd.
19/ 41

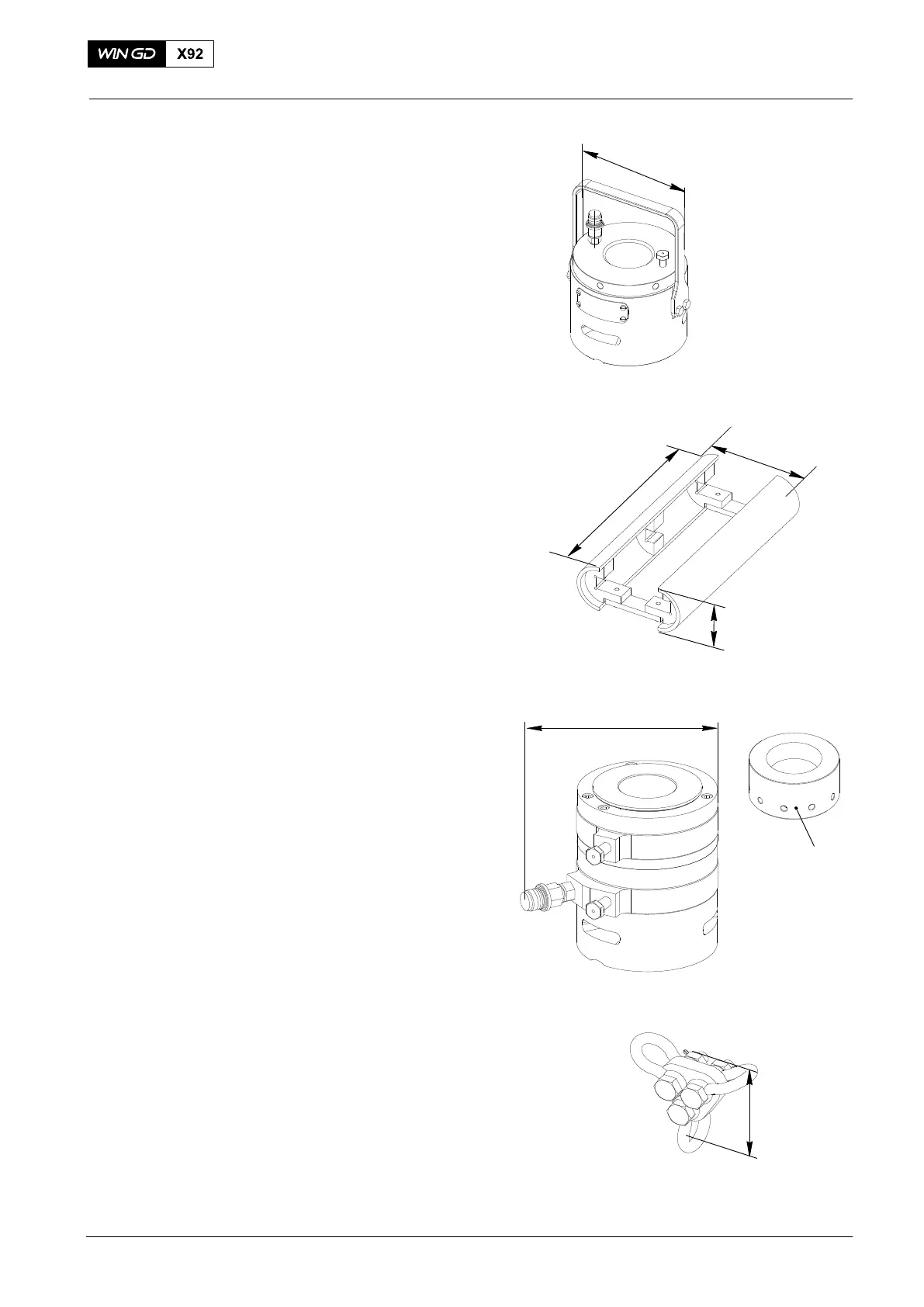

94315 2 Pre-tensioning jacks
for connecting rod studs to top end
bearing,
X = 193.6 mm
WCH02831
X
94319 1 Deviation pipe
X = 400 mm
Y = 207 mm
Z = 89.4 mm
Y
X
Z
WCH03403
94320 1 Pre-tensioning jack
for screwed connection of turning
gear, and round nut 94320A
X = 200 mm
including:
94320A 1 Round nut
for pre−tensioning jack 94320
X
94320A
017.884/08
94321 1 Link
For connecting rod assembly
X = 299 mm
X
WCH02266
Standard Tools
2017−11
