WinGD X92 - Page 565

Maintenance
9403−5/A1
Winterthur Gas & Diesel Ltd.
33/ 41
94663A−B24
94663A−B25
94663A−B27
94663A−B22
1
1
1
1

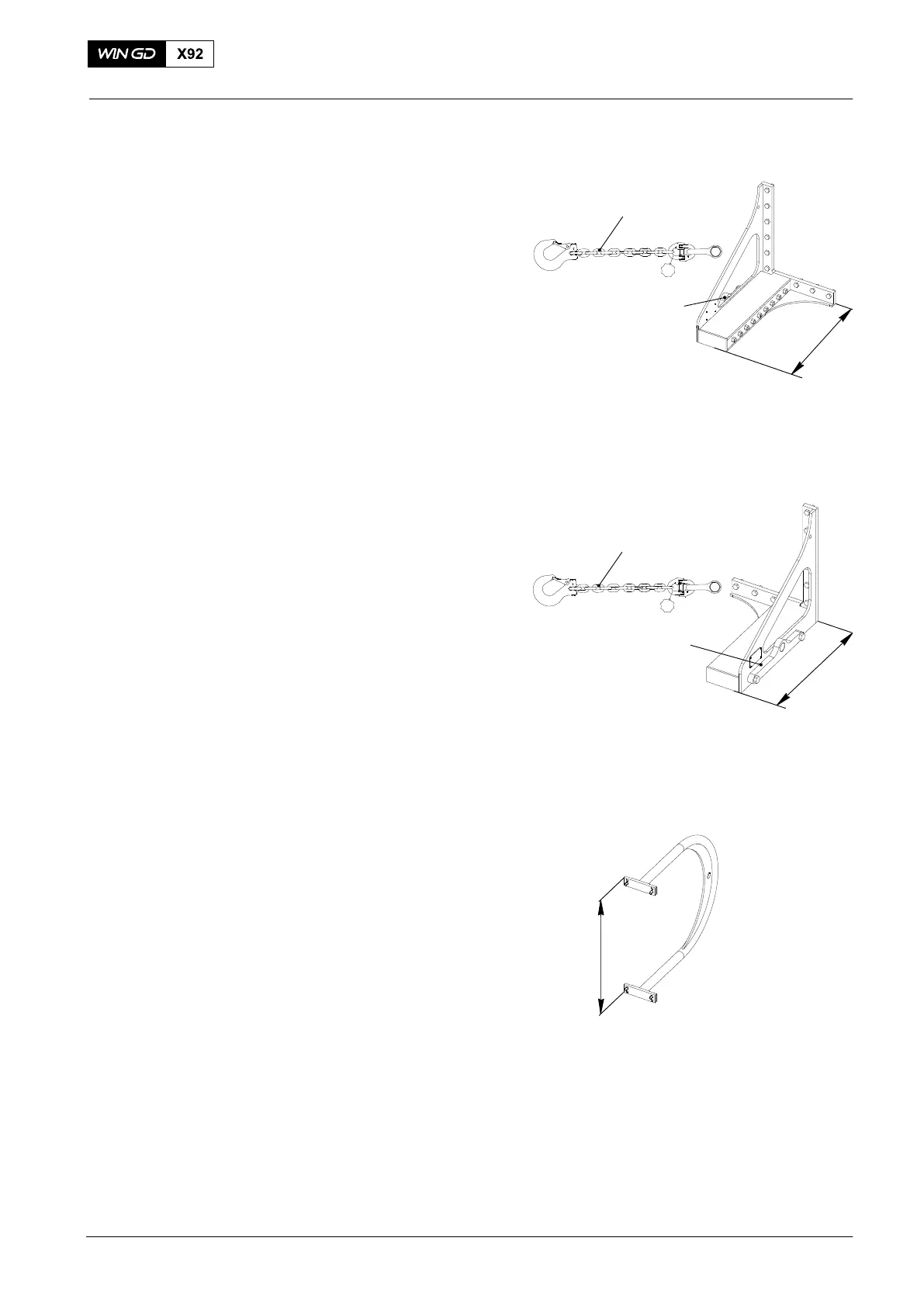

Support left
includes safety chain 94663D and
safety lug 94663C
for scavenge air cooler SAC B24-SF
X = 682 mm, WLL 2200kg, 59.5 kg
for scavenge air cooler SAC B25-SF
X = 682 mm, WLL 2200kg, 59.5 kg
for scavenge air cooler SAC B27-SF
X = 682 mm, WLL 2400kg, 59.5 kg
includes safety chain 94663D and
safety lug 94663C−B22
for scavenge air cooler SAC B22-SF
X = 682 mm, WLL 200kg, 58.7 kg
94663D
94663C
X
WCH03062
94663C−B22
94663B−B24
94663B−B25
94663B−B27
94663B−B22
1
1
1
1
Support right
Includes safety chain 94663D and
safety lug 94663C
for scavenge air cooler SAC B24-SF
X = 682 mm, WLL 2200kg, 59.5 kg
for scavenge air cooler SAC B25-SF
X = 682 mm, WLL 2200kg, 59.5 kg
for scavenge air cooler SAC B27-SF
X = 682 mm, WLL 2400kg, 59.5kg
Includes safety chain 94663D and
safety lug 94663C−B22
for scavenge air cooler SAC B22-SF
X = 682 mm, WLL 2200kg, 58.7 kg
WCH03062
X
94663D
94663C
94663C−B22
94663I
94663L
94663M
1
1
1
Support
for installation of scavenge air cooler
B22−SF
X = 985 mm
Support
for installation of scavenge air cooler
B24/B25−SF
X = 1045 mm
Support
for installation of scavenge air cooler
B27−SF
X = 1133 mm
X
WCH02285
Standard Tools
2017−11
