WinGD X92 - Page 567

Maintenance
9403−5/A1
Winterthur Gas & Diesel Ltd.
35/ 41

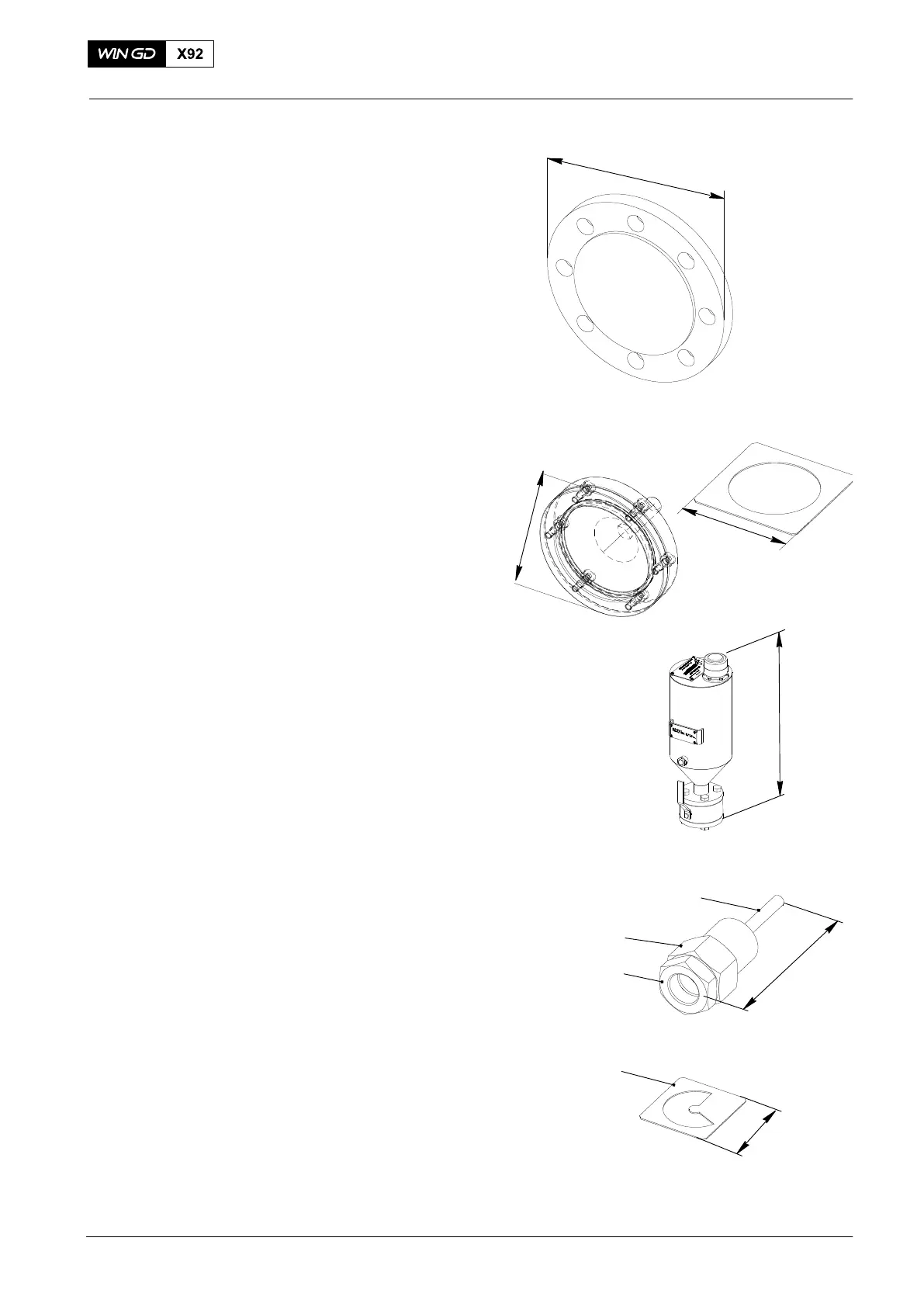

94831 1 Blind flange
for blanking off starting air pipe during
emergency operation
X= ∅ 275 mm
WCH02289
X
94841
94841A
1
1
Grinding tool
for hydraulic pipe
X = ∅ 85 mm, R100
Stencil
Y = 55 mm
WCH02853
Y
X
94841
94841A
94844 1 Lubrication device
for supply unit lubrication during
maintenance
X = 604 mm
WCH03483
X
94870 1 Grinding tool
for sealing surfaces on HP fuel pipe
X = 166 mm
including:
94870E 1 Screw-on sleeve
AF60
94870F 1 Grinding tool
with countersunk screw M8
94870G 1 Lock nut
M36x2, AF55
94870H 1 Template
X = 70 mm
94870H
94870G
94870E
94870F
016.741/08
X
X
016.776/08
Standard Tools
2017−11
