GENERAL
B2420, WSM
G-45

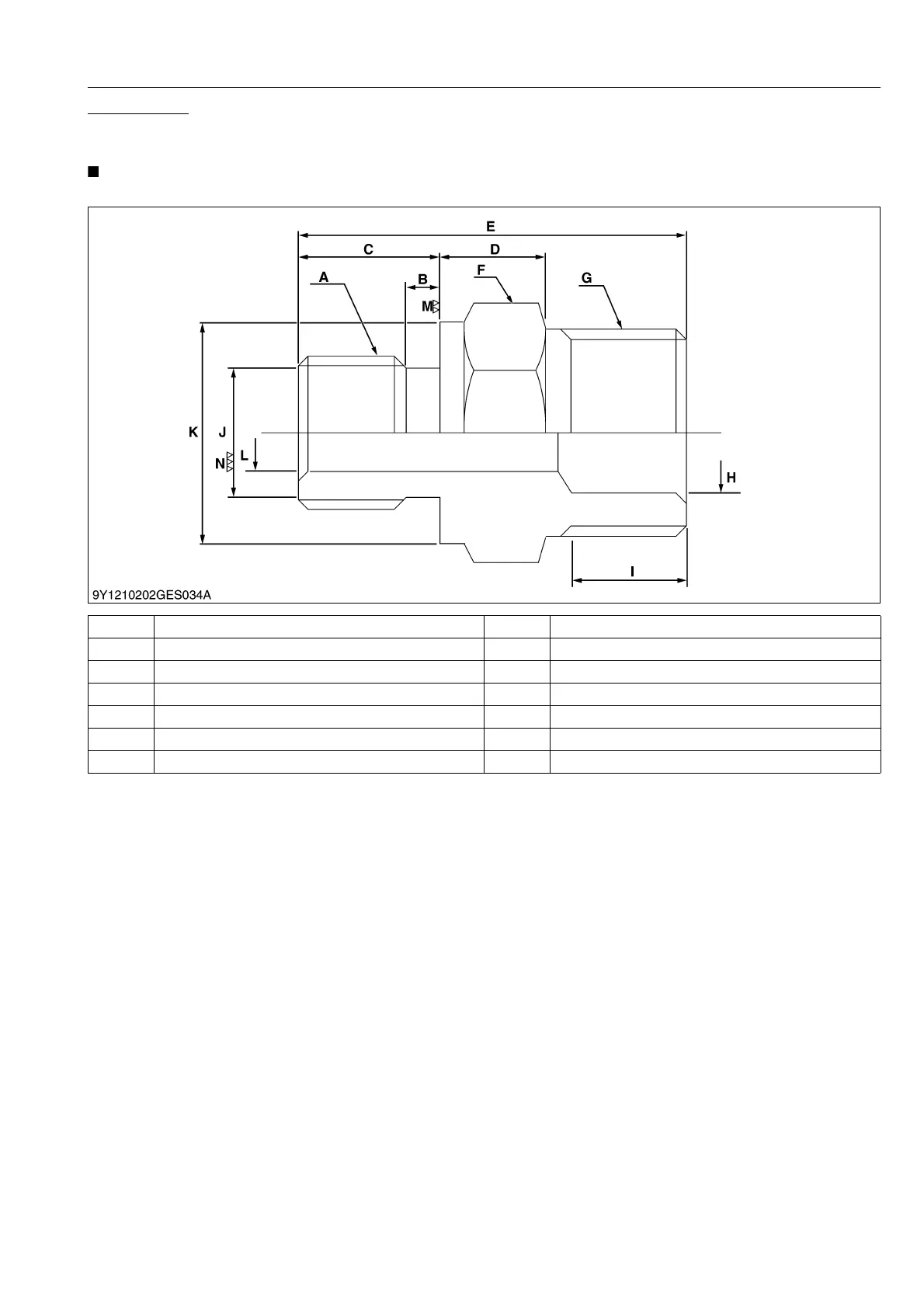

Adaptor Joint
Application
• Use for connecting the adaptor 66 to the hydraulic pump (power steering side).
NOTE
• This special tool is not provided, so make it referring to figure
9Y1210436GEG0060US0
A G 1/4 H 10.5 mm dia. (0.413 in. dia.)
B 3 mm (0.1 in.) I 8 mm (0.3 in.)
C 10 mm (0.39 in.) J 10.92 to 11.05 mm dia. (0.4299 to 0.4350 in. dia.)
D 9.0 mm (0.35 in.) K 17 mm dia. (0.67 in. dia.)
E 29 mm (1.1 in.) L 6 mm dia. (0.2 in. dia.)
F HEX 16.7 to 17.0 mm (HEX 0.657 to 0.669 in.) M 25 µm (980 µin.)
G G 3/8 N 6.3 µm (250 µin.)
