GENERAL
B2420, WSM
G-44

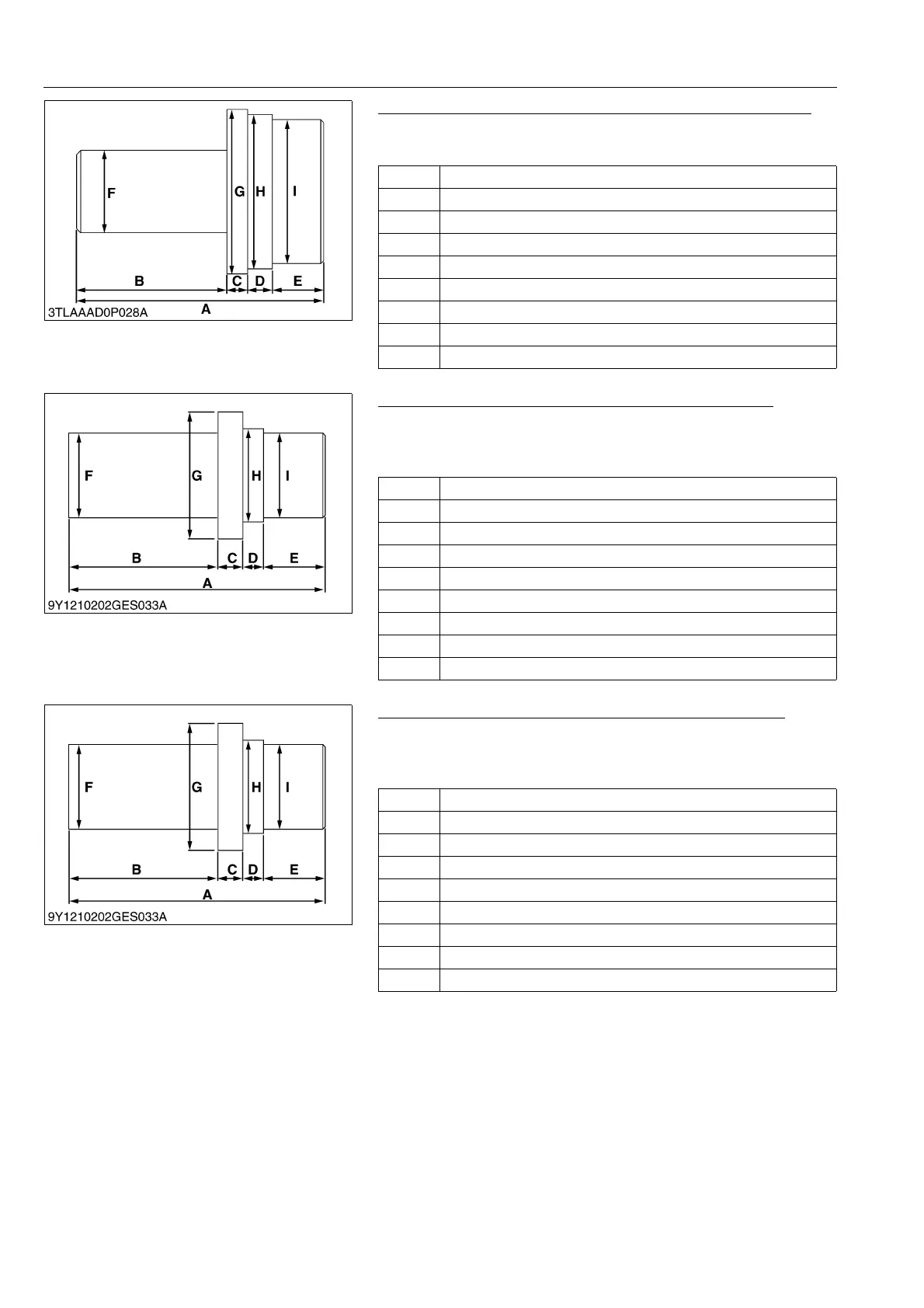

Bushing Replacing Tool, for 4WD front Axle Bracket (Rear)
Application
• Use to press fit the bushing.
9Y1210436GEG0057US0
Hydraulic Arm Shaft Bushing Press-Fitting Tool (Left)
Application
• Use for replacing the hydraulic arm shaft bushings in the
hydraulic cylinder body.
9Y1210436GEG0058US0
Hydraulic Arm Shaft Bushing Press-Fitting Tool (Right)
Application
• Use for replacing the hydraulic arm shaft bushings in the
hydraulic cylinder body.
9Y1210436GEG0059US0
A 130 mm (5.12 in.)
B 71 mm (2.9 in.)
C 15 mm (0.59 in.)
D 14 mm (0.55 in.)
E 30 mm (1.2 in.)
F 40 mm dia. (1.57 in. dia.)
G 100 mm dia. (3.94 in. dia.)
H 70 mm dia. (2.8 in. dia.)
I 65 mm dia. (2.6 in. dia.)
A 120 mm (4.72 in.)
B 74 mm (2.9 in.)
C 10 mm (0.39 in.)
D 8 mm (0.3 in.)
E 28 mm (1.1 in.)
F 40 mm dia. (1.6 in. dia.)
G 60 mm dia. (2.4 in. dia.)
H 43.6 mm dia. (1.72 in. dia.)
I 34 mm dia. (1.3 in. dia.)
A 120 mm (4.72 in.)
B 74 mm (2.9 in.)
C 10 mm (0.39 in.)
D 8 mm (0.3 in.)
E 28 mm (1.1 in.)
F 40 mm dia. (1.6 in. dia.)
G 60 mm dia. (2.4 in. dia.)
H 43.6 mm dia. (1.72 in. dia.)
I 34 mm dia. (1.3 in. dia.)
KiSC issued 06, 2012 A
