February 2013
4-258
ColorQube® 9303 Family
REP 62.11
Repairs/Adjustments

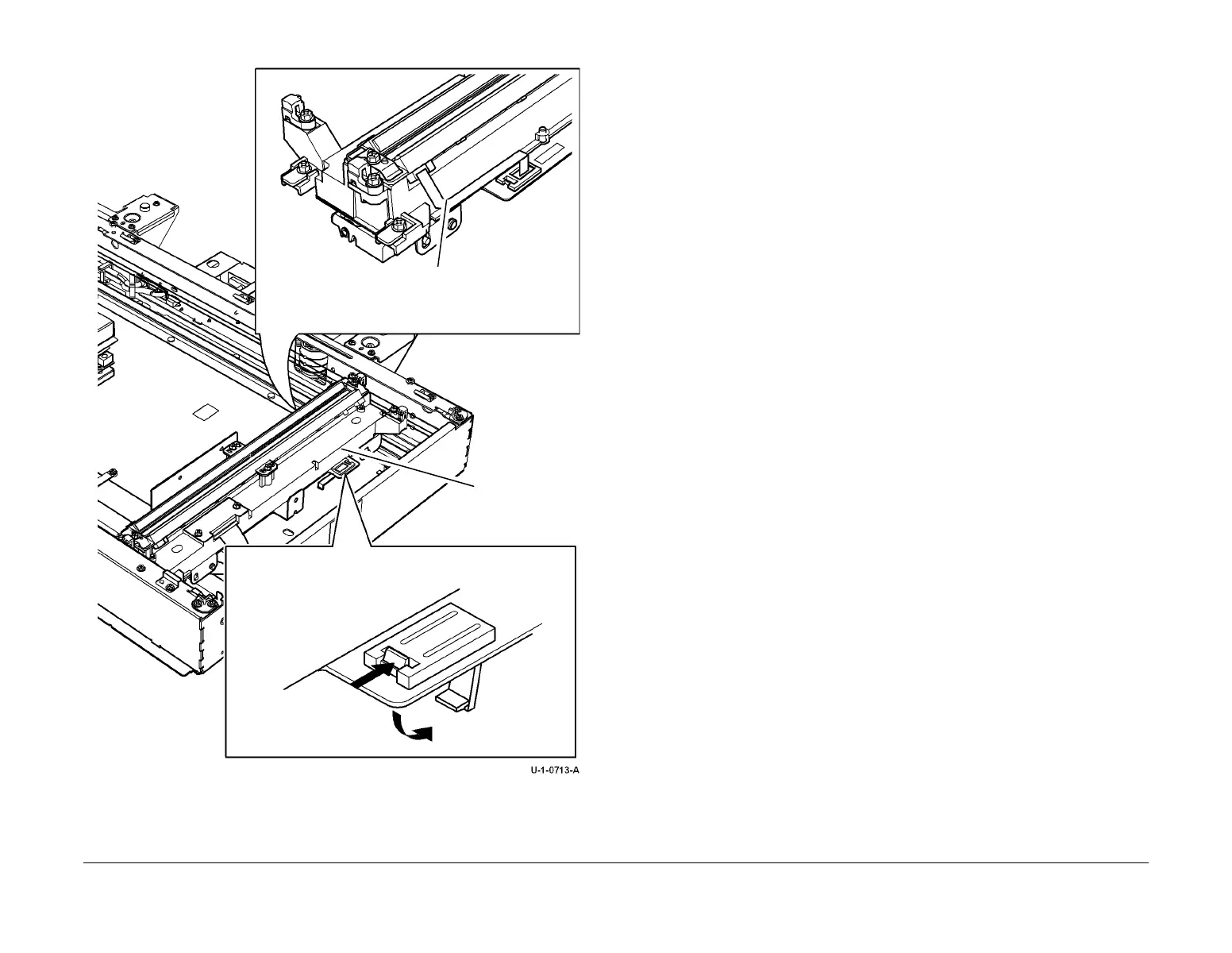

Figure 1 Removal
Replacement
1. The replacement procedure is the reverse of the removal procedure.
2. Ensure that the ribbon harness is routed flat on the under side of the scan carriage to
avoid rubbing on the scanner PWB cover. When re-connected, the metal contacts on the
ribbon cable must face down, away from the scan carriage.
3. Perform ADJ 62.1 Optics Cleaning.
1
If necessary, carefully
move the scan carriage
assembly to the left.
2
Carefully lower the
securing clip bar.
3
Remove the harness.
Scan carriage
assembly
To Next Page
