February 2013
5-29
ColorQube® 9303 Family
PL 12.65
Parts Lists

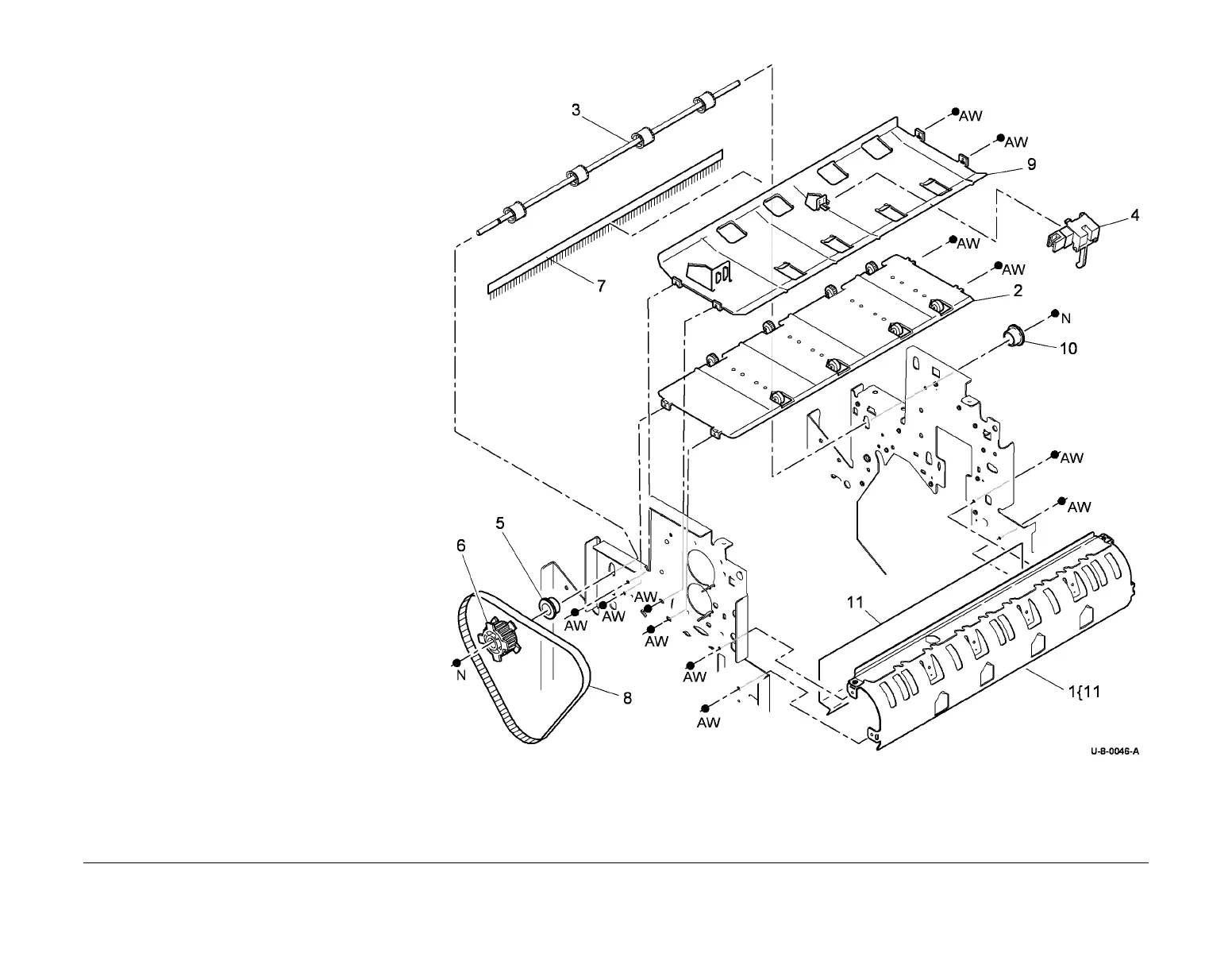

PL 12.65 LCSS Bin 1 Entry
Item Part Description
1 032K04610 Left hand paper guide
2 032K04590 Lower right hand paper guide
3 006K32790 Ejector drive shaft
4 130E11440 Compiler exit sensor (Q12-107)
5 013E25790 Nylon bearing
6 – Pulley (Not spared)
7 115E11810 Static eliminator (stacker)
8 023E24340 Paper output drive belt
9 – Upper right hand paper guide (Not
spared)
10 013E25800 Copper bearing
11 – Mylar safety cover (P/O PL 12.65
Item 1)
