ColorQube® 9303 Family
REP 12.34-171, REP 12.35-171
Repairs/Adjustments
REP 12.34-171 Inserter Jam Clearance Guide Assembly
Parts List on PL 12.125.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine GP 14. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. Remove the HVF front door, REP 12.1-171
2. Remove the HVF top cover, REP 12.1-171.
3. Remove the HVF front cover, REP 12.1-171.
4. Figure 1. Remove the pivot screw from the front end of the Inserter jam clearance guide.
Figure 1 Pivot screw removal.
5. Remove the guide through the front opening.
Replacement
1. The replacement procedure is the reverse of the removal procedure.
REP 12.35-171 Diverter Exit Gate
Parts List on PL 12.125.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine GP 14. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. Remove the HVF front door, REP 12.1-171.
2. Remove the HVF top cover, REP 12.1-171.
3. Remove the HVF front cover, REP 12.1-171.
4. Remove the HVF rear cover, REP 12.1-171.
5. Figure 1. At the rear of the HVF, remove the solenoid arm, the K-L clip and the bush from
the diverter shaft.

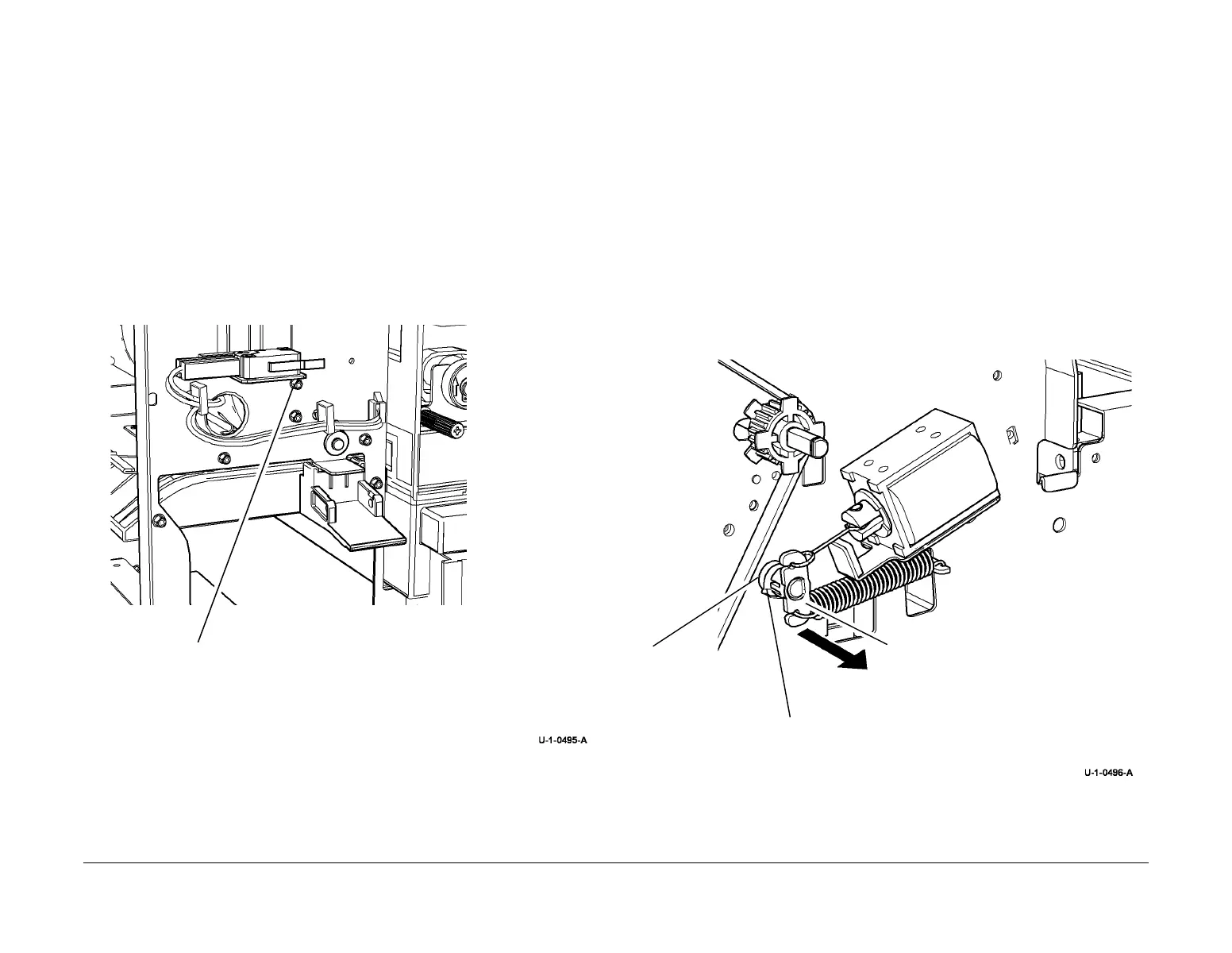

Figure 1 Removal preparation
1
Remove the pivot screw.
1
Pull the solenoid arm
from the shaft.
2
Remove the K-L clip.
3
Remove the bush.
REAR VIEW
