Xerox ColorQube 9303 Series Service Manual

February 2013
5-58
ColorQube® 9303 Family
PL 12.315
Parts Lists

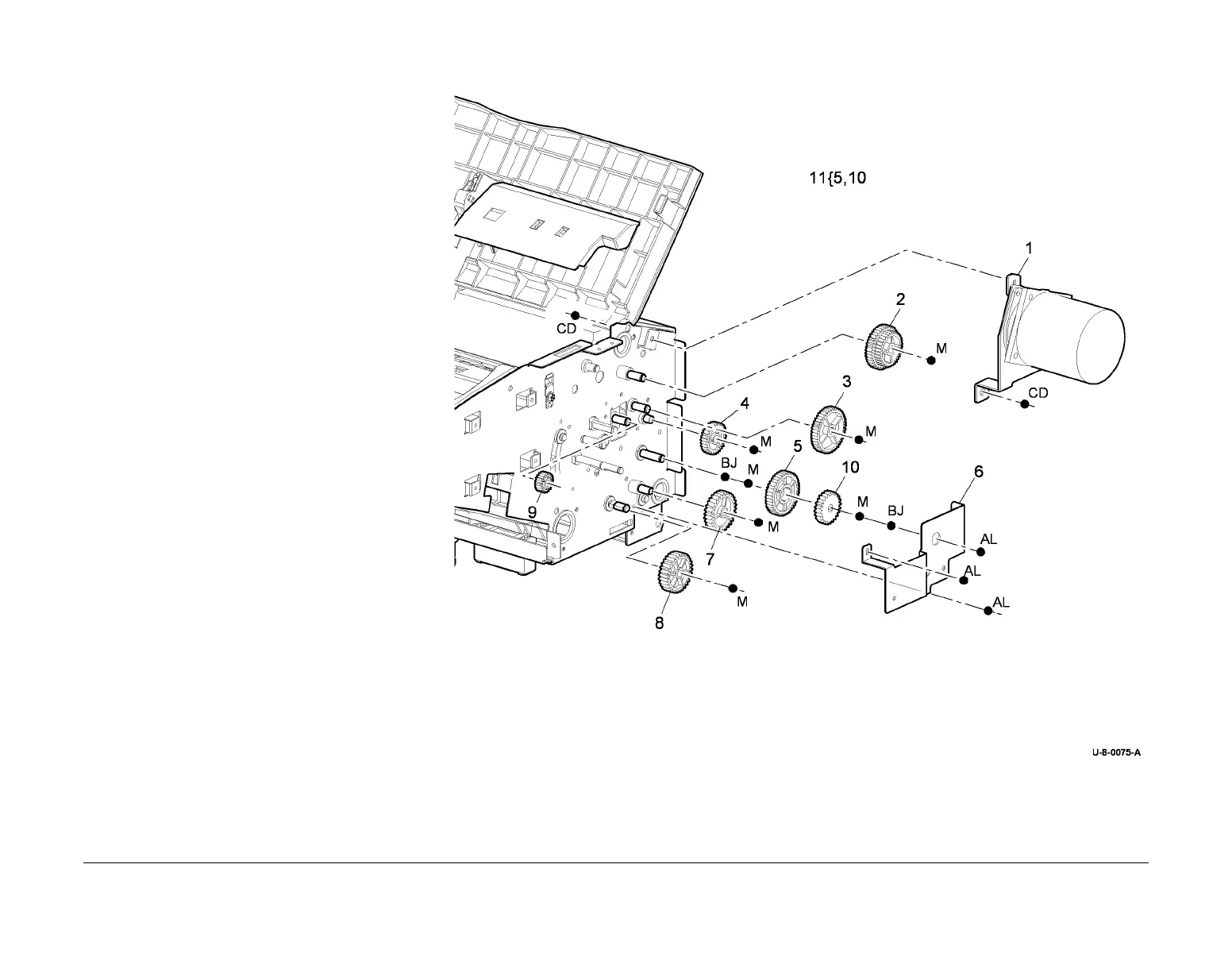

PL 12.315 Inserter Main Drives (3 of 3)
Item Part Description
1 127K61990 Inserter motor (MOT12-261) (REP
12.84-171)
2 – Idler (Not spared)
3 – Driver gear (Not spared)
4 – Idler (Not spared)
5 – Tray down gear (Not spared)
6 – Gear cover bracket (Not spared)
7 – Idler (Not spared)
8 – Bottom shaft drive (Not spared)
9 – Feed roller drive gear (Not spared)
10 – Tray down clutch (Not spared)
11 – Tray down clutch assembly (Not
spared)
