Xerox ColorQube 9303 Series Service Manual

February 2013
5-27
ColorQube® 9303 Family
PL 12.55
Parts Lists

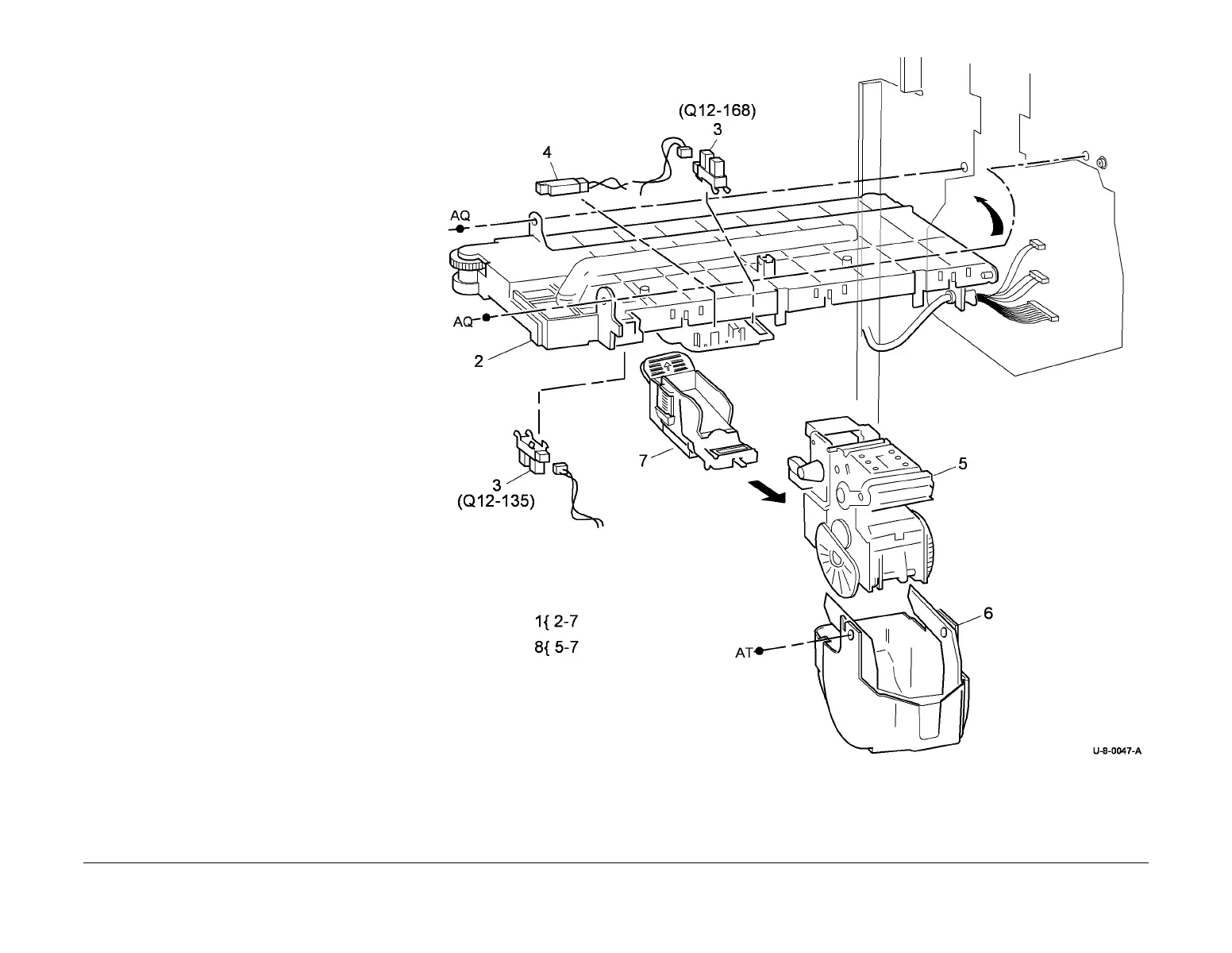

PL 12.55 LCSS Staple Head Unit/
Traverse Assembly
Item Part Description
1 – Stapler traverse assembly (P/O PL
31.11 Item 15) (REP 12.8-110)
2 – Head traverse unit (P/O PL 12.55
Item 1)
3 130E10360 Stapler home sensor (Q12-135),
Stapler index sensor (Q12-168)
4 130E10380 SH1 Paper sensor (Q12-196)
5 029K04690 Staple head unit (REP 12.9-110)
6 – Stapler cover (P/O PL 12.55 Item 1)
7 008R12941 Staple cartridge
8 – Staple head assembly (P/O PL
12.55 Item 1)
