Xerox ColorQube 9303 Series - PL 3.11 Image Processing Module

February 2013
5-6
ColorQube® 9303 Family
PL 3.11
Parts Lists

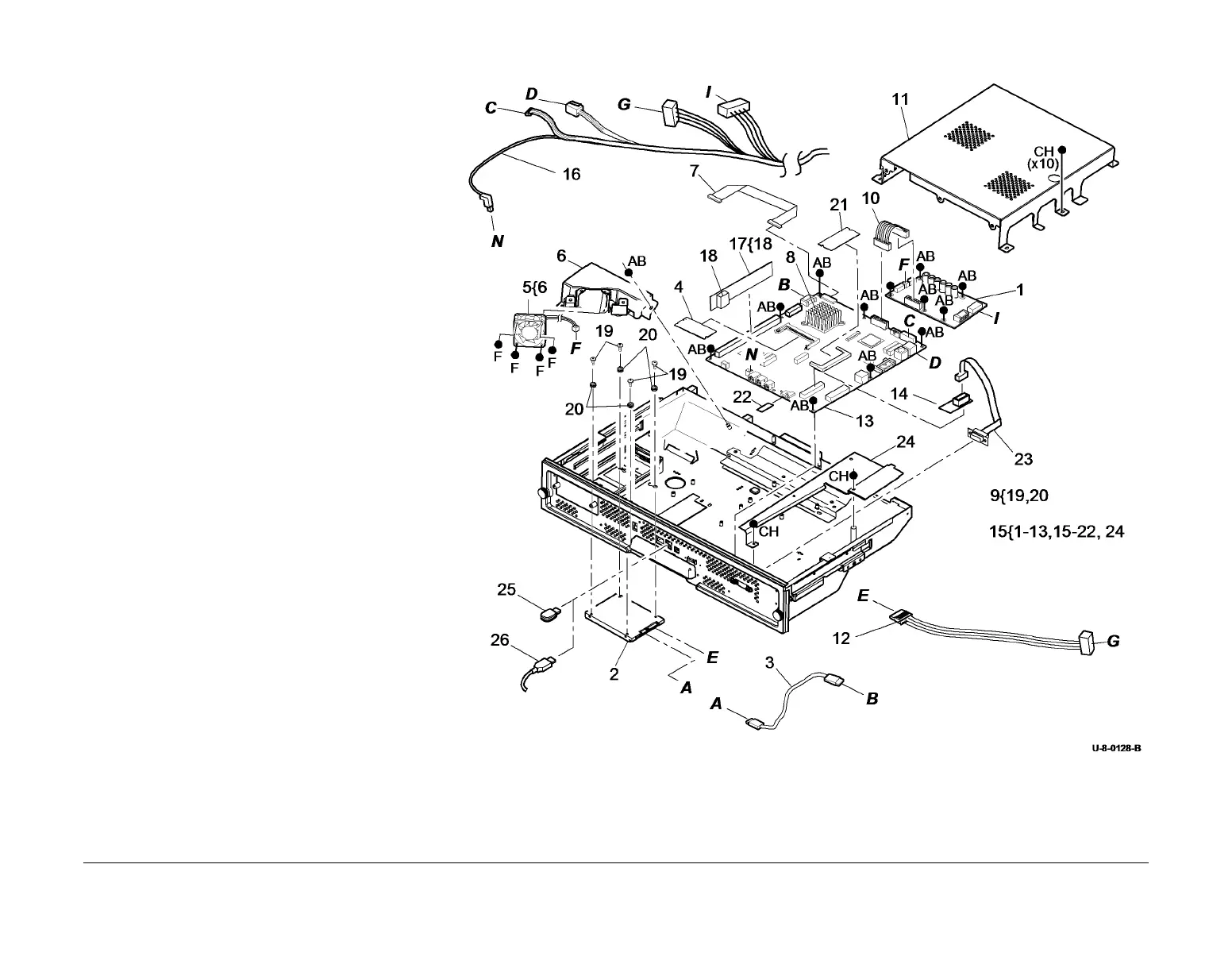

PL 3.11 Image Processing Module
Item Part Description
1 960K66422 Power distribution PWB
2 121E27750 Hard disk drive (REP 3.8)
3 960K66471 Hard disk drive/Single board
controller PWB harness (PJ222)
4 960K66440 System memory PWB (DDR2 1GB)
(PJ10)
5 127K68673 Chassis fan assembly
6 – Inner fan duct (P/O PL 3.11 Item 5)
7 – Fax connector PWB ribbon cable
(PJ49) (Not spared)
8 – Heatsink assembly (Not spared)
9 – Hard disk drive damper kit (P/O PL
3.11 Item 15)
10 – PDB to SBC harness (PJ17) (Not
spared)
11 – PWB Cover (Not spared)
12 – Hard disk drive power harness (PJ3
)(P/O PL 3.11 Item 15)
13 960K66413 Single board controller PWB (REP
3.7)
14 960K27451 Foreign device interface PWB
15 – Single board controller PWB
module (Not spared)
16 012E21850 SBC drawer service loop harness
(PJ1, PJ13, PJ14, PJ20, PJ604)
17 960K66434 NVM module PWB (REP 3.9)
18 105K36240 Battery
19 – Shoulder screw (P/O PL 3.11 Item
9)
20 – Grommet (P/O PL 3.11 Item 9)
21 960K66450 EPC memory PWB (DDR 1GB)
(U98)
22 – Product enablement key (SIM) (P/O
PL 31.12 Item 2)
23 952K00240 Foreign device interface harness
(PJ16)
24 – Harness guide plate (Not spared)
25 – Wireless network adapter (P/O PL
31.11 Item 4)
26 – Extension cable (P/O PL 31.11 Item
4)
