February 2013
4-291
ColorQube® 9303 Family
REP 81.3, REP 81.4
Repairs/Adjustments
5. Remove the bypass module, Figure 4.

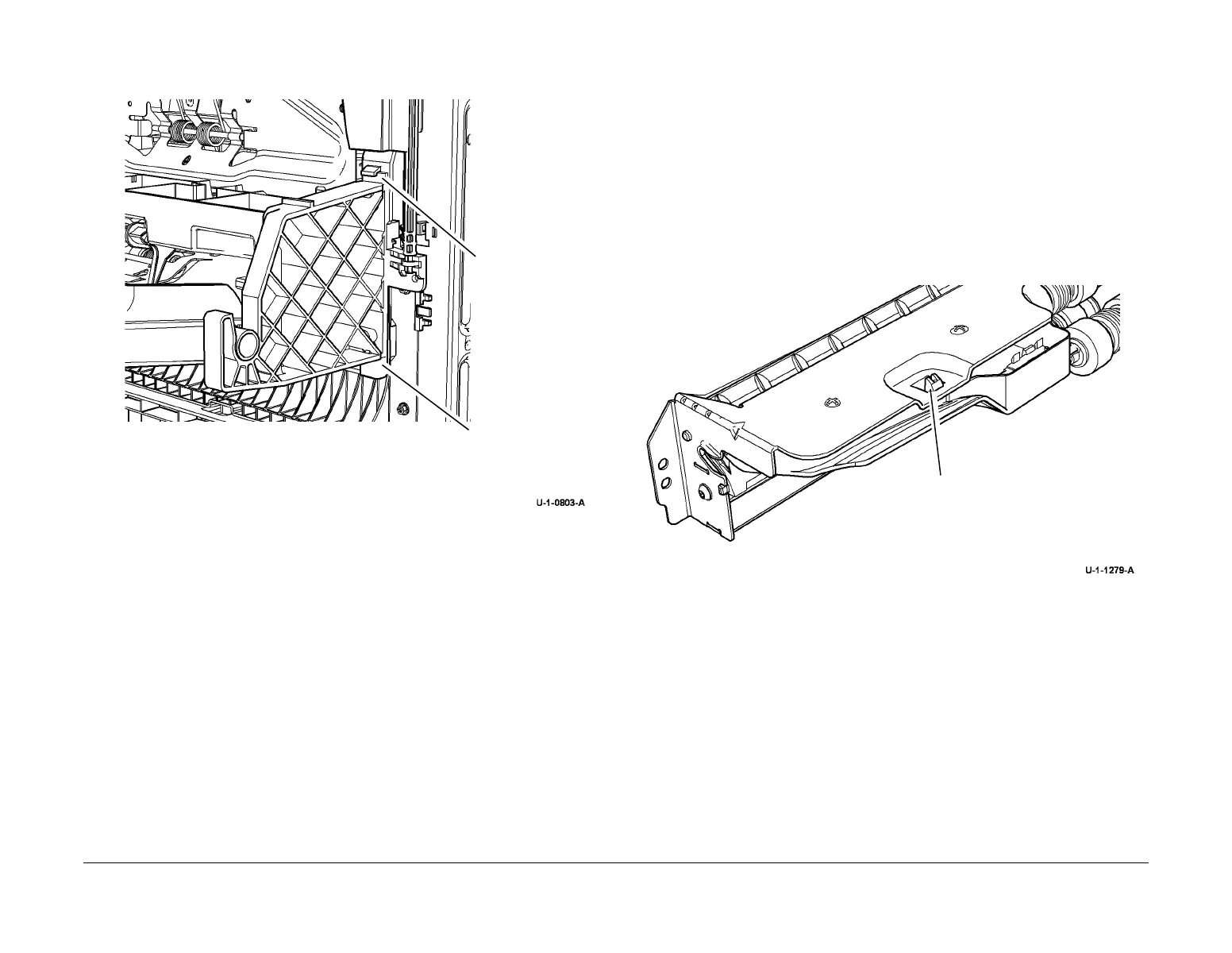

Figure 4 Bypass module
Replacement
Replacement is the reverse of the removal procedure.
REP 81.4 Tray 1 and Tray 2 Feed Rolls
Parts List on PL 81.25, PL 81.26
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove tray 1 or tray 2 as required, REP 71.1.
2. Un-clip and release the guide, Figure 1.
Figure 1 Release guide
2
Unhook the module
from the door then
remove the module.
1
Lift the bottom of the
assembly away from
the door.
Press the clip to release the guide
