Xerox ColorQube 9303 Series - 12.305 Inserter Main Drives (1 of 3)

February 2013
5-56
ColorQube® 9303 Family
PL 12.305
Parts Lists

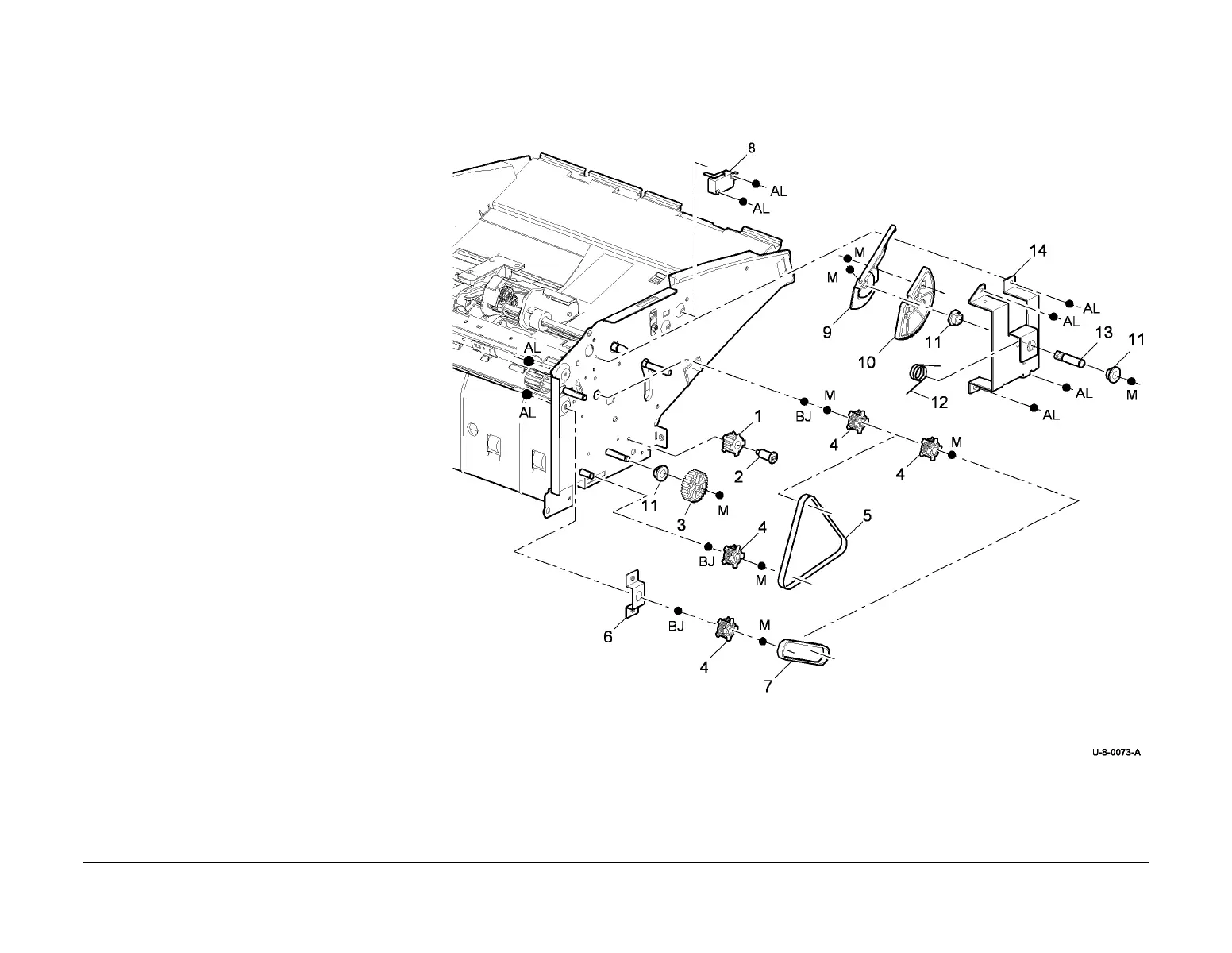

PL 12.305 Inserter Main Drives (1 of 3)
Item Part Description
1 – Idler (Not spared)
2 – Idler pin (Not spared)
3 – Gear (Not spared)
4 – Pulley (Not spared)
5 – Belt (Not spared)
6 – Bracket (Not spared)
7 – Jam drive belt (Not spared)
8 – Inserter top cover interlock switch
(S12-178) (Not spared) (REP
12.87-171)
9 – Loading lever (Not spared)
10 – Loading gear (Not spared)
11 – Bearing (Not spared)
12 – Torsion spring (Not spared)
13 – Loading shaft (Not spared)
14 – Front loading bracket (Not spared)
