February 2013
4-296
ColorQube® 9303 Family
REP 81.9
Repairs/Adjustments
REP 81.9 Tray 3 Feed Sensor
Parts List on PL 81.30
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove tray 3 paper feed assembly, REP 81.2.
2. Un-clip and release the guide, Figure 1.

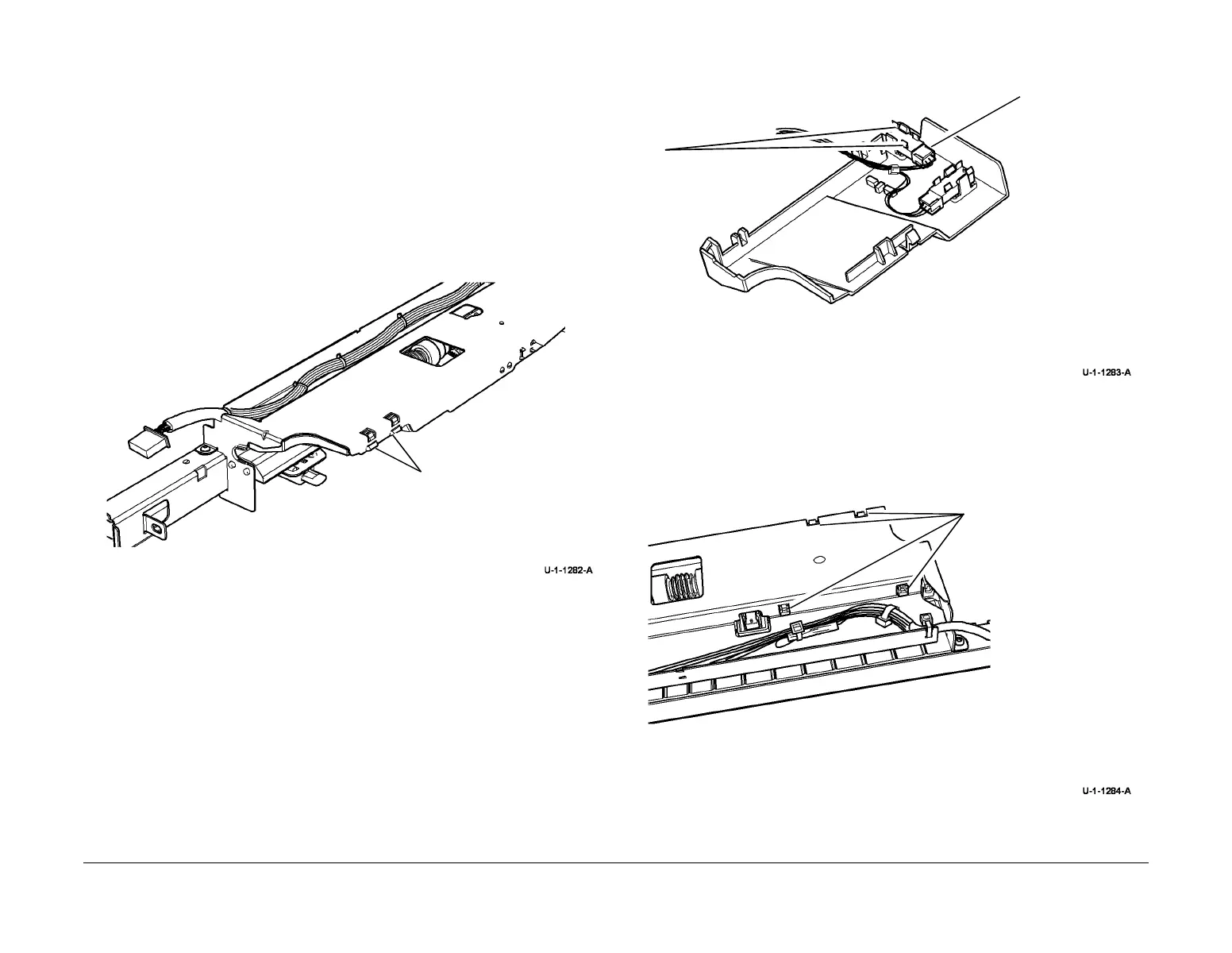

Figure 1 Release guide
3. Remove tray 3 feed sensor, Figure 2.
Figure 2 Remove the sensor
Replacement
1. Replacement is the reverse of the removal procedure.
2. Ensure that the guide is located correctly on the feeder assembly, Figure 3.
Figure 3 Position the cover
1
Press tabs to release
cover
1
Disconnect the
harness.
2
Release the clips and
remove the sensor
1
Ensure location lugs on guide
are positioned correctly.
